Sharp R-890SLM Service Manual page 31

NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
2. "O" APPEARS ON DISPLAY.
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
NOTE: CONDITION OF OVEN
1. DOOR CLOSED.
Service_R-890SLM.indd 31
SCHEMATIC

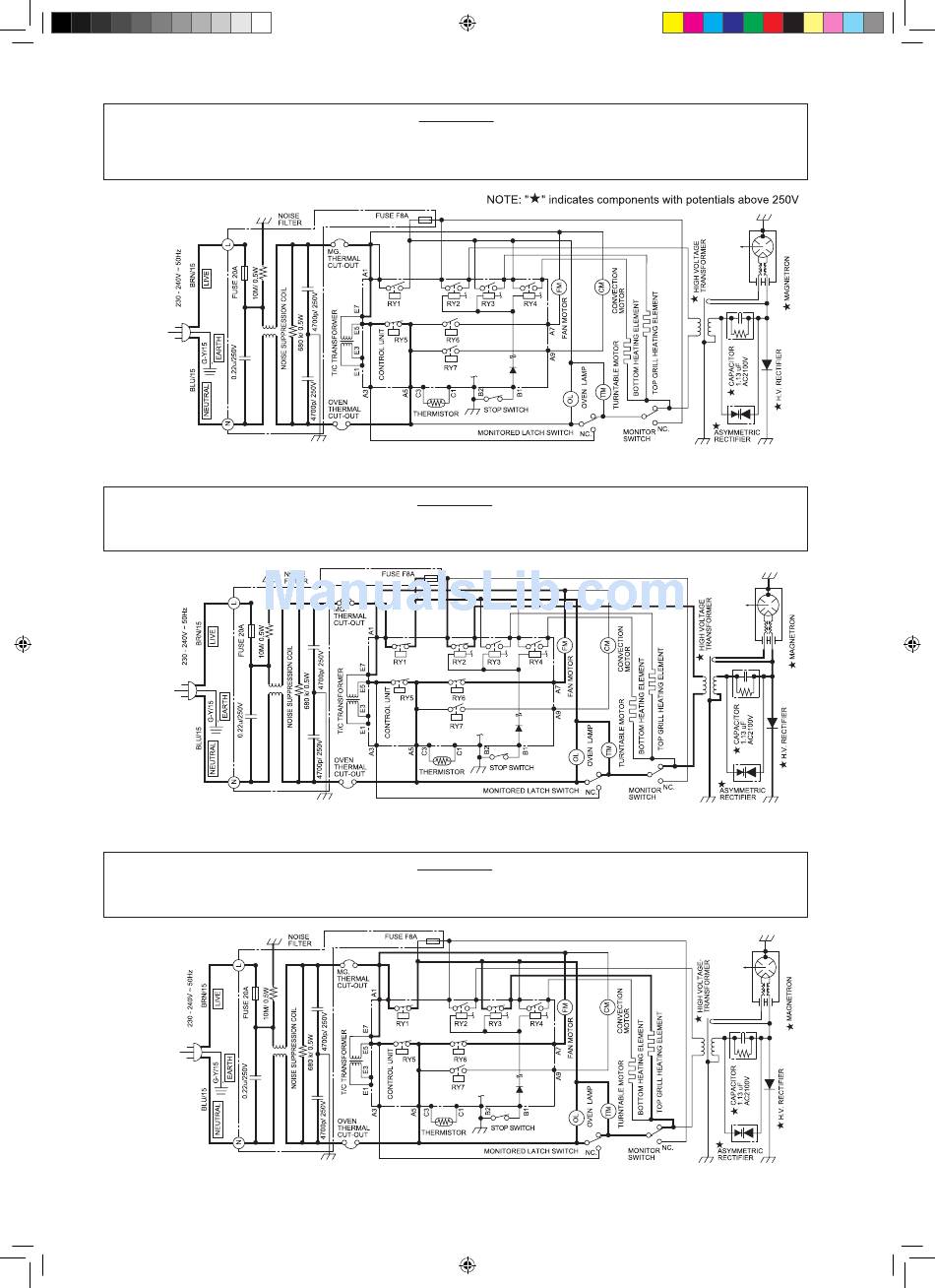

Figure O-1(c) Oven Schematic-OFF Condition after the oven door is closed.
SCHEMATIC
2. MICROWAVE MODE SET.
Figure O-2 Oven Schematic-Microwave cooking Condition
SCHEMATIC
2. TOP GRILL MODE SET. 3. COOKING TIME SET.
Figure O-3(a) Oven Schematic-Grill-1 cooking Condition (TOP GRILL mode)
3. COOKING TIME SET. 4. START BUTTON PRESSED.
4. START BUTTON PRESSED.
