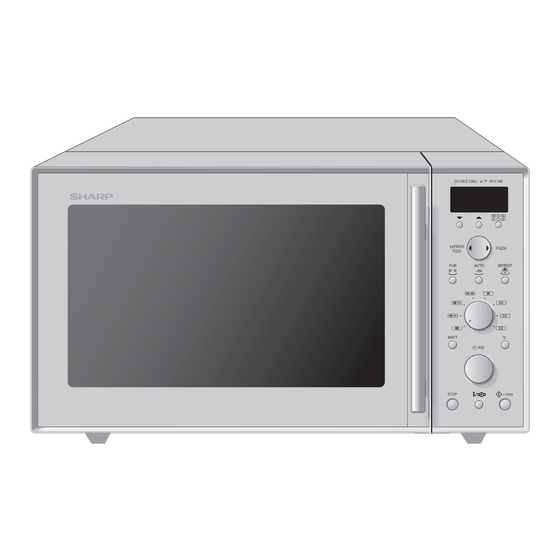

MICROWAVE OVEN WITH
TOP & BOTTOM GRILL AND
CONVECTION
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully
before using your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or
if the oven is modified so that it operates with the door open.
900 W (IEC 60705)
Advertisement
Table of Contents
Related Manuals for Sharp R8-A
Summary of Contents for Sharp R8-A
- Page 1 R-898-A_FC+INTRO EN.qxd 7/16/07 4:39 PM Page A Important R-898-A MICROWAVE OVEN WITH TOP & BOTTOM GRILL AND CONVECTION OPERATION MANUAL WITH COOKBOOK OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.
-
Page 2: Dear Customer
R-898-A_FC+INTRO EN.qxd 7/16/07 4:39 PM Page B Dear Customer, Congratulations on acquiring your new combi-microwave oven with double grill and convection, which from now on will make your kitchen chores considerably easier. You will be pleasantly surprised by the kinds of things you can do with your combined microwave oven. Not only can you use it for rapid defrosting or heating up of food, you can also prepare whole meals. - Page 3 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling.
-
Page 4: Table Of Contents
R-898-A_FC+INTRO EN.qxd 7/16/07 4:39 PM Page 2 CONTENTS Operation manual DEAR CUSTOMER ..........1 RECYCLING INFORMATION . -
Page 5: Oven And Accessories
Always use thick oven gloves when When you order accessories, please mention the removing the food or turntable from the oven following two items: Part name and model name to to prevent burns. your dealer or SHARP authorized service agent. -
Page 6: Control Panel
R-898-A_FC+INTRO EN.qxd 7/16/07 4:39 PM Page 4 CONTROL PANEL Digital display and indicators: 1 BOTTOM GRILL indicator 2 TOP GRILL indicator 3 CLOCK SET indicator 4 LESS/MORE indicator 5 INFORMATION indicator 7 6 5 6 TIMER indicator 7 COOKING IN PROGRESS indicator 8 WEIGHT (kg) indicator 9 MICROWAVE indicator 10 CONVECTION indicator... -
Page 7: Important Safety Instructions
EBR-5000 licensed malfunctioning. Check the following before use: by SHARP must be used. This is available from your a)The door; make sure the door closes properly and dealer. Refer to the frame installation instructions or ensure it is not misaligned or warped. - Page 8 SHARP to do so. If the oven lamp consumption, in order to avoid burns. fails, please consult your dealer or an authorised Use pot holders or oven gloves when removing food SHARP service agent.
-
Page 9: Installation
Keep children away from the door to prevent them burning themselves. 5. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven. ✓... -
Page 10: Before Operation
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 4 BEFORE OPERATION Your oven comes pre-set for Energy Save Mode so NOTE: when you first plug it in nothing will appear on the You can change to Clock Set Mode if you prefer, digital display. see page GB-6 of the operation manual. -
Page 11: Energy Save Mode
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 5 ENERGY SAVE MODE Your oven has two operating modes, Energy Save Mode and Clock Set Mode. The difference between them is that when you are not using the oven, in Energy save Mode nothing will appear on the digital display and in Clock Set Mode the time will be shown. -
Page 12: Setting The Clock
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 6 SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. 1. To set the 12 hour clock, press 2. To set the 24 hour clock, press the INFO/CLOCK button the INFO/CLOCK button 3 twice, as shown: times, as shown:... -
Page 13: Microwave Cooking
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 7 MICROWAVE COOKING Your oven can be programmed for up to 90 minutes. Cooking Time: Increasing unit: (90.00). The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on 5-10 seconds 30 seconds the total length of the cooking (defrosting) time as... -
Page 14: Grill Cooking
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 8 GRILL COOKING Example: Suppose you want to cook cheese on toast for 5 minutes using the top grill only: (Place toast on the high rack.) 1. Rotate the COOKING 2. Enter the desired cooking time 3. -
Page 15: Convection Cooking
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 9 CONVECTION COOKING This microwave oven has 10 pre-set oven temperatures which use a combination of the top and bottom grills. Press CONVECTION button Oven Temp (˚ C) Example 1: To cook with preheating Suppose you want to pre-heat to 180° C and cook for 20 minutes at 180° C. 3. - Page 16 R-898-A_[GB].qxd 7/16/07 4:33 PM Page 10 CONVECTION COOKING Example 2: To cook without preheating Suppose you want to cook at 250° C for 20 minutes. 1. Rotate the COOKING 4. Press the START 2. Enter desired 3. Enter the desired cooking temperature MODE dial to the +1min button once...
-
Page 17: Dual Cooking
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 11 DUAL COOKING Your oven has 3 DUAL cooking modes combining the heat of convection, top grill or bottom grill with the power of the microwave. To select the DUAL cooking mode rotate the COOKING MODE dial to the desired setting, then choose the cooking time. -
Page 18: Dual Cooking
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 12 DUAL COOKING Example 2: Suppose you want to cook for 20 minutes on DUAL 2, using 90 W microwave power and TOP GRILL. 1. Rotate the COOKING 2. Enter desired cooking time by 3. Press the MICROWAVE MODE dial to the rotating the TIME/WEIGHT POWER LEVEL button twice for... -
Page 19: Other Convenient Functions
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 13 OTHER CONVENIENT FUNCTIONS 1. LESS / MORE button. The LESS ( ▼ ) and MORE ( ▲ ) buttons allow you to easily decrease or increase programmed setting times, (for a less well or more well cooked result), used in automatic operations or cooking time while in operation. a) Changing the pre-programmed time setting. -
Page 20: Minute Plus Function
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 14 OTHER CONVENIENT FUNCTIONS 2. MINUTE PLUS function. The START /+1min button allows you to operate the two following functions: a) 1 minute cooking You can cook on your desired cooking mode for 1 minute without entering the cooking time. Example: Suppose you want to cook for 1 minute at 630 W microwave power. - Page 21 R-898-A_[GB].qxd 7/16/07 4:33 PM Page 15 OTHER CONVENIENT FUNCTIONS 3. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING You can check the power level and the actual oven temperatures ie: when pre-heating. TO CHECK THE POWER LEVEL: As long as your finger is To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button.
-
Page 22: Automatic Operation (Express Pizza
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 16 AUTOMATIC OPERATION (EXPRESS PIZZA) The EXPRESS PIZZA function automatically cooks frozen pizza very quickly. The following steps provide additional information on using this feature: 1. In order to prevent the accidental use of the oven, the EXPRESS PIZZA can only be input within 3 minutes after cooking completion, closing the door or pressing the STOP button. - Page 23 R-898-A_[GB].qxd 7/16/07 4:33 PM Page 17 AUTOMATIC OPERATION (PIZZA/FUN MENUS/AUTO COOK/AUTO DEFROST) These automatic functions are designed to work out the correct cooking mode and cooking time to get the best results. You can choose from the 3 PIZZA, 5 FUN MENUS, 5 AUTO COOK and 5 AUTO DEFROST menus. PIZZA button FUN MENUS button AUTO COOK button...
-
Page 24: Automatic Operation (Pizza/Fun Menus/Auto Cook/ Auto Defrost
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 18 AUTOMATIC OPERATION (PIZZA/FUN MENUS/AUTO COOK/AUTO DEFROST) The PIZZA, FUN MENUS, AUTO COOK and AUTO DEFROST buttons offer the possibility to cook foods quickly and easily. Example: Suppose you want to cook Grill Skewers (Kebabs) weighing 0.4 kg using the AUTO COOK button. -
Page 25: Fun Menus Chart
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 19 FUN MENUS CHART BUTTON MENU WEIGHT (Increasing PROCEDURE Unit) / UTENSILS C-1 Fun Menu 0,15 - 0,50 kg (50 g) • Remove the deep frozen baguettes from Frozen (initial temp -18° C) the packaging and place on the Baguettes Directly on the turntable turntable. -
Page 26: Auto Cook Chart
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 20 AUTO COOK CHART BUTTON MENU WEIGHT (Increasing PROCEDURE Unit) / UTENSILS AC-1 Cook 0,2 - 0,8 kg (100 g) • Prepare the grill skewers. Grill Skewers (initial temp 5° C) • Place on the high rack and cook. See recipes on High rack •... -
Page 27: Auto Defrost Chart
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 21 AUTO DEFROST CHART BUTTON MENU WEIGHT (Increasing PROCEDURE Unit) / UTENSILS AD-1 Defrost 0,2 - 1,0 kg (100 g) • Place the food on a plate in the centre of the Steaks and Chops (initial temp -18°... -
Page 28: Recipes For Fun Menus
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 22 RECIPES FOR FUN MENUS VEGETARIAN FOOD (C-4) Procedure: Stuffed Courgettes • Wash the courgettes, cut lengthwise into half, Ingredients: remove the pins, take off the inside and dice it. courgettes of same size Wash the spring onions and cut them into small (total weight: 700-900 g) slices. -
Page 29: Recipes For Auto Cook
R-898-A_[GB].qxd 7/16/07 4:33 PM Page 23 RECIPES FOR AUTO COOK AC-3 GRATINATED FISH FILLET (AC-3) Procedure: Fish Gratin Italian Style • Wash the Fish and dry. Sprinkle with lemon juice Ingredients: 600 g Rose Fish Fillet and salt and grease with the anchovy butter. 250 g Mozarella. -
Page 30: Care And Cleaning
Do not use harsh abrasive cleaners CLEAN THE OVEN AT REGULAR INTERVALS or sharp metal scrapers to clean the oven door glass AND REMOVE ANY FOOD DEPOSITS - Keep since they can scratch the surface, which may result in the oven clean, or the oven could lead to a shattering of the glass. -
Page 31: Service Call Check
3 minutes. After 3 minutes do both GRILL heating elements become red? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address. - Page 32 Umfang der Garantie: Sollte Ihr Mikrowellengerät trotz sorgfältiger Herstellung und Endkontrolle einen Mangel aufweisen, können Sie innerhalb der Garantiezeit, Garantieleistungen gegen Sharp Electronics (Europe) GmbH in Anspruch nehmen. Diese stehen Ihnen zu, wenn ein herstellungsbedingter Material- und/oder Verarbeitungsmangel (nachfolgend „Mangel“) bei dem Mikrowellengerät oder Teilen davon - mit Ausnahme der Garraum-Glühlampe - innerhalb von 24 Monaten auftritt.
