Table of Contents

Advertisement

Quick Links

R-898 English
07/09/2004
10:22

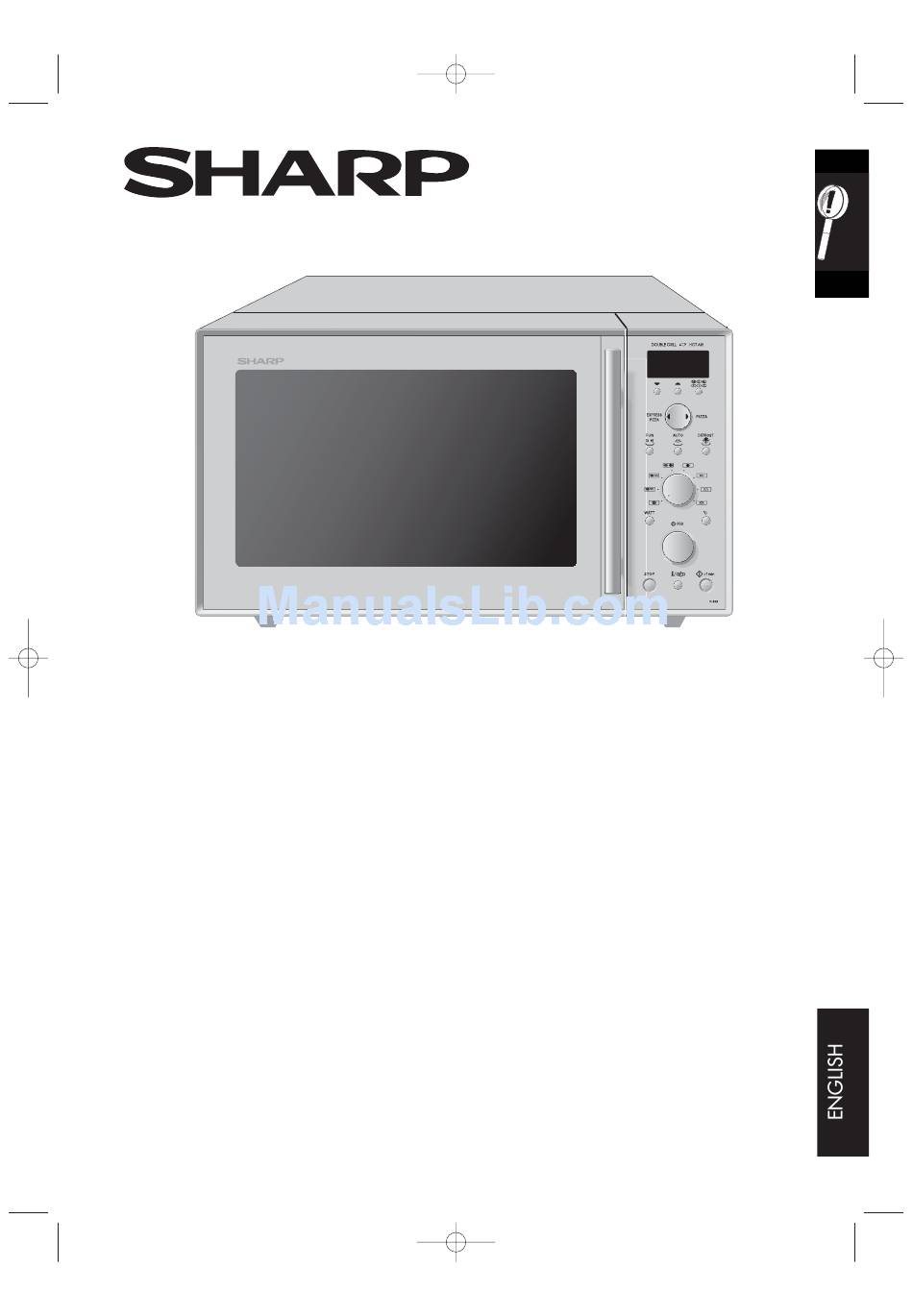

Page A
Important
R-898
MICROWAVE OVEN WITH
TOP & BOTTOM GRILL AND
CONVECTION
OPERATION MANUAL WITH COOKBOOK
OPERATION MANUAL
This operation manual contains important information which you should read carefully
before using your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or
if the oven is modified so that it operates with the door open.
900 W (IEC 60705)
