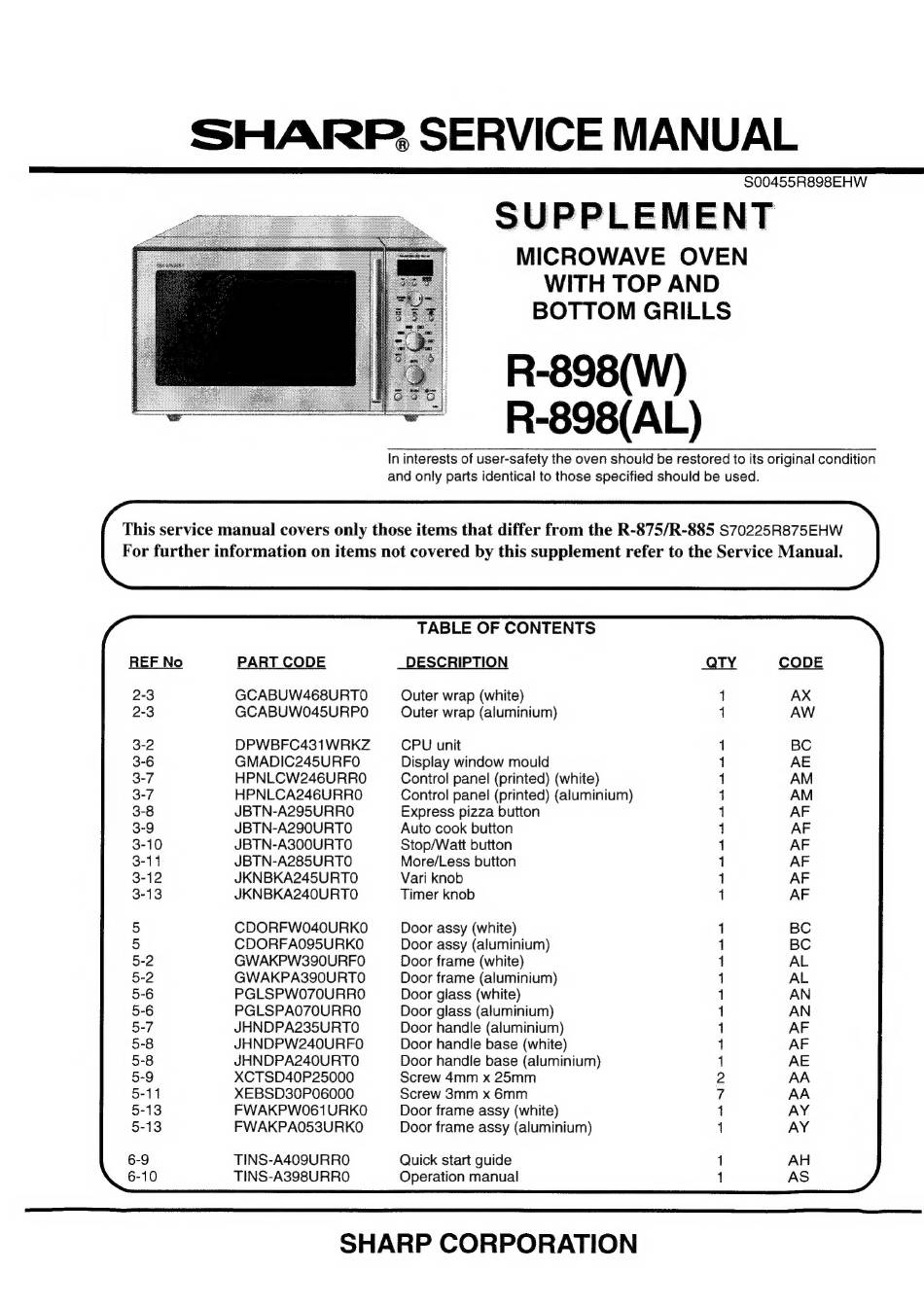

Sharp R-898(W) Service Manual

SHARP, SERVICE MANUAL
S00455R898EHW
SUPPLEMENT
MICROWAVE OVEN
WITH TOP AND
BOTTOM GRILLS
R-898(W)
R-898(AL)
In interests of user-safety the oven should be restored to its original condition
and only parts identical to those specified should be used.
This service manual covers only those items that differ from the R-875/R-885 S70225R875EHW
For further information on items not covered by this supplement refer to the Service Manual.
TABLE OF CONTENTS
PART CODE _DESCRIPTION
GCABUW468URTO Outer wrap (white)
GCABUWO045URP0 Outer wrap (aluminium)
:
mn
WW
DPWBFC431WRKZ CPU unit
GMADIC245URFO Display window mould
HPNLCW246URRO Control panel (printed) (white)
HPNLCA246URRO Control panel (printed) (aluminium)
JBTN-A295URRO Express pizza button
JBTN-A290URTO Auto cook button
JBTN-A300URTO Stop/Watt button
JBTN-A285URTO More/Less button
JKNBKA245URTO Vari knob
JKNBKA240URTO Timer knob OW HWW WOWWWW
aaa A OONNODND
ee ee ee ee ee ee ee
CDORFWO040URKO Door assy (white)
CDORFAO95URKO Door assy (aluminium)
GWAKPW390URFO Door frame (white)
GWAKPA390URTO Door frame (aluminium)
PGLSPW070URRO Door glass (white)
PGLSPAO070URRO Door glass (aluminium)
JHNDPA235URTO Door handle (aluminium)
JHNDPW240URFO Door handle base (white)
JHNDPA240URTO Door handle base (aluminium)
XCTSD40P25000 Screw 4mm x 25mm
XEBSD30P06000 Screw 3mm x 6mm
FWAKPW061URKO Door frame assy (white)
FWAKPA053URKO Door frame assy (aluminium)
MAAAAAAAAaAgRADT
+--+ 00D OND OM MPM
en es Oe be ee en ee Cee Crees Caen Sees Crees Cer
QOw-
TINS-A409URRO Quick start guide
TINS-A398URRO Operation manual
