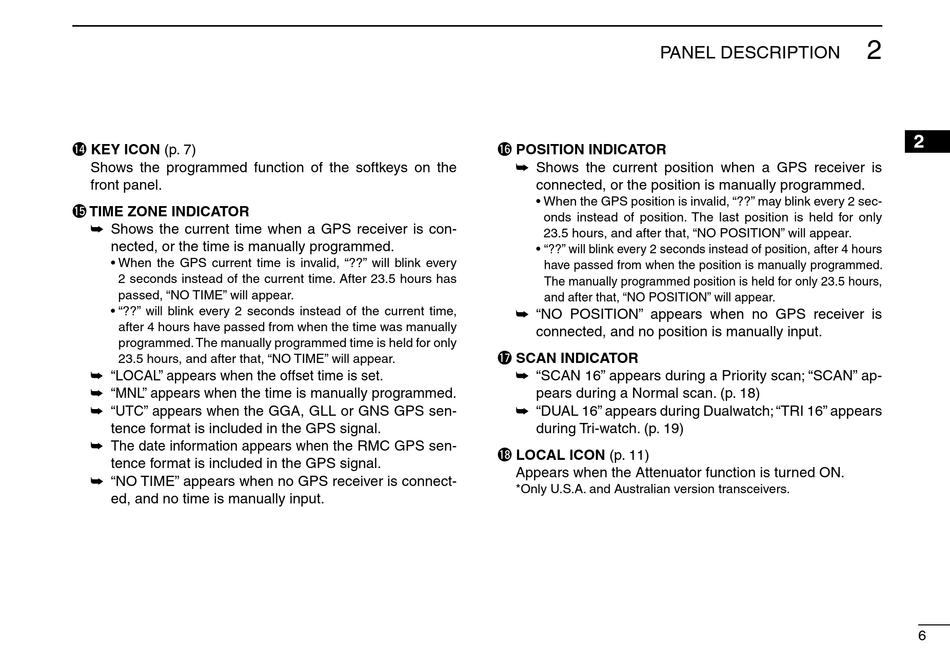

!4 KEY ICON (p. 7)
Shows the programmed function of the softkeys on the
front panel.
!5 TIME ZONE INDICATOR
Shows the current time when a GPS receiver is con-
➥
nected, or the time is manually programmed.
• When the GPS current time is invalid, "??" will blink every
2 seconds instead of the current time. After 23.5 hours has
passed, "NO TIME" will appear.
• "??" will blink every 2 seconds instead of the current time,
after 4 hours have passed from when the time was manually
programmed. The manually programmed time is held for only
23.5 hours, and after that, "NO TIME" will appear.
"LOCAL" appears when the offset time is set.
➥
"MNL" appears when the time is manually programmed.
➥
"UTC" appears when the GGA, GLL or GNS GPS sen-
➥
tence format is included in the GPS signal.
The date information appears when
➥
tence format is included in the GPS signal.
"NO TIME" appears when no GPS receiver is connect-
➥
ed, and no time is manually input.
!6 POSITION INDICATOR
!7 SCAN INDICATOR
the RMC GPS sen-
!8 LOCAL ICON (p. 11)
PANEL DESCRIPTION
➥ Shows the current position when a GPS receiver is
connected, or the position is manually programmed.
• When the GPS position is invalid, "??" may blink every 2 sec-
onds instead of position. The last position is held for only
23.5 hours, and after that, "NO POSITION" will appear.
• "??" will blink every 2 seconds instead of position, after 4 hours
have passed from when the position is manually programmed.
The manually programmed position is held for only 23.5 hours,
and after that, "NO POSITION" will appear.
➥ "NO POSITION" appears when no GPS receiver is
connected, and no position is manually input.
"SCAN 16" appears during a Priority scan; "SCAN" ap-
➥
pears during a Normal scan. (p. 18)
"DUAL 16" appears during Dualwatch; "TRI 16" appears
➥
during Tri-watch. (p. 19)
Appears when the Attenuator function is turned ON.
*Only U.S.A. and Australian version transceivers.
