Icom IC-M423 Instruction Manual page 12

2

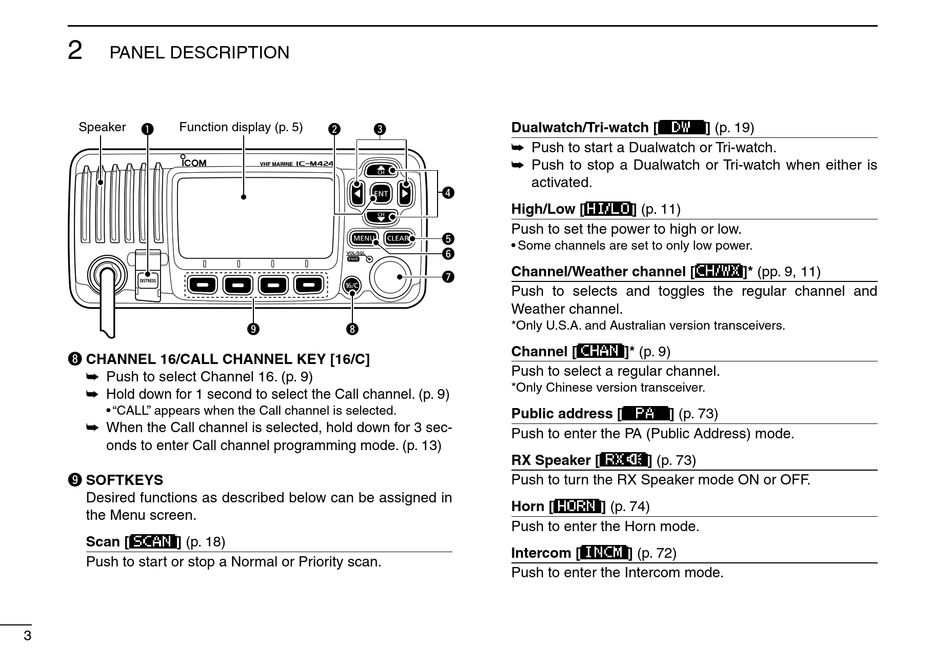

PANEL DESCRIPTION
Speaker Function display (p. 5)
q
i CHANNEL 16/CALL CHANNEL KEY [16/C]
Push to select Channel 16. (p. 9)
➥
Hold down for 1 second to select the Call channel. (p.
➥
• "CALL" appears when the Call channel is selected.
➥ When the Call channel is selected, hold down for 3 sec-
onds to enter Call channel programming mode. (p. 13)
o SOFTKEYS
Desired functions as described below can be assigned in
the Menu screen.
Scan [ ] (p. 18)
Push to start or stop a Normal or Priority scan.
3
w e
o i
Dualwatch/Tri-watch [
Push to start a Dualwatch or Tri-watch.
➥
Push to stop a Dualwatch or Tri-watch when either is
➥
activated.
r
High/Low [
Push to set the power to high or low.
t
• Some channels are set to only low power.
y
Channel/Weather channel [
u
Push to selects and toggles the regular channel and
Weather channel.
*Only U.S.A. and Australian version transceivers.
Channel [
Push to select a regular channel.
*Only Chinese version transceiver.
9)
Public address [
Push to enter the PA (Public Address) mode.
RX Speaker [
Push to turn the RX Speaker mode ON or OFF.
Horn [ ] (p. 74)
Push to enter the Horn mode.
Intercom [
Push to enter the Intercom mode.
] (p. 19)
] (p. 11)
]* (pp. 9, 11)
]* (p. 9)
] (p. 73)
] (p. 73)
] (p. 72)
