Fuser Cover

1. Remove the fuser assembly.

2. Note the thermistor cable routing and disconnect the cable.

3. Warning: Hold the left lamp bracket and carefully remove the

two mounting screws. There is pressure against the other end

of the lamp therefore care must be used when removing the

lamp from the fuser. Grip the lamp by the ceramic end piece and

remove it from the fuser assembly. Be careful not to touch the

glass as skin oils and acids can reduce the life of the lamp.

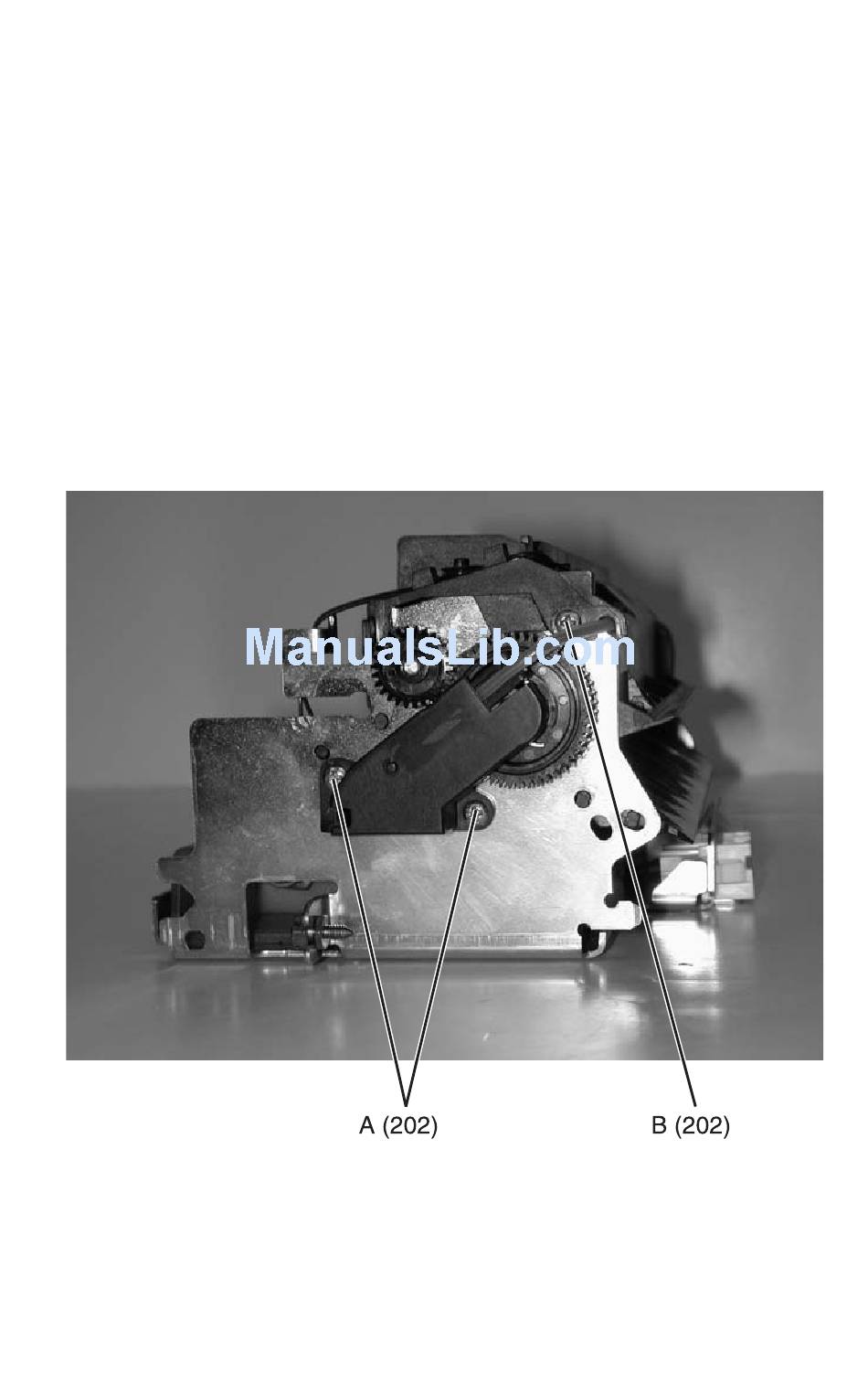

4. Remove the right lamp bracket mounting screws (A).

5. Remove the left and right fuser cover mounting screws (B) and

lift the cover from the fuser assembly.

1. Remove the fuser assembly.

2. Remove the fuser cover assembly.

3. Remove the fuser detack housing assembly.

Repair Information
