Summary of Contents for Nady Audio SPM-4250

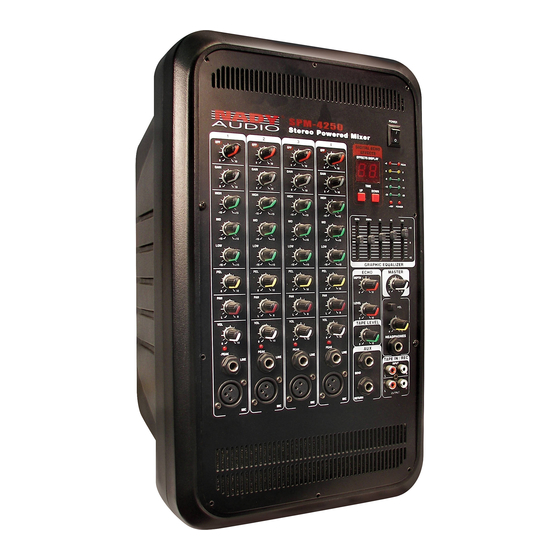

- Page 1 O W N E R ’ S M A N U A L SPM-4250 4-Channel Stereo Powered Mixer...
-
Page 2: Table Of Contents
This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new SPM-4250 has superior performance and greater flexibility than any other stereo powered mixer in its price range. Please read this manual carefully to get the most out of your new unit. -
Page 3: Warning
WARNING An equilateral triangle enclosing a lightning flash/arrowhead symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure which may be of sufficient magnitude to constitute a risk of electric shock. ATTENTION RISQUE dE CHOC ELECTRIQUE NE PAS OUVRIR An equilateral triangle enclosing an exclamation point is intended to alert the user to the presence of important operating and service instructions in... -
Page 4: Installation
Parts of the unit can become very warm during use. This is normal during operation. Care should be taken to ensure that there is enough space around the unit for cooling. Also, do not place the SPM-4250 on high temperature devices such as power amplifiers, etc., or the unit may overheat in operation. -
Page 5: Front Panel Controls & Connections
FRONT CONTROLS ANd CONNECTIONS CHANNEL SECTION (1) MIC INPUT This electronically balanced XLR input is designed to accept signals from any balanced or unbalanced low impedance (Low Z) microphone. The XLR jack is configured for: Pin1 = ground, Pin2 = positive (+), Pin3 = negative (-). - Page 6 FRONT CONTROLS ANd CONNECTIONS sound, add warmth to vocals, or extra punch to bass, drums and synths; the MID control can be used to define the midrange or bring out the vocals; and adjusting the HIGH (10) control can provide a crisp sounding high end. Another very important, yet often overlooked technique is to use the EQ to subtract from the mix.
-
Page 7: Master Section
This input can be used to return the effected signal into Lights to indicate when 48V phantom power is turned on. the SPM-4250 or it can be used as an auxiliary input for line level devices. The input signal can be adjusted using... -
Page 8: Rear Panel Controls & Connections
REAR CONTROLS ANd CONNECTIONS (25) (29) (28) (27) (26) (25) PHANTOM POWER ON/OFF SWITCH When this switch is depressed, +48V of phantom power will be supplied to the XLR mic inputs. (26) SPEAKER OUTPUT JACKS The left and right 1/4” speaker outputs can deliver up to 125W RMS per side to 4Ω loads. (27) POWER CONNECTOR The IEC socket is used to connect the power cord to an AC power source. -
Page 9: Connection
CONNECTIONS This NADY AUDIO mixer uses 4 different types of audio connectors for the various input/output connections: (1) XLR balanced; (2) 1/4” TRS phone jacks for balanced, unbalanced, stereo, or in/out inserts; (3) 1/4” TS unbalanced; (4) RCA pin unbalanced Figures 1. -
Page 10: Specifications
SPECIFICATIONS 1. INPUT SECTION Input Connector Input Impedance Max Level MONO CH MIC XLR BALANCED 3.5K Ω -15dBv MONO CH LINE 1/4” TRS BALANCED 30KΩ +11dBv AUX RETURNS 1/4” TS BALANCED 15KΩ +10dBv TAPE IN RCA JACKS 15KΩ +10dBv 2. OUTPUT SECTION Output Connector Output Impedance... -
Page 11: Notes
ONE YEAR LIMITED WARRANTY Nady Systems, Inc. warrants to the original consumer purchaser that the unit is free from any defects in material or workmanship for a period of one year from the date of original retail purchase. If any such defect is discovered within the warranty period, Nady Systems, Inc. - Page 12 SERVICE FOR YOUR NAdY AUdIO PROdUCT In the U.S. If you are experiencing operational problems with your system, please refer to the Support page at www. nady.com for assistance. Should your wireless system require service, please contact the Nady Service Department at (510) 652-2411 for a Return Authorization (R/A) Number and service quote (if out of warranty).
