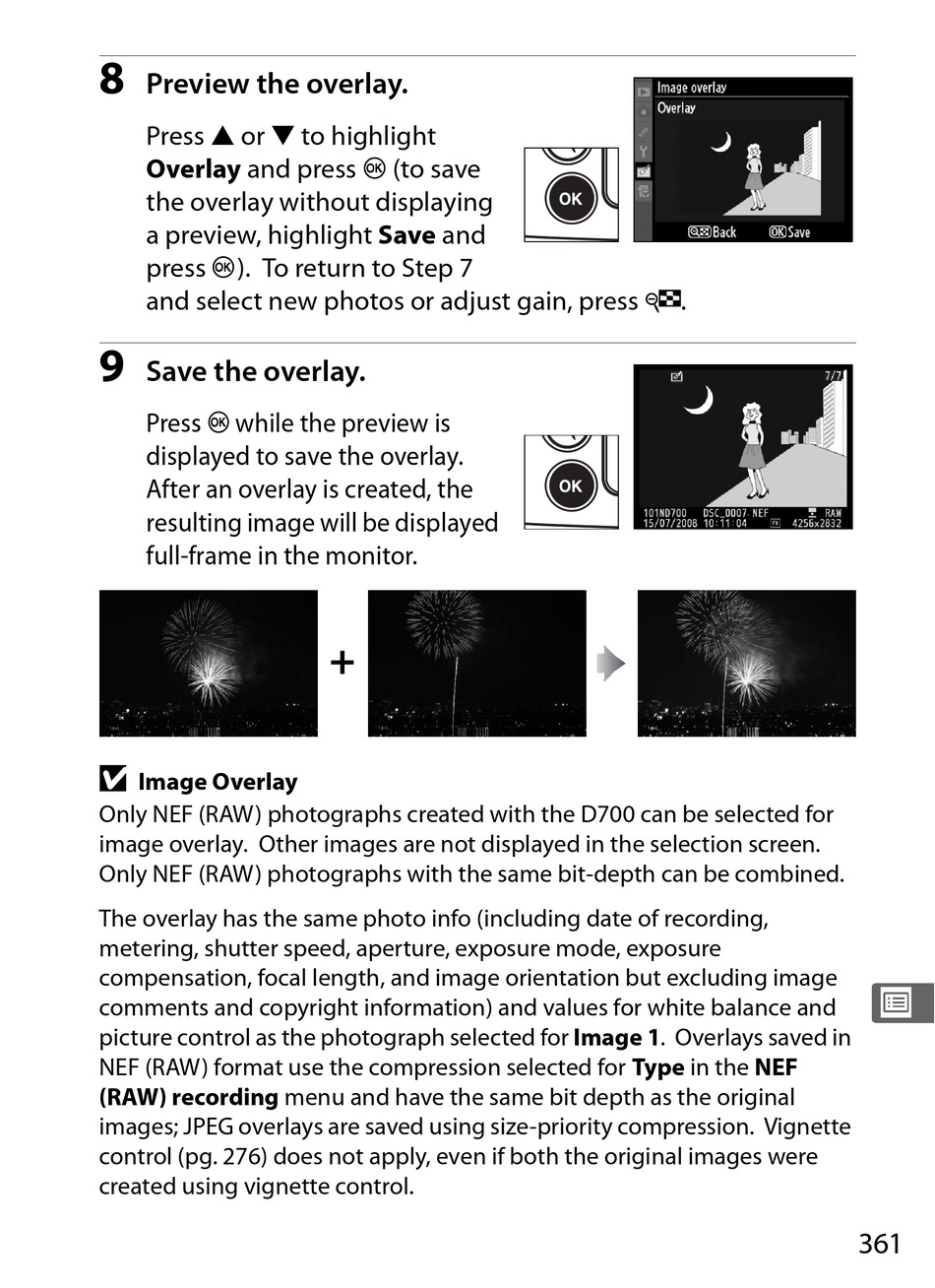

Nikon D700 User Manual page 387

8
Preview the overlay.
Press 1 or 3 to highlight
Overlay and press J (to save
the overlay without displaying
a preview, highlight Save and
press J). To return to Step 7
and select new photos or adjust gain, press W.
9
Save the overlay.
Press J while the preview is
displayed to save the overlay.
After an overlay is created, the
resulting image will be displayed
full-frame in the monitor.
D
Image Overlay
Only NEF (RAW) photographs created with the D700 can be selected for
image overlay. Other images are not displayed in the selection screen.
Only NEF (RAW) photographs with the same bit-depth can be combined.
The overlay has the same photo info (including date of recording,
metering, shutter speed, aperture, exposure mode, exposure
compensation, focal length, and image orientation but excluding image
comments and copyright information) and values for white balance and
picture control as the photograph selected for Image 1. Overlays saved in
NEF (RAW) format use the compression selected for Type in the NEF
(RAW) recording menu and have the same bit depth as the original
images; JPEG overlays are saved using size-priority compression. Vignette
control (pg. 276) does not apply, even if both the original images were
created using vignette control.
+
U
361
