TP-Link Archer C5 AC1200 User Manual page 80

Server Name - The name of this Media Server.

Server Status - Indicates the Media Server's current status, started or stopped. You can

click the Start button to start the Media Server and click the Stop button to stop it.
Name - The display name of this folder.

File System - The file system type on the partition can be FAT32 or NTFS.

Folder - The real full path of the specified folder.

Delete - You can delete the share folder by click Delete.

To set up your media server, please follow the instructions below:
1. Plug an external USB hard disk drive or USB flash drive into this router, and then the screen
will appear as shown in Figure 4-58.
2. Click the Start button to start the media server, and then the screen will appear as shown in
Figure 4-59.
Archer C5 AC1200 Wireless Dual Band Gigabit Router

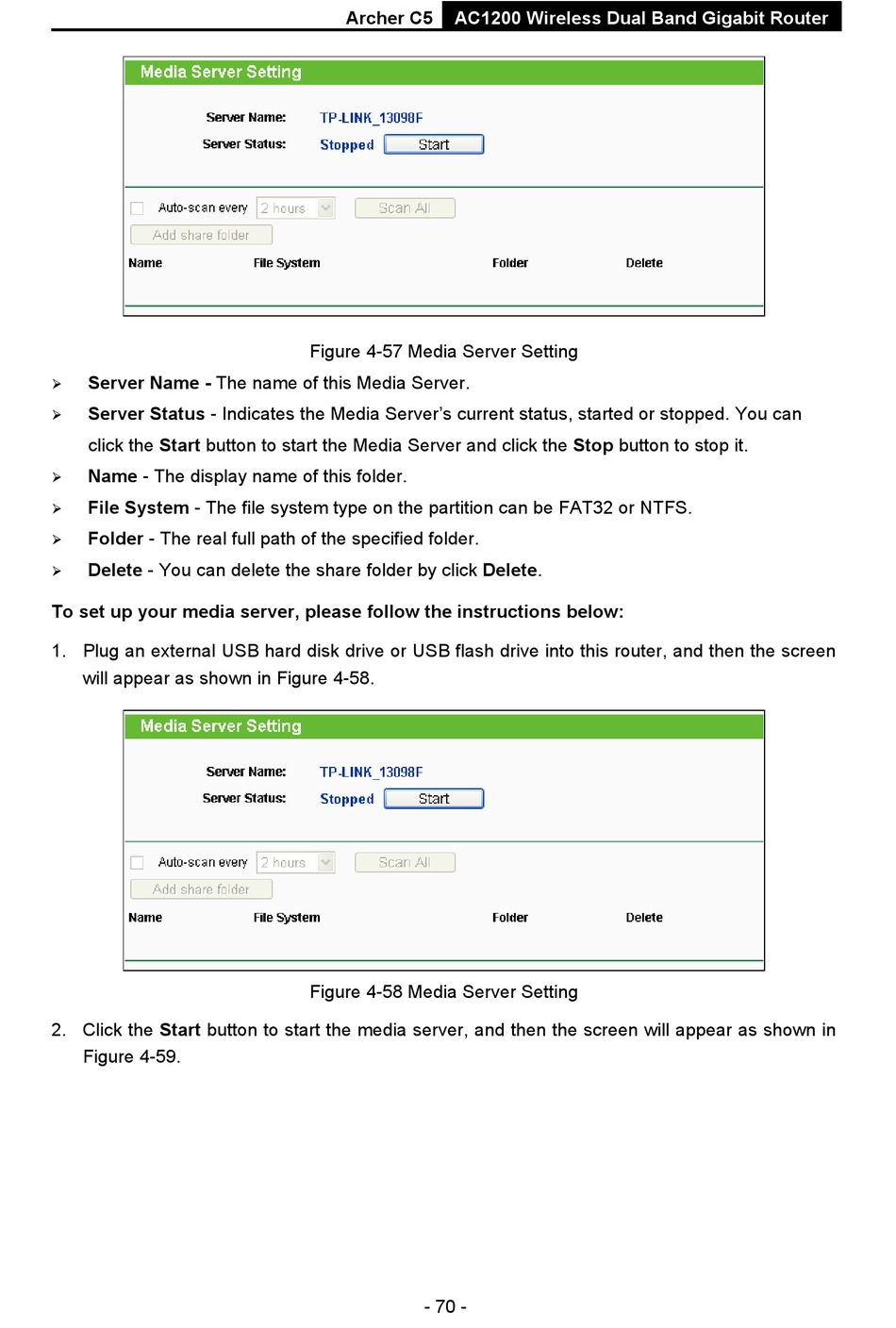

Figure 4-57 Media Server Setting
Figure 4-58 Media Server Setting
- 70 -
