Archer C5 AC1200 Wireless Dual Band Gigabit Router

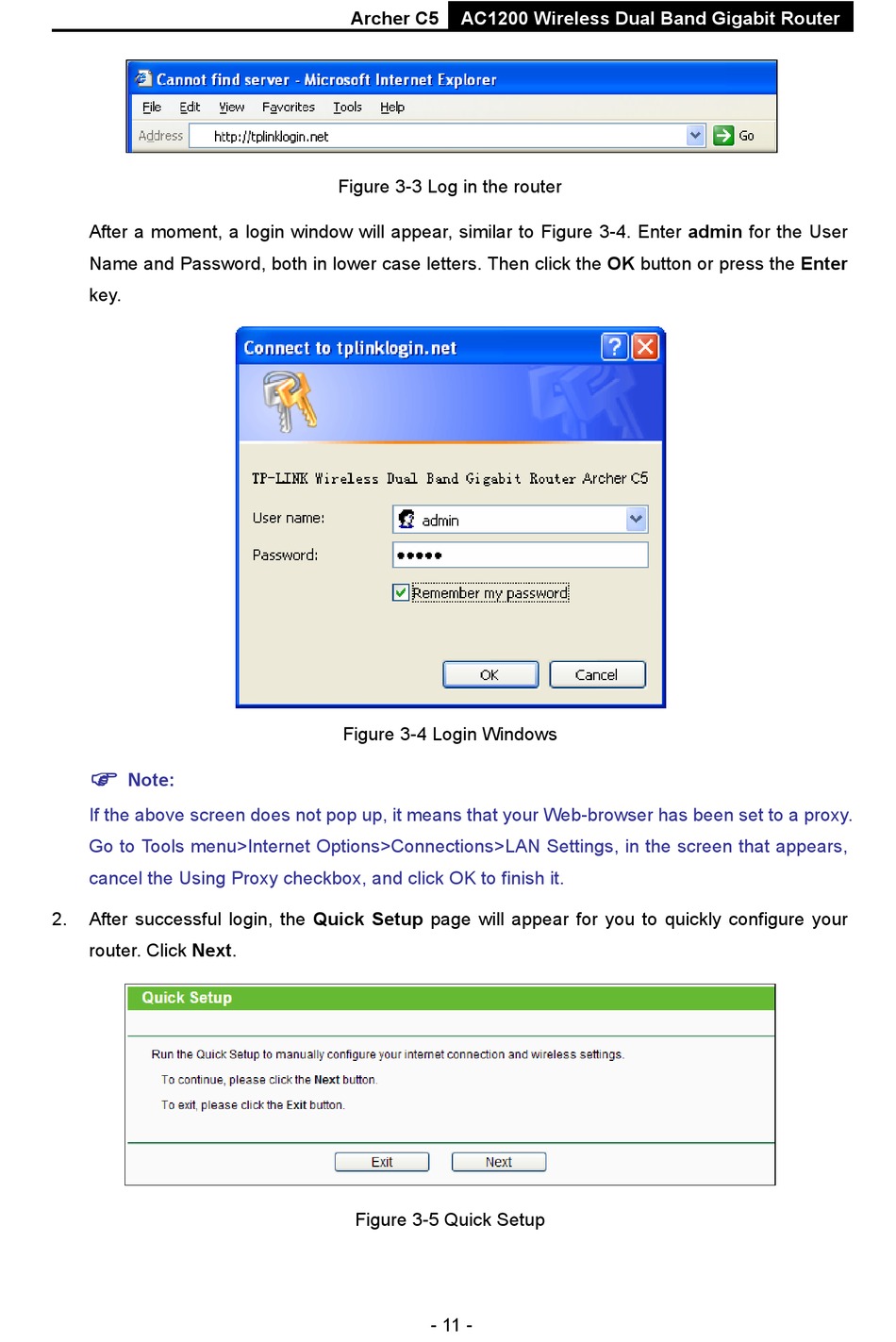

Figure 3-3 Log in the router
After a moment, a login window will appear, similar to Figure 3-4. Enter admin for the User
Name and Password, both in lower case letters. Then click the OK button or press the Enter
key.
Figure 3-4 Login Windows

Note:
If the above screen does not pop up, it means that your Web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
2. After successful login, the Quick Setup page will appear for you to quickly configure your
router. Click Next.
Figure 3-5 Quick Setup
- 11 -
