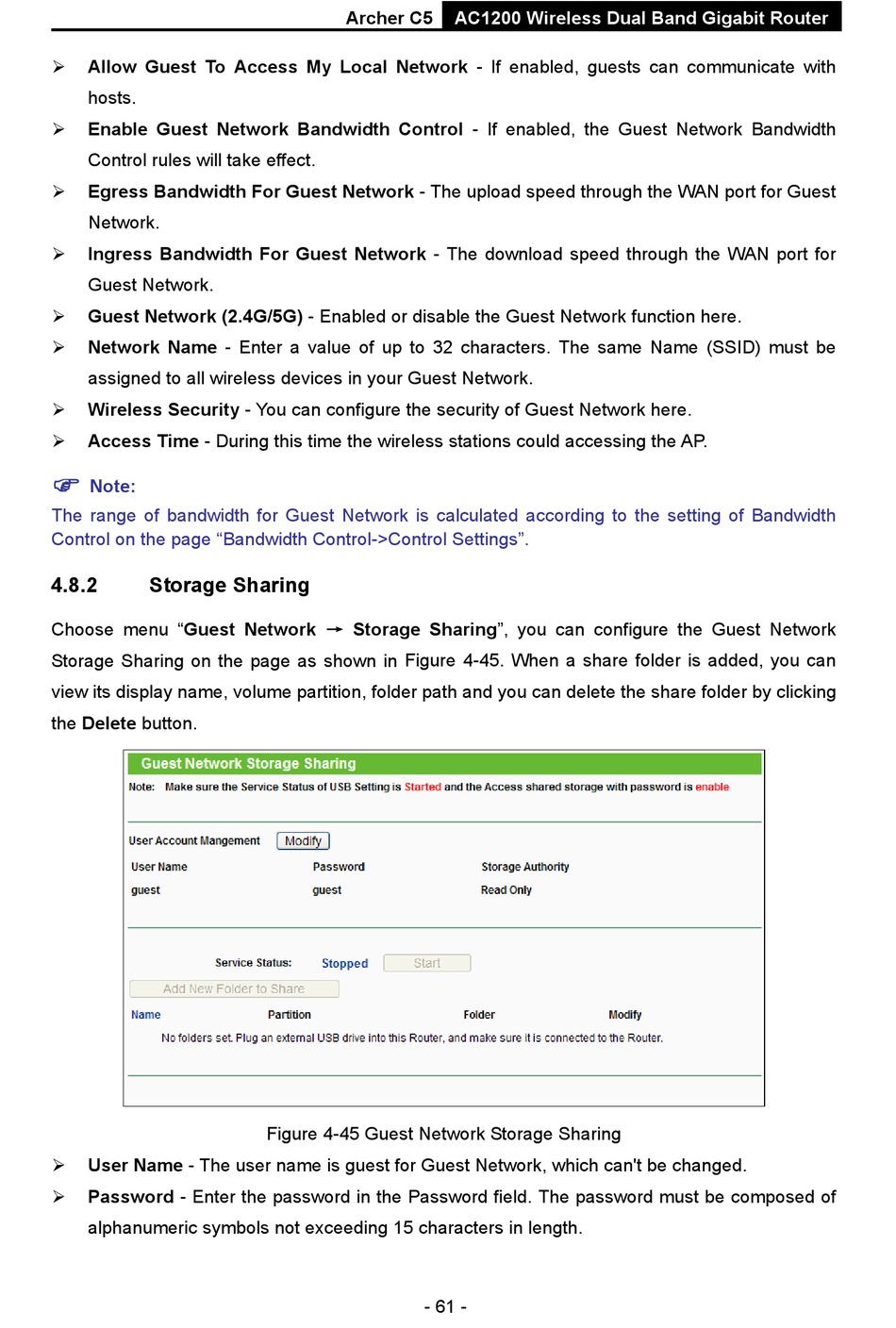

Storage Sharing - TP-Link Archer C5 AC1200 User Manual

Allow Guest To Access My Local Network - If enabled, guests can communicate with

hosts.
Enable Guest Network Bandwidth Control - If enabled, the Guest Network Bandwidth

Control rules will take effect.
Egress Bandwidth For Guest Network - The upload speed through the WAN port for Guest

Network.
Ingress Bandwidth For Guest Network - The download speed through the WAN port for

Guest Network.
Guest Network (2.4G/5G) - Enabled or disable the Guest Network function here.

Network Name - Enter a value of up to 32 characters. The same Name (SSID) must be

assigned to all wireless devices in your Guest Network.
Wireless Security - You can configure the security of Guest Network here.

Access Time - During this time the wireless stations could accessing the AP.


Note:
The range of bandwidth for Guest Network is calculated according to the setting of Bandwidth
Control on the page "Bandwidth Control->Control Settings".
4.8.2

Storage Sharing

Choose menu "Guest Network → Storage Sharing", you can configure the Guest Network
Storage Sharing on the page as shown in Figure 4-45. When a share folder is added, you can
view its display name, volume partition, folder path and you can delete the share folder by clicking
the Delete button.
User Name - The user name is guest for Guest Network, which can't be changed.

Password - Enter the password in the Password field. The password must be composed of

alphanumeric symbols not exceeding 15 characters in length.
Archer C5
Figure 4-45 Guest Network Storage Sharing
