SECTION 2
• FRONT UNIT
• MAIN UNIT
TX POWER AMP
(Q7: RD07MVS2-T112)
DRIVE AMP
(Q8: RD01MUS1-T113)

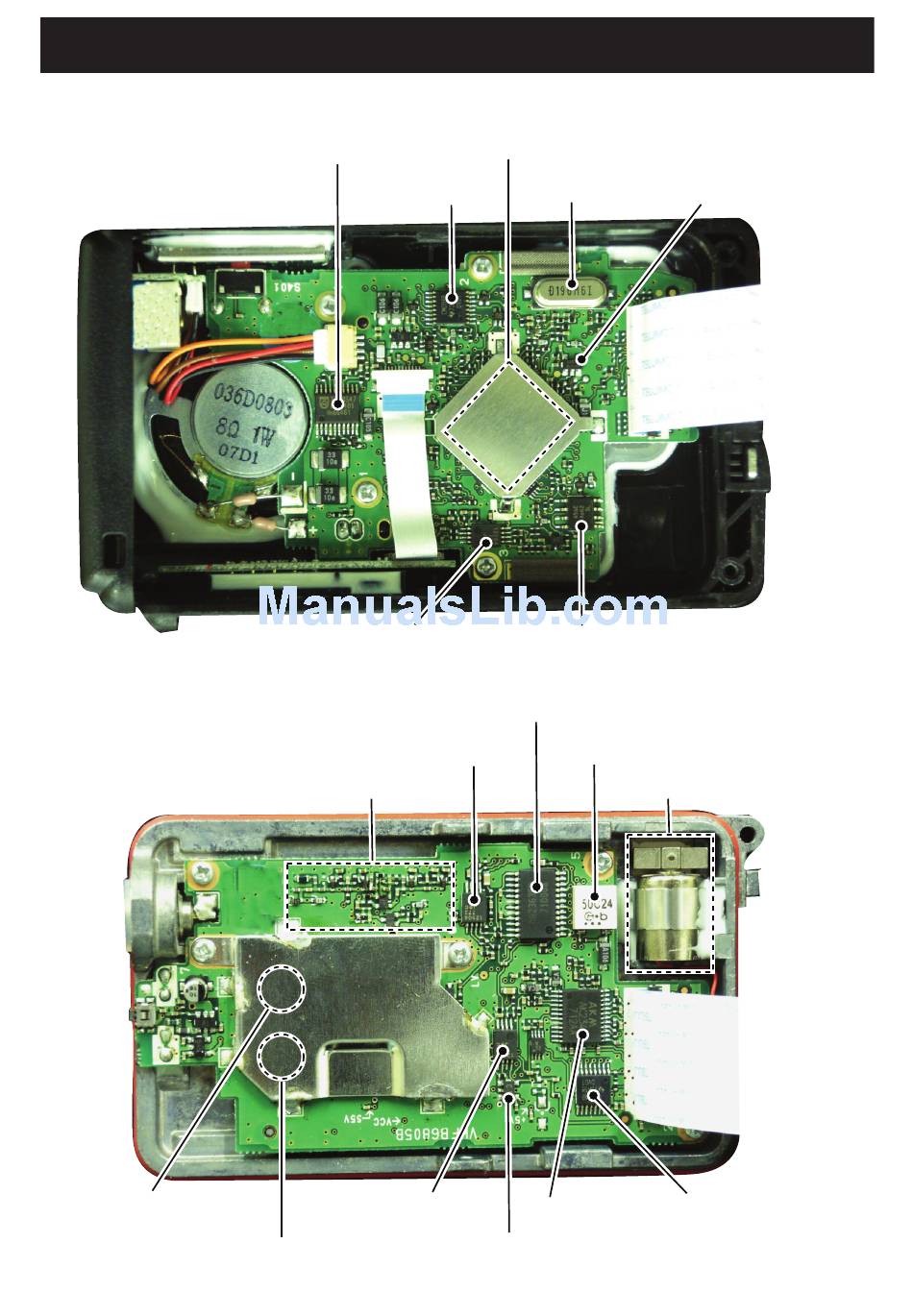

INSIDE VIEWS

AF POWER AMP
(IC405: TDA8547TS)
EXPANDER
(IC410: CD4094BPWR)
MIC AMP
(IC407: NJM12904V)
AF BUFFER, AF MIXER
(IC5: NJM12904V)
RF CIRCUITS
AF BUFFER
(IC6: NJM12904V)
2 - 1
CPU
(IC401: HD64F2268TFV)
CPU CLOCK
(X401: CR-764)
EEPROM
(IC409: HN58X24256FPIE)
DAC
(IC6: M62363FP-650C)
DISCRIMINATOR
(X1: CDBKB450KCAY24)
VIBRATION MOTOR
(MF1: QX10A(R5.5X3))
BASE BAND IC
(IC10: AK2346)
LOCK VOLTAGE SWITCH
(IC17: TC4S66F)
RESET IC
(IC408: BD5242G)
EXPANDER
(IC12: CD4094BPWR)
