Icom IC-F50V Service Manual page 22

5-3 TRANSMIT ADJUSTMENT (continued)
Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard.
ADJUSTMENT
[ADJUST ITEM]
MODULATION 1 • Channel
• No audio signals are applied to the JIG cable.
BALANCE
• Transmitting
(Narrow)
[BAL(Narrow])
(Middle)* 2 • Channel
• Transmitting
[BAL(Mid])
(Wide) 3 • Channel
• Transmitting
[BAL(Wide])
*; [EUR], [EUR-01], [EUR-02] only
OSCILLOSCOPE
(DC to 10 kHz)
ADJUSTMENT CONDITION
: 1-9
: 1-10
: 1-11
MODULATION ANALYZER
(0.1–300 MHz)
(Detect output)
OPERATION

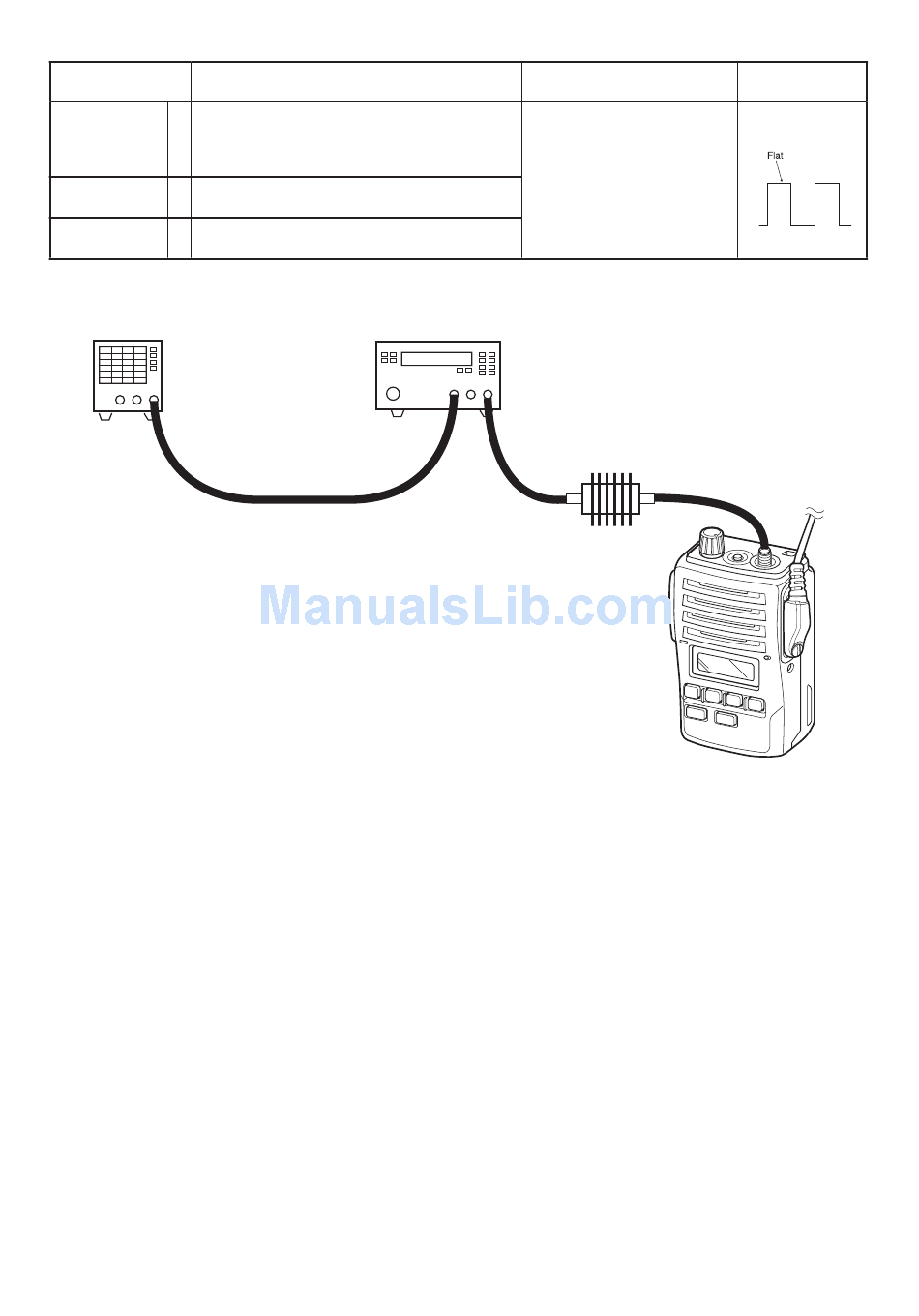

Connect an Oscilloscope to the
detect output terminal of the
Modulation Analyzer.
SETTING;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2
ATTENUATOR
(30 dB/10 W)
5 - 8
VALUE
Set to the square
wave form
