5-4 RECEIVE ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the specifi ed value using [←] / [→] keys on the connected PC's keyboard.
ADJUSTMENT
[ADJUST ITEM]
RECEIVE 1 • Channel

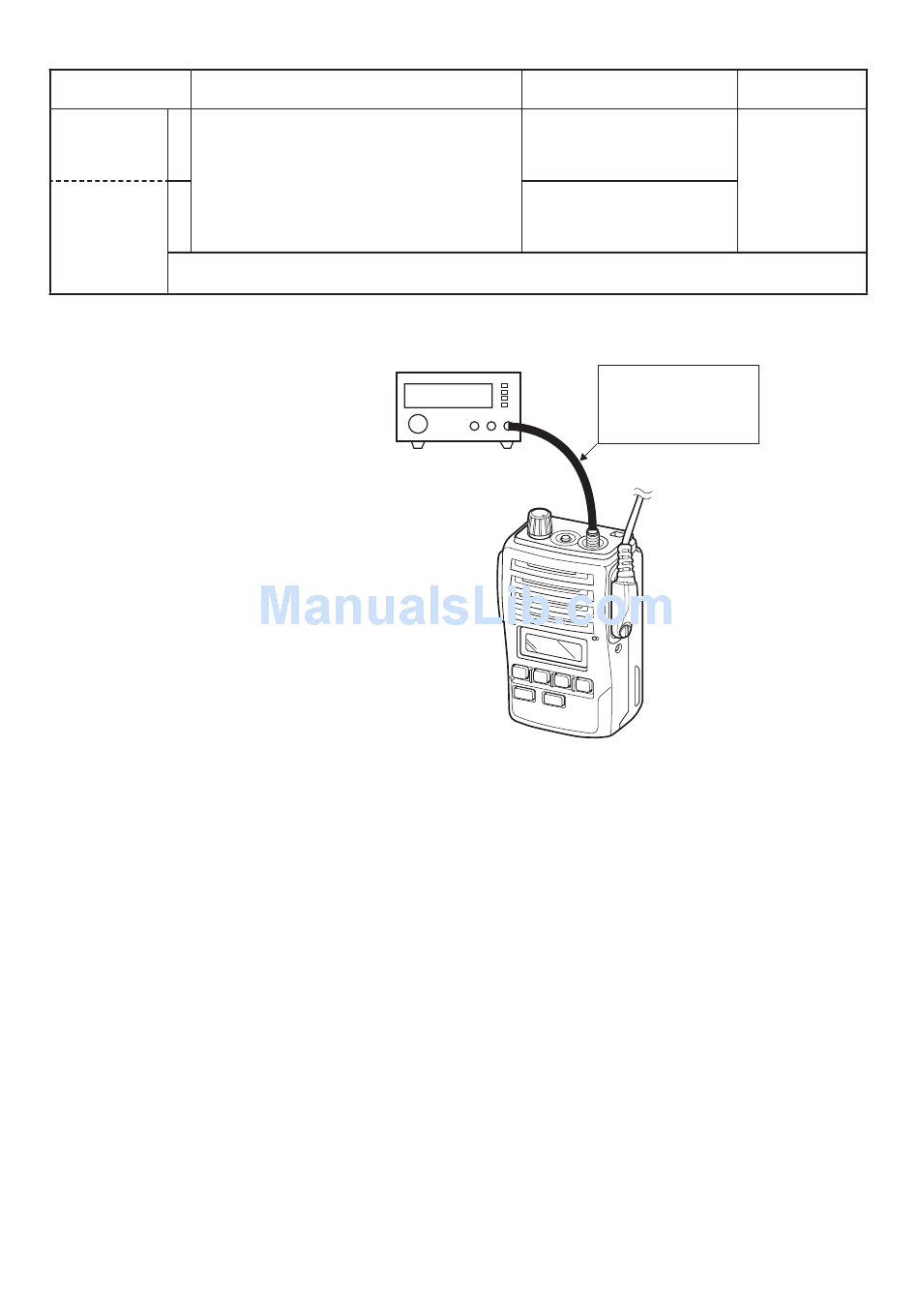

• Connect a Standard Signal Generator to the
SENSITIVITY
antenna connector.
[BPF T1]
• Receiving
[BPF T2] 2
CONVENIENT:
RECEIVE SENSITIVITY can be adjusted totally. Put the cursor on the [BPF ALL], and push the return key.
ADJUSTMENT CONDITION
: 1-13
STANDARD SIGNAL GENERATOR
(1–300 MHz)
SETTING;
Modulation : 1 kHz
Deviation : 3.5 kHz
Level : +20 dBµ
OPERATION
Put the cursor on the [BPF T1],
and push the return key.
Put the cursor on the [BPF T2],
and push the return key.
CAUTION:
DO NOT transmit while
an SSG is connected to
the antenna connector.
5 - 10
VALUE
(Automatic
adjustment)
