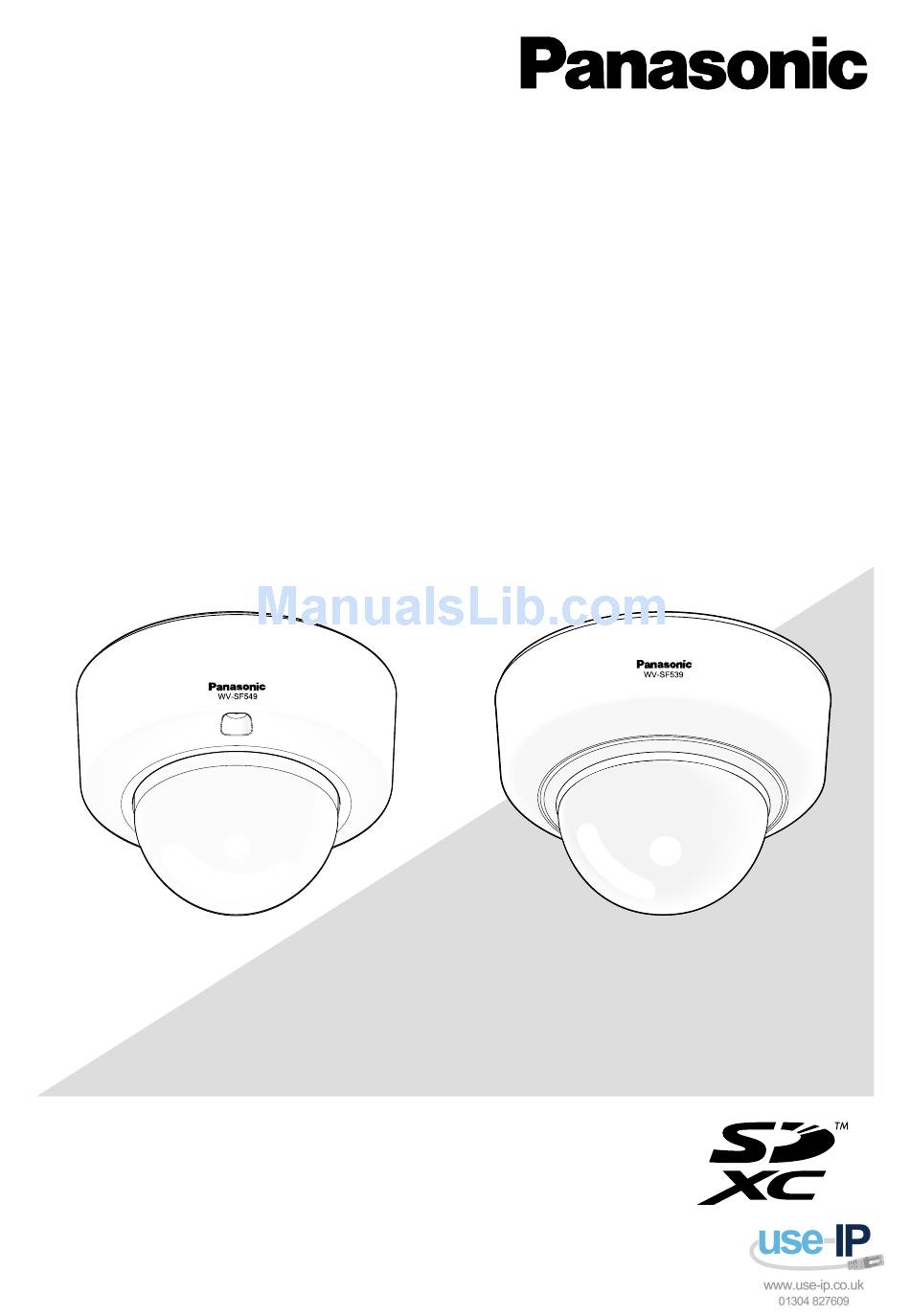

WV-SF549/WV-SF548
Model No.
WV-SF539/WV-SF538
WV-SF549E/WV-SF548E
WV-SF539E/WV-SF538E
WV-SF549
Before attempting to connect or operate this product, please read these
instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Installation Guide
Network Camera
WV-SF539
Advertisement
Table of Contents
Related Manuals for Panasonic WV-SF549
Summary of Contents for Panasonic WV-SF549
-
Page 1: Installation Guide
Installation Guide Network Camera WV-SF549/WV-SF548 Model No. WV-SF539/WV-SF538 WV-SF549E/WV-SF548E WV-SF539E/WV-SF538E WV-SF549 WV-SF539 Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 Serial No. For Europe For U.S. and Canada: WV-SF549, WV-SF548, WV-SF539, WV-SF538 We declare under our sole responsibility that the product For Europe and other countries: to which this declaration relates is in conformity with the standard or other normative document following the WV-SF549E, WV-SF548E, WV-SF539E, provisions of Directive 2004/108/EC.
-
Page 3: Table Of Contents
Precautions for Installation ......................13 Major operating controls ......................15 Detaching the dome cover ......................17 Preparations ..........................19 Insert/remove an SD memory card (WV-SF549/WV-SF539 only)* ..........22 Connection ..........................23 Installation ........................... 29 Adjustment ..........................30 Attaching the dome cover ......................34 Using the CD-ROM ........................ -
Page 4: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. -
Page 5: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 6: Preface
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. :The functions with this notation are available when using the model WV-SF549. SF549 :The functions with this notation are available when using the model WV-SF548. -
Page 7: About The User Manuals
About the user manuals There are 2 sets of operating instructions for the WV-SF549, WV-SF548, WV-SF539, WV-SF538 (P model), WV-SF549E, WV-SF548E, WV-SF539E, WV-SF538E (E model) as follows. • Installation Guide: Explains how to install and connect devices. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. -
Page 8: Trademarks And Registered Trademarks
* A phenomenon in which portions of the screen are displayed out of alignment • F or information on the operation verification of the supported operating systems and web browsers, refer to our website at http://panasonic.net/pss/security/support/index.html. Trademarks and registered trademarks • Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe... -
Page 9: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 10: Precautions
Precautions Refer installation work to the dealer. The screws and bolts must be tightened to Installation work requires technique and experi- the specified torque. ences. Failure to observe this may cause fire, Failure to observe this may cause a drop result- electric shock, injury, or damage to the product. -
Page 11: Precautions For Use
[Precautions for use] Cleaning this product body This product is designed to be used indoors. Be sure to turn off the power before cleaning. This product is not operable outdoors. Failure to observe this may cause injury. Do not use strong abrasive detergent when cleaning this This product has no power switch. - Page 12 Discoloration on the color filter of the MOS image sensor • When continuously shooting a bright light source such as a spotlight, the color filter of the MOS image sensor may have deteri- orated and it may cause discoloration. Even when changing the fixed shooting direction after continuously shooting a spotlight for a certain period, the discolor- ation may remain.
-
Page 13: Precautions For Installation
Precautions for Installation Panasonic assumes no responsibility for injuries or property damage resulting from fail- ures arising out of improper installation or operation inconsistent with this documentation. This camera is designed to be used indoors. • Locations subject to condensation as the This product is not operable outdoors. - Page 14 Screw tightening • The screws and bolts must be tightened with an appropriate tightening torque according to the material and strength of the installation area. • Do not use an impact driver. Use of an impact driver may damage the screws or cause tightening excessively.
-
Page 15: Major Operating Controls
Major operating controls SF549 SF548 SF539 SF538 Dome cover Inner dome Inner dome Clear dome SF549 SF548 Dome cover xing screw hole (Provided only for service) Monitor out connector for Direction marker for installation service* SF539 SF538 SF539 SF538 Dome cover xing projection Marker Azimuth adjustment ring Monitor out connector... -
Page 16: Side View
<Side view> SF549 SF539 SD memory card slot Access indicator (blinking at accessing) Link indicator (lighting at linking) Auto focus (AF) button/ Upside-down button Auto focus (AF) button/ Upside-down button INITIAL SET button SF548 SF538 SD memory card error indicator/ Tilting lock screw Auto focus indicator (blinks when adjusting auto focus) -
Page 17: Detaching The Dome Cover
Detaching the dome cover Detach the dome cover from the camera by loosening the dome cover fixing screws. SF549 SF548 The following procedure is required when using WV-SF549 or WV-SF548. Refer to page 18 when using WV-SF539 or WV-SF538. IMPORTANT: • Remove the cover film from the dome section of the dome cover after the installation is com- plete. - Page 18 Detach the dome cover from the camera by removing the dome cover fixing screw. SF539 SF538 The following procedure is required when using WV-SF539 or WV-SF538. Refer to page 17 when using WV-SF549 or WV-SF548. IMPORTANT: • After removal, retain the dome cover fixing screw so as not to lose. The screw is required when attaching the dome cover. (☞ Page 34) • Remove the cover film from the dome section of the dome cover after the installation is com-...
-
Page 19: Preparations
Preparations When installing the camera on a wall or a ceiling, there are four methods as specified below. (☞ Pages 20 and 21) • Using the two-gang junction box • Installing the camera directly on the ceiling or wall • Using the optional ceiling mount bracket WV-Q174 (for embedded installation on a ceiling) SF539 SF538 • Using the optional ceiling mount bracket WV-Q105*... -
Page 20: Method Of Camera Installation
Using the side cable access hole When installing the camera directly on the ceiling or wall with cables exposed, cut out a portion of the dome cover to open a cable access hole. SF539 SF538 SF549 SF548 Side cable access hole Side cable access hole LOCK OPEN... - Page 21 Installing the camera directly on the ceiling or wall Place the installation template label (accessory) on the ceiling or wall, and make a hole to pass the cable. Remove the template label, and mount the camera by fixing 4 screws (locally procured). (☞...
-
Page 22: Insert/Remove An Sd Memory Card (Wv-Sf549/Wv-Sf539 Only)
Insert/remove an SD memory card (WV-SF549/WV-SF539 only) IMPORTANT: • Before inserting the SD memory card, turn off the power of the camera first. • When inserting an SD memory card, make sure the direction. • Before removing the SD memory card, select "Not use" for "SD memory card" on the [SD memory card] tab of the setup menu first. Turn off the power after "Not use" selection, and then unload the SD memory card. -
Page 23: Connection
Connection Caution: • FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY. Before starting the connection, turn off the power of this camera and the devices to be connected. Check and prepare the required devices and cables for connection. Note: • Since the connector storage section does not have a suffi- cient space, use audio cables 9 mm and a LAN cable that do not... - Page 24 IMPORTANT: • Connect/disconnect the audio cables and turn on the power of the camera after turning off the power of the audio output devices. Otherwise, loud noise may be heard from the speaker. Audio output Connect an external speaker with amplifier to connector the audio output connector (for use of the audio transmission function). SF549 SF539 Connect a stereo mini plug (ø3.5 mm) (audio output is monaural).
- Page 25 e After the cable connection, connect the exter- External I/O terminals nal I/O terminal plug to the external I/O termi- nals of the camera. IMPORTANT: • Do not connect 2 wires or more directly to a terminal. When it is necessary to connect 2 wires or more, use a splitter. • Input and output of the EXT I/O terminal 2 and 3 can be switched by configuring the setting. "Off" is selected by default. It is possible to determine whether or not to receive input from EXT I/O terminal 2 and 3 (ALARM IN2, 3) by selecting "Off", "Alarm input", "Alarm output"...
- Page 26 When using 12 V DC power supply* q Loosen the screws of the power cord plug (accessory). w Connect the cable of the 12 V DC power sup- (12 V DC) (GND) ply* to the power cord plug. Strip 3 mm - 7 mm {1/8 inches - 9/32 inches} from the end of the wire, and twist the stripped part of the wire sufficiently to avoid short circuit.
- Page 27 When using PoE (IEEE802.3af compliant) Connect a LAN cable (category 5 or better, straight, STP*) between a PoE device (such as a hub) and the network connector of the camera. * E models only IMPORTANT: • Use all 4 pairs (8 pins) of the LAN cable. • The maximum cable length is 100 m {328 feet}. • Make sure that the PoE device in use is compliant with IEEE802.3af standard. • When connecting both the 12 V DC power supply and the PoE device for power supply, 12 V DC will be used for power supply.
- Page 28 Connection example when connecting to a network using a PoE hub Video monitor (for adjustment use only) Speaker with amplifier PoE device (hub) (option) LAN cable (category 5 or better, straight, STP*) LAN cable (category 5 or Microphone (option) better, straight, STP*) Speaker with amplifier (option) LAN cable (category 5 or...
-
Page 29: Installation
• When tightening the screws, be careful to ensure that the cables does not tangle the cables. Note: • For ceiling mounting Select which direction to face the front (the side where the Panasonic logo and "FRONTh" are) of the camera. Refer to the "Adjustment" section (☞ pages 30 - 33) for further information about adjustment. • For wall mounting... -
Page 30: Adjustment
Adjustment Perform the following procedures before adjusting the camera angle. SF549 SF548 Detach the inner dome from the camera by picking the front and rear sides. Note: • Do not touch the lens. Pick the portion marked in the illustration as well as the opposite side. Adjust the camera angle. - Page 31 Vertical position (Tilting) Loosen the tilting lock screws (x2), and rotate the tilting table to adjust the tilting direction. (Adjustable range: ±75 °) Since a variable focal lens is used, it is possible to change the angu- Tilting lock lar field of view. This lens can also be rotated in screws (x2) the reverse direction, but the image azimuth is reversed.
- Page 32 Adjust the angular field of view and the focus. Adjust the angular field of view in accordance with the distance between the camera lens and a photographic subject. These adjustments shall be performed together with the camera angle adjustment. Auto focus (AF) button/Upside-down button Zoom lock knob Loosen Tighten...
- Page 33 Note: • If the zoom lock knob is fully turned in the "W" direction, the periphery may become dark. In such a case, turn the zoom lock knob in the "T" direction for readjustment. • If the zoom lock knob is slightly tightened before the zoom is adjusted, the knob will become stable, making fine adjustments easier to perform. • When shooting in the following place or the following subjects, focus may not be adjusted automatically.
-
Page 34: Attaching The Dome Cover
Attach the dome cover to the camera. SF549 SF548 The following procedure is required when using WV-SF549 or WV-SF548. Refer to page 35 when using WV-SF539 or WV-SF538. Attach the inner dome to the camera in the same manner as the procedure in page 30. - Page 35 Attach the dome cover to the camera. SF539 SF538 The following procedure is required when using WV-SF539 or WV-SF538. Refer to page 34 when using WV-SF549, WV-SF548. Marker Align the indication "OPEN" to the marker of the camera to attach the dome cover.
- Page 36 Rotate the dome cover clockwise to adjust the marker to "LOCK". Fix the dome cover and the camera with LOCK OPEN the dome cover fixing screw (M3, step ADJUST screw, x1) that has been removed in the procedure of "Detaching the dome cover" (☞...
-
Page 37: Using The Cd-Rom
Insert the provided CD-ROM into the CD-ROM drive of your PC to start up the CD launcher. Then the License Agreement will be displayed. • If the launcher window is not displayed, double click the "CDLauncher.exe" file on the CD-ROM. • Read the Agreement and choose "I accept the term in the license agreement", and click [OK]. Then the launcher window will be displayed. Using the supplied CD-ROM, the following actions can be performed. q The Panasonic IP setting software can be installed on the PC. → Refer to "Installing Panasonic IP setting software". (☞ Page 38) w Settings related to the camera's network can be set from the Panasonic IP setting software. → Refer to "Configure the network settings". (☞ Page 40) e The manuals can be installed on the PC. → Refer to "Installing the manuals". (☞ Page 39) r You can also view the manuals without installing them to the PC by clicking the [Open] button. -
Page 38: Installing Panasonic Ip Setting Software
Installing Panasonic IP setting software On the CD launcher window, click the [Install] button next to [IP Setting Software] to display the Panasonic IP setting software installation window. Confirm the following settings before starting the installation. q Select the Panasonic IP setting software to install. w Select where to create the Panasonic IP setting shortcut icon when the Panasonic IP setting software is installed. e Specify which folder on the PC to install the Panasonic IP setting software to. r Click the [Install] button to start the installation. Note: • To uninstall the Panasonic IP setting software delete the shortcut icon from where you specified it to be installed (the default is on the desktop) during installation and the [EasyIPConfig] folder from the folder you specified during Panasonic IP setting software installation. -
Page 39: Installing The Manuals
Installing the manuals On the CD launcher window, click the [Install] button next to [Manual] to display the Manual installa- tion window. Confirm the following settings before starting the installation. q Select which manuals to install. The camera models that the manuals support are displayed in w "Model List". w The camera models that are supported by the manuals selected in q are displayed here. e Select where to create the manuals shortcut icon when the manuals are installed. r Specify which folder on the PC to install the manuals to. t Click the [Install] button to start the installation. Note: • To uninstall the manuals delete the shortcut icon from where you specified it to be installed (the default is on the desktop) during installation and the [Manual] folder from the folder you specified during the manuals installation. Installing the Viewer software The Viewer software (Network Camera View 4S) must be installed on the PC in order to display camera images. On the CD launcher window, click the [Install] button next to [Viewer Software], and follow the instructions displayed on the window to install the software. A message is displayed if a... -
Page 40: Configure The Network Settings
Configure the network settings Configure the network settings of the camera using the Panasonic IP setting software It is possible to perform the network settings of the camera using the IP setup software on the pro- vided CD-ROM. When using multiple cameras, it is necessary to configure the network settings of each camera independently. If the Panasonic IP setting software does not work, configure the network settings of the camera and the PC individually on the "Network" page of the setup menu. Refer to the Operating Instructions (included in the CD-ROM) for further information. IMPORTANT: • When using Microsoft Windows 7 or Microsoft Windows Vista, the "Windows Security Alert"... - Page 41 Complete each network setup item and click the [Save] button. Note: • By unchecking the "Wait for camera restarting." check- box, multiple cameras can be continuously configured. IMPORTANT: • It may take for around 2 minutes to complete to upload the settings to the camera after clicking the [Save] button. The settings may be invalidated when the LAN cable is disconnected before completing the upload. In this case, perform the settings again. • When using a firewall (including software), allow access to all UDP ports. About the default user name and password Click the [Setup] button on the "Live" page, the user authentication window will be displayed. Enter the default user name and password as follows, and log in. User name: admin Password: 12345 IMPORTANT: • To enhance the security, change the password for the user name "admin". It is recommended to change this password periodically.
-
Page 42: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using DC power supply... -
Page 43: Specifications
Specifications Basic • Power source: 12 V DC, PoE (IEEE802.3af compliant) Power consumption: SF549 SF539 12 V DC*: 530 mA, PoE 48 V: 120 mA (Class 2 devices) SF548 SF538 12 V DC*: 510 mA, PoE 48 V: 115 mA (Class 2 devices) * FOR UL LISTED MODEL(S), ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY. - Page 44 Camera • Image sensor: 1/3-type MOS image sensor Effective pixels: Approx. 3.1 megapixels Scanning area: 4.51 mm (H) × 3.38 mm (V) {3/16 inches (H) x 1/8 inches (V)} Scanning system: Progressive Minimum illumination: SF549 SF539 Color: 0.5 lx {0.05 footcandle} (F1.3, Auto slow shutter: Off (1/30 s), Gain: On(High)) 0.03 lx {0.003 footcandle} (F1.3, Auto slow shutter: max.
- Page 45 Lens • Zoom ratio: 3.6x Extra optical zoom: 10.8x (Imaging mode: 2 megapixel, at 640x360 resolution) Focal length: 2.8 mm - 10 mm Maximum aperture ratio: 1:1.3 (WIDE) - 1:3.0 (TELE) Angular field of view: Horizontal: 24.20° (TELE) - 80.6° (WIDE) (Imaging mode: [16:9])* Adjusting angle: Horizontal: 180 ° (clockwise), 170 ° (counterclockwise) Vertical: ±75 °...
- Page 46 Compatible SDXC/SDHC/ SF549 SF539 SD memory card (option): Manufactured by Panasonic SDXC memory card: 64 GB SDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB SD memory card: 1 GB, 2 GB (except miniSD card and microSD card)
-
Page 47: Standard Accessories
Standard accessories Installation Guide (this document) ..........1 pc. Warranty card (P model only) ............. 1 pc. CD-ROM* ................1 pc. Code label* ................1 pc. The following parts are used during installation procedures. Power cord plug ................ 1 pc. External I/O terminal plug ............ - Page 48 Panasonic Marketing Europe GmbH Three Panasonic Way, Secaucus, Winsbergring 15, 22525 Hamburg F.R.Germany New Jersey 07094 U.S.A. Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada (905)624-5010 www.panasonic.ca © Panasonic System Networks Co., Ltd. 2012 Cs0412-1042 PGQX1075YA Printed in China...
