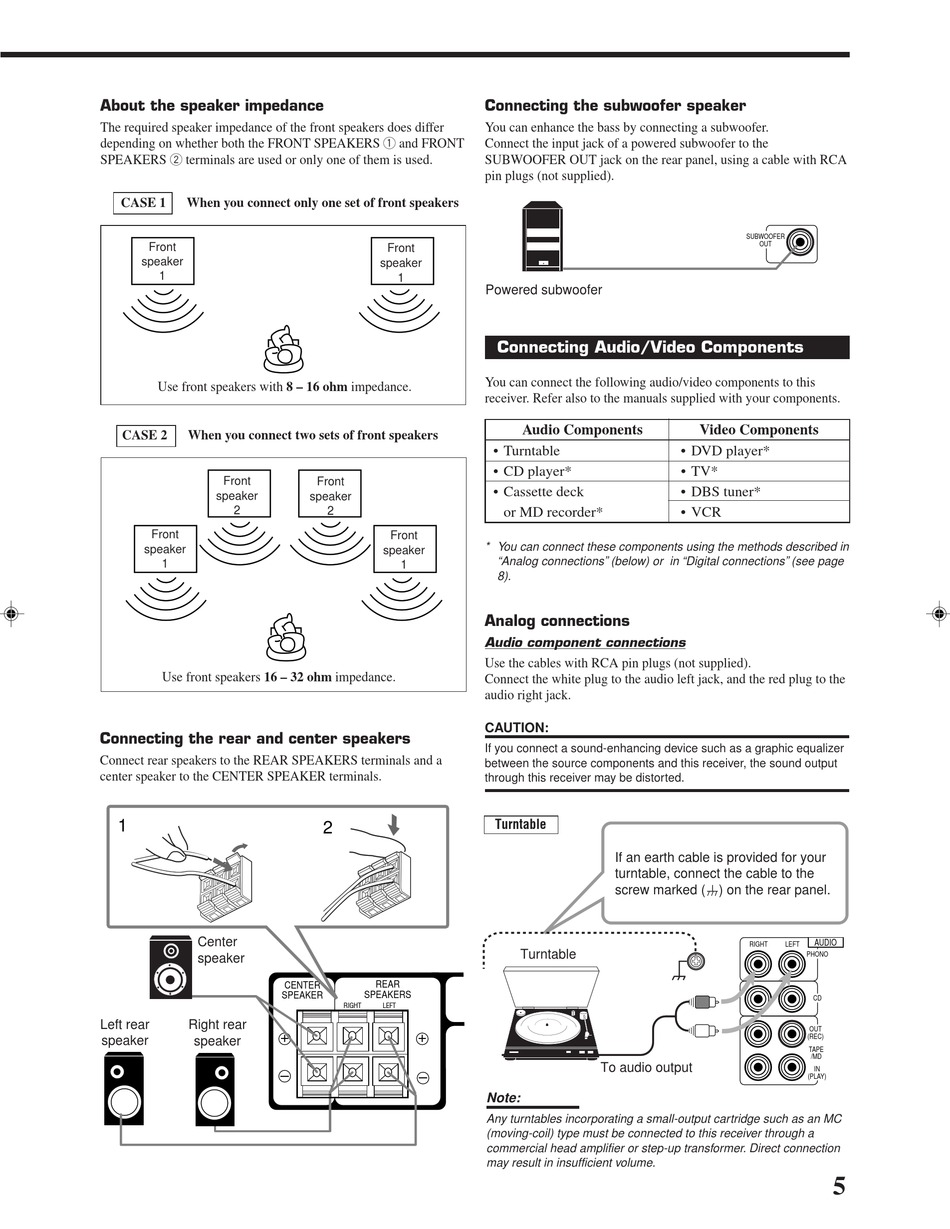

About the speaker impedance
The required speaker impedance of the front speakers does differ
depending on whether both the FRONT SPEAKERS 1 and FRONT
SPEAKERS 2 terminals are used or only one of them is used.
CASE 1 When you connect only one set of front speakers
Front
speaker
1
Use front speakers with 8 – 16 ohm impedance.
CASE 2 When you connect two sets of front speakers
Front
speaker
2
Front
speaker
1
Use front speakers 16 – 32 ohm impedance.
Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
1
Center
speaker
Left rear
Right rear
speaker speaker
Front
speaker
1
Front
speaker
2
Front
speaker
1
2
CENTER REAR
SPEAKERS
SPEAKER
RIGHT LEFT
+ +
–
–
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
Powered subwoofer

Connecting Audio/Video Components

You can connect the following audio/video components to this
receiver. Refer also to the manuals supplied with your components.
Audio Components
• Turntable
• CD player*
• Cassette deck
or MD recorder*
* You can connect these components using the methods described in
"Analog connections" (below) or in "Digital connections" (see page
8).
Analog connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
Turntable
If an earth cable is provided for your
turntable, connect the cable to the
screw marked (H) on the rear panel.
Turntable
To audio output
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil) type must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
SUBWOOFER
OUT
Video Components
• DVD player*
• TV*
• DBS tuner*
• VCR
AUDIO
RIGHT LEFT
PHONO
CD
OUT
(REC)
TAPE
/MD
IN
(PLAY)
