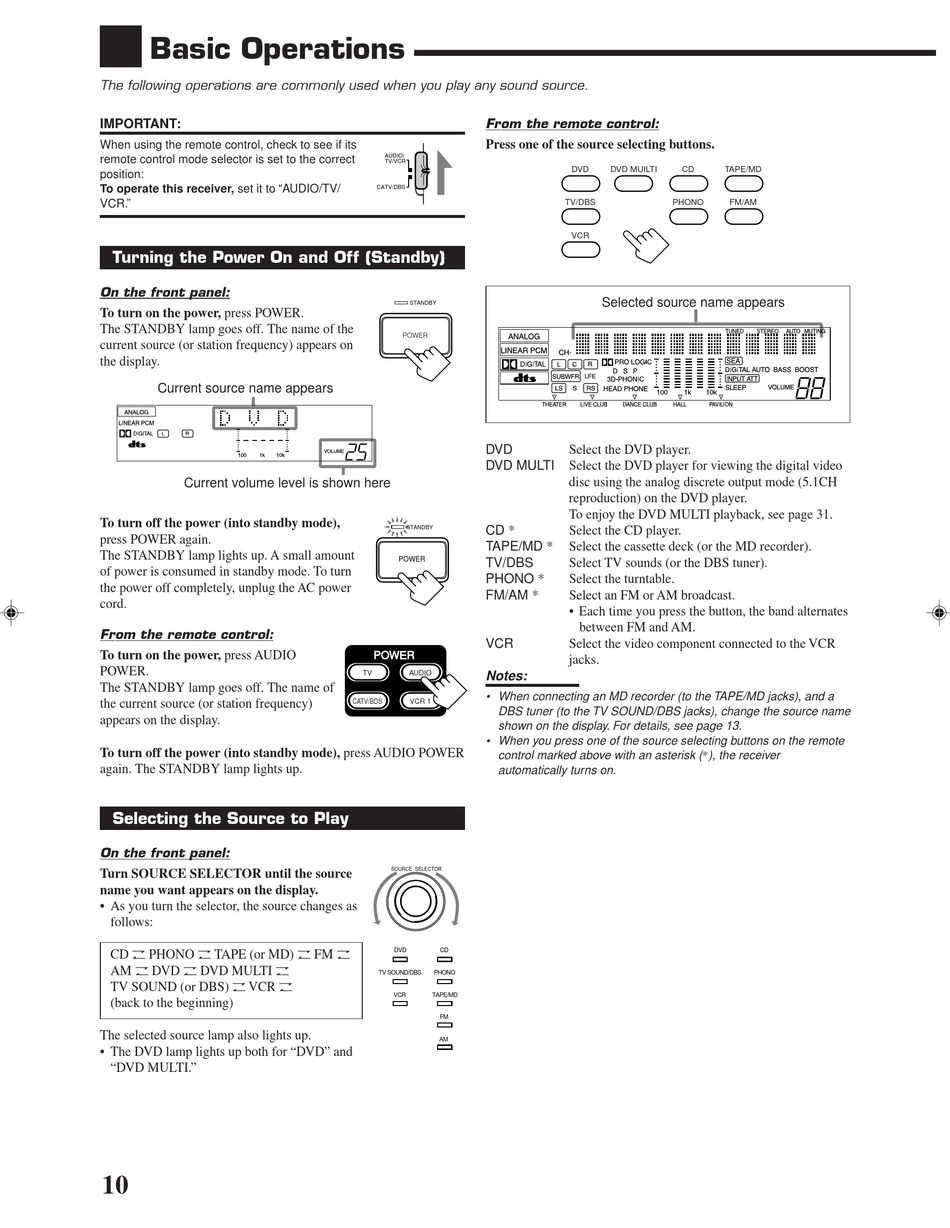

Basic Operations

The following operations are commonly used when you play any sound source.
IMPORTANT:
When using the remote control, check to see if its
remote control mode selector is set to the correct
position:
To operate this receiver, set it to "AUDIO/TV/
VCR."

Turning the Power On and Off (Standby)

On the front panel:
To turn on the power, press POWER.
The STANDBY lamp goes off. The name of the
current source (or station frequency) appears on
the display.
Current source name appears
Current volume level is shown here
To turn off the power (into standby mode),
press POWER again.
The STANDBY lamp lights up. A small amount
of power is consumed in standby mode. To turn
the power off completely, unplug the AC power
cord.
From the remote control:
To turn on the power, press AUDIO
POWER.
The STANDBY lamp goes off. The name of
the current source (or station frequency)
appears on the display.
To turn off the power (into standby mode), press AUDIO POWER
again. The STANDBY lamp lights up.

Selecting the Source to Play

On the front panel:
Turn SOURCE SELECTOR until the source
name you want appears on the display.
• As you turn the selector, the source changes as
follows:
CD O PHONO O TAPE (or MD) O FM O
AM O DVD O DVD MULTI O
TV SOUND (or DBS) O VCR O
(back to the beginning)
The selected source lamp also lights up.
• The DVD lamp lights up both for "DVD" and
"DVD MULTI."
10
From the remote control:
Press one of the source selecting buttons.
AUDIO/
TV/VCR
CATV/DBS
STANDBY
POWER
DVD
DVD MULTI
STANDBY CD *
TAPE/MD *
POWER
TV/DBS
PHONO *
FM/AM *
VCR
TV AUDIO Notes:
• When connecting an MD recorder (to the TAPE/MD jacks), and a
CATV/BDS VCR 1
DBS tuner (to the TV SOUND/DBS jacks), change the source name
shown on the display. For details, see page 13.
• When you press one of the source selecting buttons on the remote
control marked above with an asterisk ( * ), the receiver
automatically turns on.
SOURCE SELECTOR
DVD CD
TV SOUND/DBS PHONO
VCR TAPE/MD
FM
AM
DVD DVD MUILTI CD TAPE/MD
TV/DBS PHONO
VCR
Selected source name appears
Select the DVD player.
Select the DVD player for viewing the digital video
disc using the analog discrete output mode (5.1CH
reproduction) on the DVD player.
To enjoy the DVD MULTI playback, see page 31.
Select the CD player.
Select the cassette deck (or the MD recorder).
Select TV sounds (or the DBS tuner).
Select the turntable.
Select an FM or AM broadcast.
• Each time you press the button, the band alternates
between FM and AM.
Select the video component connected to the VCR
jacks.
FM/AM
