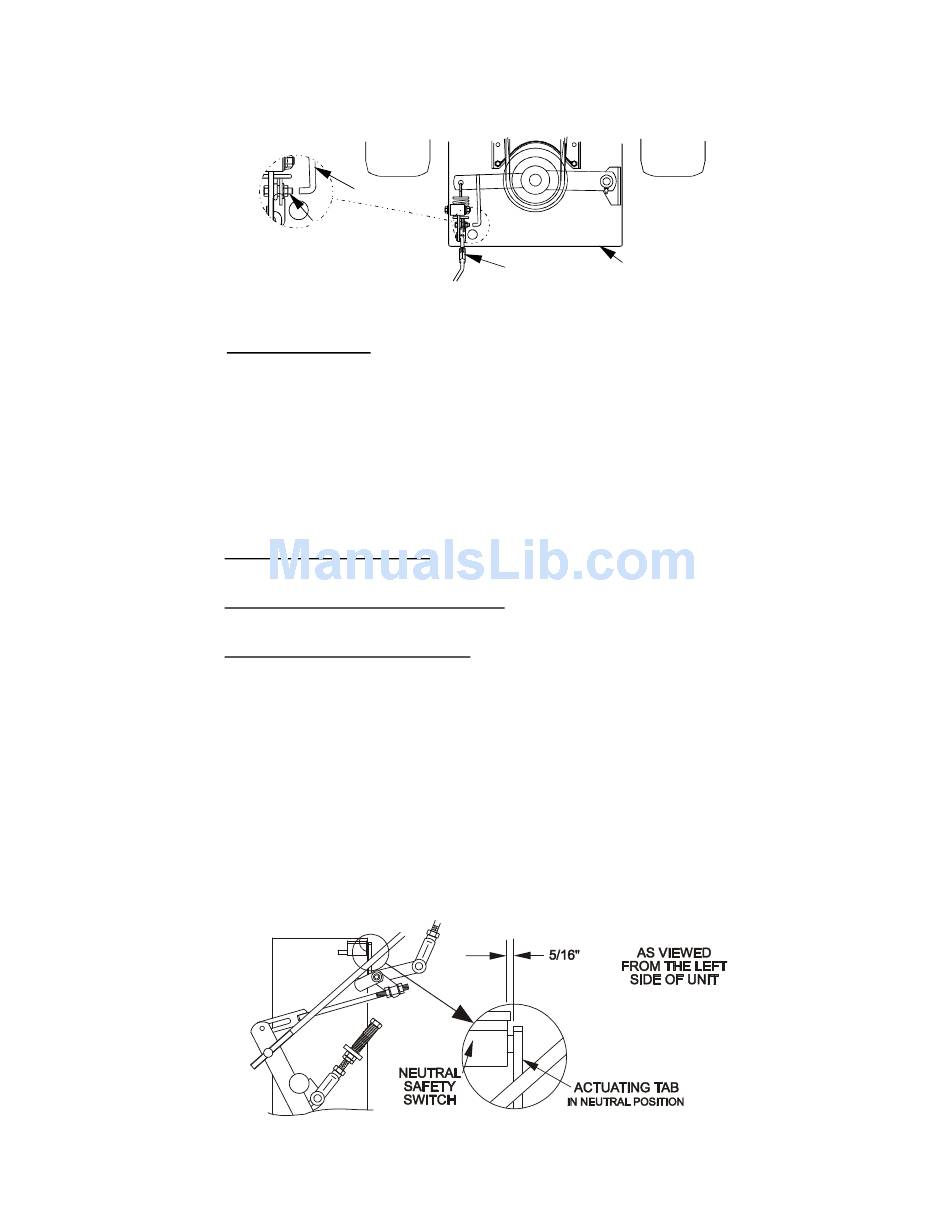

b) With PTO engaged, adjust the linkage length by loosening the locknut on
the turnbuckle and adjusting the turnbuckle so that the bolt on the bellcrank
and the indicator arm align with each other within 1/16" (.16 cm). See
Figure 11. Tighten locknut against turnbuckle.
Indicator
Align Bolt to
Indicator
within 1/16"
BLADE ENGAGEMENT LINKAGE
PTO Safety Switch: Mounted to a tab on the inside left side of the fuel tank support.
a) Stop engine and wait for all moving parts to stop. Remove ignition key or
spark plug wire(s).
b) With PTO disengaged and the bellcrank touching the rear of the slot in the
engine deck, adjust the PTO safety switch (if needed) until the bellcrank
arm is 5/16" from the switch body.
c) Be sure the bellcrank DOES NOT touch the switch body or damage to the
switch could occur.
d) Retighten PTO switch mounting hardware.
Engine to Mower Deck Belt:
No adjustment necessary.
Pump Drive Belt Tension Adjustment:
No adjustment necessary.
Hydro Drive Linkage Adjustment:
a) Adjust Speed Control Linkage and Neutral Safety Switch
1. Stop engine and wait for all moving parts to stop.
2. Move the speed control lever (located on the console) to the full
forward position and check the orientation of the tabs on the ends of
the speed control crank (Figure 12). These tabs should be pointing
straight down at the 6 o'clock position or slightly forward. Adjust the
threaded yoke at the bottom of the speed control linkage (Figure 12)
until the tabs are positioned correctly.
3. Pull the speed control lever back to neutral. Check that the neutral
safety switch actuating tab has depressed the plunger of the switch so
that there is about 5/16" (.79 cm) between the tab and the switch (See
Figure 12). If necessary, move the switch fore and aft.
NEUTRAL SAFETY SWITCH ADJUSTMENT
www.mymowerparts.com
Turnbuckle
FIGURE 11
FIGURE 12
- 33 -
