5.1.14
No. 4 (Idler Pivot)
Located Under Engine Deck
No. 5 (Clutch Arm Pivot)
Located Under Engine Deck
No. 4 & 6 (Idler Arm Pivots)
Disassemble and grease once a month
under a "No Load" Condition.
5.1.15
5.1.16
b) Engage PTO lever.
c) Look through the round hole in the left rear corner of the engine deck to
inspect blade clutching belt tension. Bolt on blade engagement linkage
bellcrank and indicator arm should align within 1/16" (.16 cm) (See Figure
13). Refer to section 5.2.2 for adjustment.
Lubrication
Service Interval: Refer to Chart.
a) Stop engine and wait for all moving parts to stop. Remove ignition key or
spark plug wire(s).
b) Lubricate fittings with one to two pumps of NGLI grade #2 multi-purpose
gun grease.

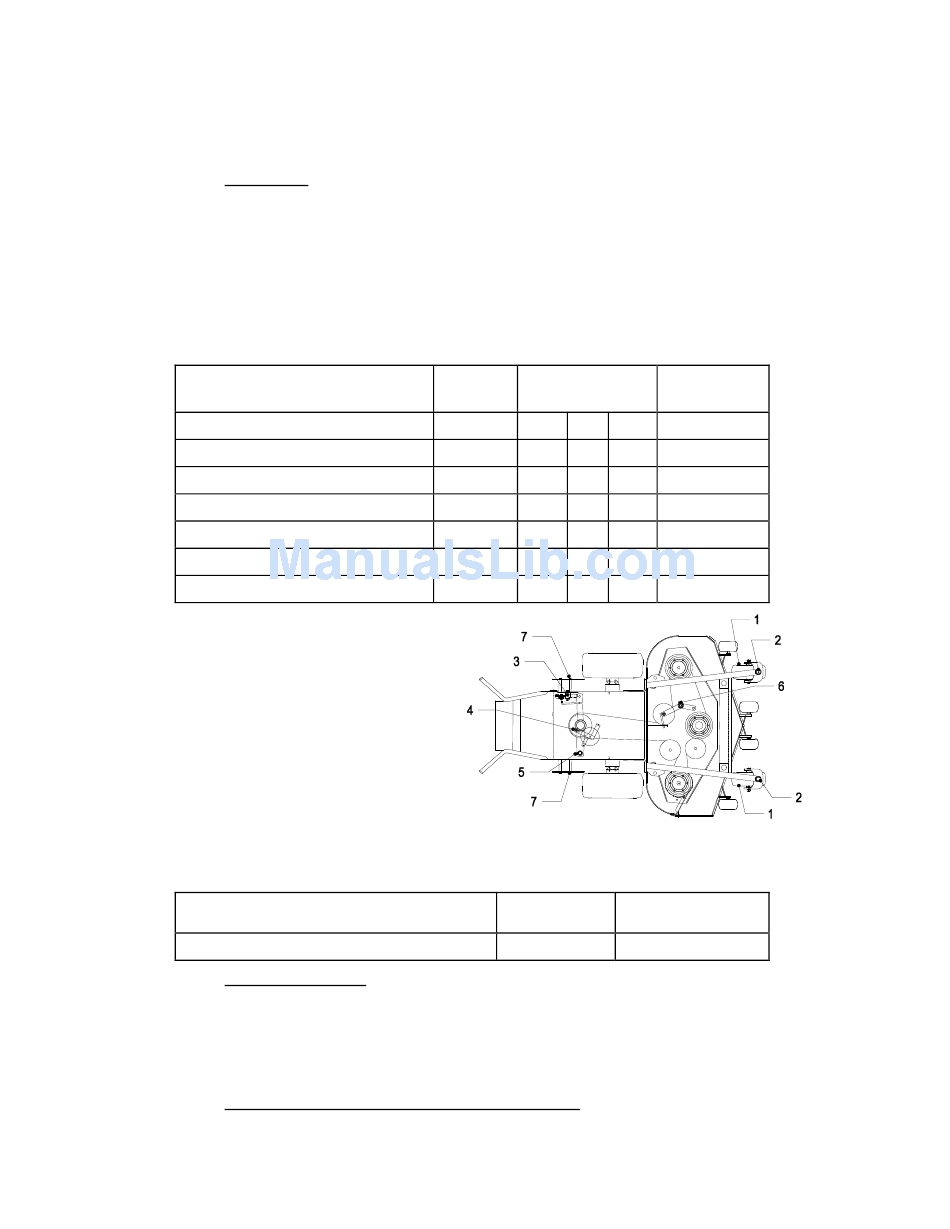

Refer to the following chart for fitting locations and lubrication schedule.
GREASE LUBRICATION CHART
FITTING
LOCATIONS
1. Caster Wheel Bearings
2. Caster Pivots
3. PTO Engagement Bellcrank
4. Idler Pivot (Pump Drive)
5. Clutch Arm Pivot
6. Mower Deck Idler Pivots
7. Pump Control Bearings
c) Lubricate pivot points with a spray penetrating
lubricant as directed below.
SPRAY LUBRICANT CHART
PIVOT POINT
1. PTO Lever
Check spark plugs.
Service Interval: 160 hrs.
a) Stop engine and wait for all moving parts to stop.
b) Remove spark plugs, check condition and adjust plug gap or replace with
new plugs. See Engine Owner's Manual.
Remove engine shrouds and clean cooling fins.
Service Interval: See Engine Owner's Manual
www.mymowerparts.com
INITIAL QUANTITY
PUMPS 36" 48" 52"
12 2 2
2 2 2
1 1 1
2 1 1
1 1 1
2 1 1
2 2 2
NO. OF
PLACES
1
- 29 -
SERVICE
INTERVAL
2 8 hours
2 8 hours
1 40 hours
1 40 hours
1 40 hours
1 40 hours
2 40 hours
SERVICE
INTERVAL
Weekly
