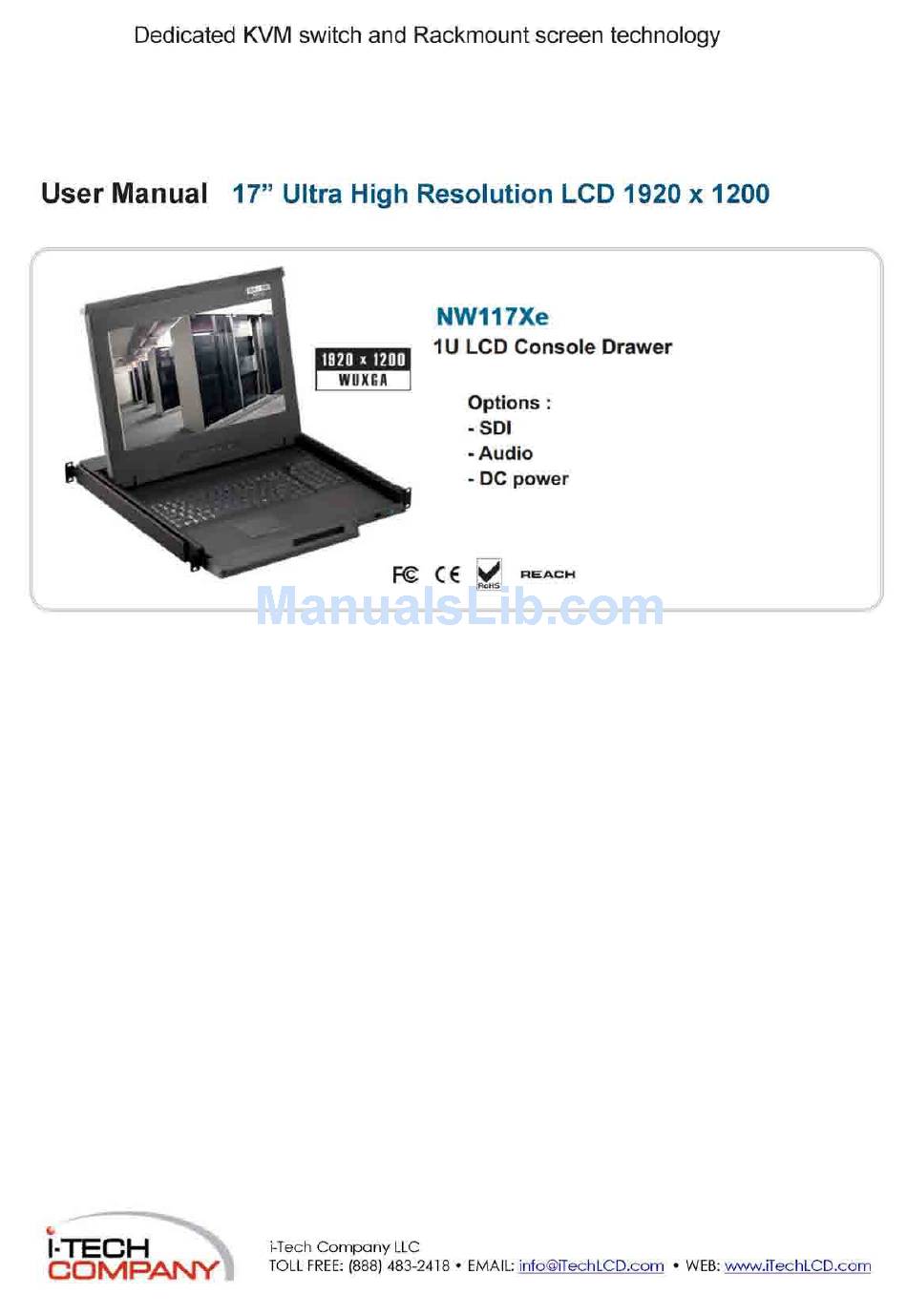

- Page 1 Dedicated KVM switch and Rackmount screen technology User Manual 17” Ultra High Resolution LCD 1920 x 1200 i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NW117Xe Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3-5 Connection P.6-9 < Part. 2 > Specifications / OSD Product Specifications P.10-11 Keyboard / Mouse Specifications P.12-14 On-screen Display Operation ( OSD ) p. - Page 4 Contents < Part. 4 > KVM Integration Local Remote 8-port 16-port 32-port - M218 - M2116 Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM Matrix DB-15 KVM - M018 - M0116 - M028 - M0216 - M038 - M0316...
-
Page 5: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content NW117Xe unit X 1 - CV-6 6ft DVI-D console cable X 1 (Alternative : NB-6 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 Weight Weight 441.6x480x44 mm 590 x 768 x 140 mm 10.9 kg 15.8 kg NW117Xe 17.4x18.9x1.73" 23.2x30.2x5.5" 24 lb 34.8 lb The weight is only for the single console models. It varies with accessories & options such as KVM, SDI, audio & DC power.
-
Page 8: Installation
nstall Installation Slides Step O Insert the left and right rear mounting brackets into the LCD console drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■... -
Page 9: Post Rack Brackets
< 1.3 > Installation - How to install 2 post rack brackets Step O Release front mounting ears before applying 2 post rack brackets. Insert rear mounting brackets into the LCD console drawer. Option Model :MB-751-12 Step O Align each rear mounting bracket to a suitable length. Rear mounting Front mounting Step O... - Page 10 < 1.3 > Installation- How to use the drawer Hold the handle and slide out the drawer. Flip up the LCD to a suitable angle. &-:£::£ Operate the LCD console drawer. P. 5...
-
Page 11: Connection
< 1.4 > Connection NW117Xe provides three signal input - DVI-D, VGA & HDMI. By PIP function, user can view two different signal inputs on the display ( please refer to P. 17-18 ). Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. - Page 12 < 1.4 > Connection to USB Server via CV-6 cable LCD Console Drawer Power HDMI DVI-D KVM CV-6 DVI-D console cable DVI-D USB server < 1.4 > Connection to external KVM via CV-6 cable LCD Console Drawer Power HDMI DVI-D KVM CV-6 DVI-D console cable DVI-D...
- Page 13 < 1.4 > Connection to USB Server via NB-6 cable LCD Console Drawer HDMI DVI-D KVM NB-6 VGA console cable USB server ^ S i < 1.4 > Connection to external KVM via NB-6 cable LCD Console Drawer HDMI DVI-D KVM NB-6 VGA console cable V G A...
- Page 14 < 1.4 > Connection to HDMI Device via *HDMI cable LCD Console Drawer HDMI DVI-D KVM K——;l |°l fflmi°l <tiaa?^ HDMI cable USB server HDMI cable is not provided, Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
-
Page 15: Product Specifications
< Part 2 > < 2.1 > Product Specifications 17.1-inch Widescreen TFT color LCD Panel Size ( diagonal) Display pixel ( dots x lines ) 1920x1200 Brightness (typ. ) Contrast Ratio (typ. ) 600:1 Color 16.7 M, 8-bit 65/65/55/55 Viewing Angle ( L/R/U/D ) Response Time ( ms ) Dot pitch ( mm ) 0.191... - Page 16 Operating Environmental Temperature 0 to 50°C degree Conditions 20-90%, non-condensing Humidity Storage Temperature -5to60°Cdegree Humidity 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) Physical 441.6x480x44 mm Specification 17.4x18.9x1.73 inch Packing ( W x D x H ) 590x768x140 mm 23.2x30.2x5.5 inch...
-
Page 17: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 5 5 ± 5 g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Software support Linux/ Mac Supporting layouts... - Page 18 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball ^ffl^B^B V 1 1 6 Ml I N Q E E Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness...
- Page 19 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball S keyboard integrated with touchpad / trackball SOLARIS ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
-
Page 20: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Function Membrane Switch Turn the monitor on or off DCZI Display the OSD menu DCZI DCZI Act as an Enter key to select screen setting options A V < Scroll through menu options and adjust >... - Page 21 < 2.3 > On-screen Display Operation ( OSD ) © PC Auto adjust Automatically adjust sizes, centers and fine tunes the ajto adjust video signal to eliminate waviness and distortion. Clock Clock : Adjust the clock value [> Phase Phase : Adjust the phase value H positive H.
-
Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSDMenu -> MISC -► PIP Mode -> Large / Small / OFF Main screen Sub screen Position... - Page 23 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSDMenu -> MISC -> PIP Mode -► PBP Sub screen Main screen Size LCD Monitor Main / Sub screen 1920x1200 955x716 1920x1080 955x716 1440x900...
- Page 24 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input iTechLCD's SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 25: Part. 3 > Options
< 3.2 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For audio option, casing depth will be changed from 480mm (18.9" ) to 530mm ( 20.9" ) HDMI DVI-D Power l ^ ^ l... - Page 26 < 3.3 > Options : DC Power Model Input rating 24-Volt 48-Volt Input voltage: 12-Volt Input range: 9 - 1 8 V 1 8 - 3 6 V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA...
- Page 27 Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
