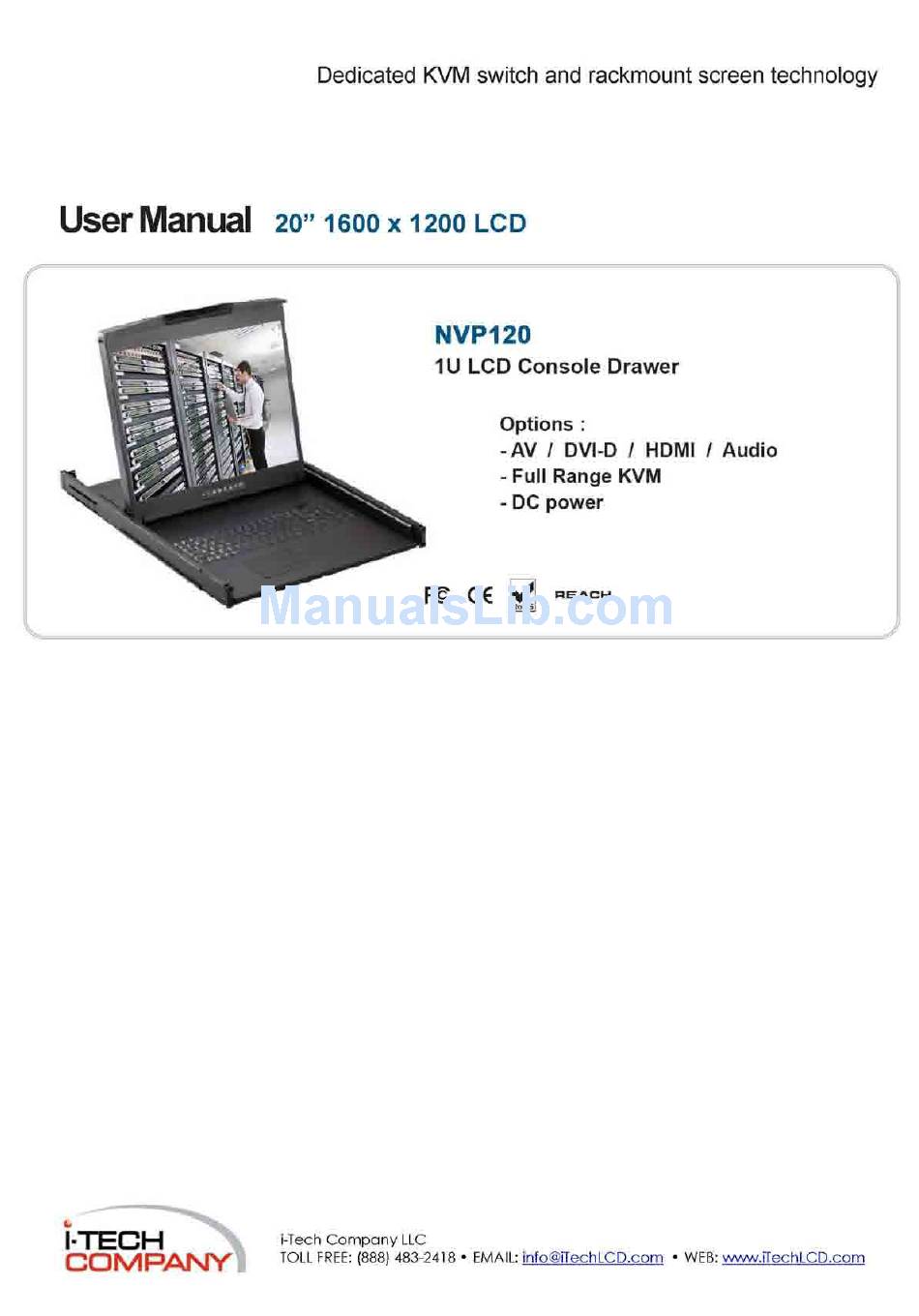

- Page 1 Dedicated KVM switch and rackmount screen technology U s e r M a n u a l 20” 1600 x 1200 LCD |-T~E^j|""I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NVP120 Package Content Structure Diagram & Dimension Installation P. 3 Connection < Part. 2 > Specifications / O S D Product Specifications Keyboard / Mouse Specifications On-screen Display Operation ( O S D ) < Part. 3 >... - Page 4 Contents < Part. 4 > KVM Integration 32-port Local Remote 8-port 16-port MC1116 MC1132 MC2116 MC2132 Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM MC0116 MC0132 MC0216 - MC0232 MC0316 MC0332 Local Remote...
-
Page 5: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 6: Package Content
< Part 1 > < 1.1 > Package Content NVP120unit X 1 - NE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as KVM, HDMI, DVI-D, AV, audio &... - Page 7 Weight Weight 439.6x650x44 mm 595 x 860 x 140 mm 14.5 kg 22 kg NVP120 series 17.3x25.6x1.73" 23.4x33.9x5.5" 31.9 1 b 48.4 lb The weight is only for the single console models. It varies with accessories & options such as KVM, HDMI, DVI-D, AV, audio & DC power.
-
Page 8: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray Step O Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fit your rack. ■ M6 screw x 8 pcs included. M±... - Page 9 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the W.7.V.V.7. drawer. • • • • • • » ■ • • • .V.VAV.V.V Flip up the LCD to a suitable angle. Operate the LCD console drawer.
-
Page 10: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer « <m NE-6 Combo NE-6 Combo KVM cable KVM cable USB server PS/2 server isnoi <^—w^urr lHJ^gTTT; ^ S ! wm @© < 1.4 > Connection to external KVM LCD console drawer LCD console drawer KVM *W>... -
Page 11: Product Specifications
< Part 2 > < 2.1 > Product Specifications ®LG Manufacturer Panel Size ( diagonal) 20-inch TFT color LCD 1600x1200 Display pixel ( dots x lines ) Brightness (typ. ) Contrast Ratio (typ. ) 800:1 16.7 M Color 89/89/89/89 Viewing Angle ( L/R/U/D ) Response Time ( ms ) Dot pitch ( mm ) 0.255... - Page 12 Operating Operating Environmental Temperature 0 to 50°C degree Conditions Humidity 20-90%, non-condensing Storage Storage Storage Storage Temperature -5 to 60°C degree Humidity 5-90%, non-condensing Shock 10G acceleration (11 ms duration) Vibration 5~500Hz 1G RMS random Physical Physical Product ( W x D x H ) 439.5x650x44 mm Specification Specification...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad pEEEEIg *• tji tie ¥ # r % | TA ■ & T * 7 f f < y ' ^^^^^ffl^^n MttMJJK ■' ! — 1 ■ ■ Key force 55 ±... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) O Power light © < ► i> < ♦ M f> • Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu 4>4»<£# Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button 4 K f °... - Page 15 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Either HDMI or DVI-D can be selected.
- Page 16 Efficiency DC power * * * Option excludes 1 x power cord and 1 x AC power adapter l-TECH i-Tech C o m p a n y LLC COMPANV TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w . i T e c h L C D . c o m...
