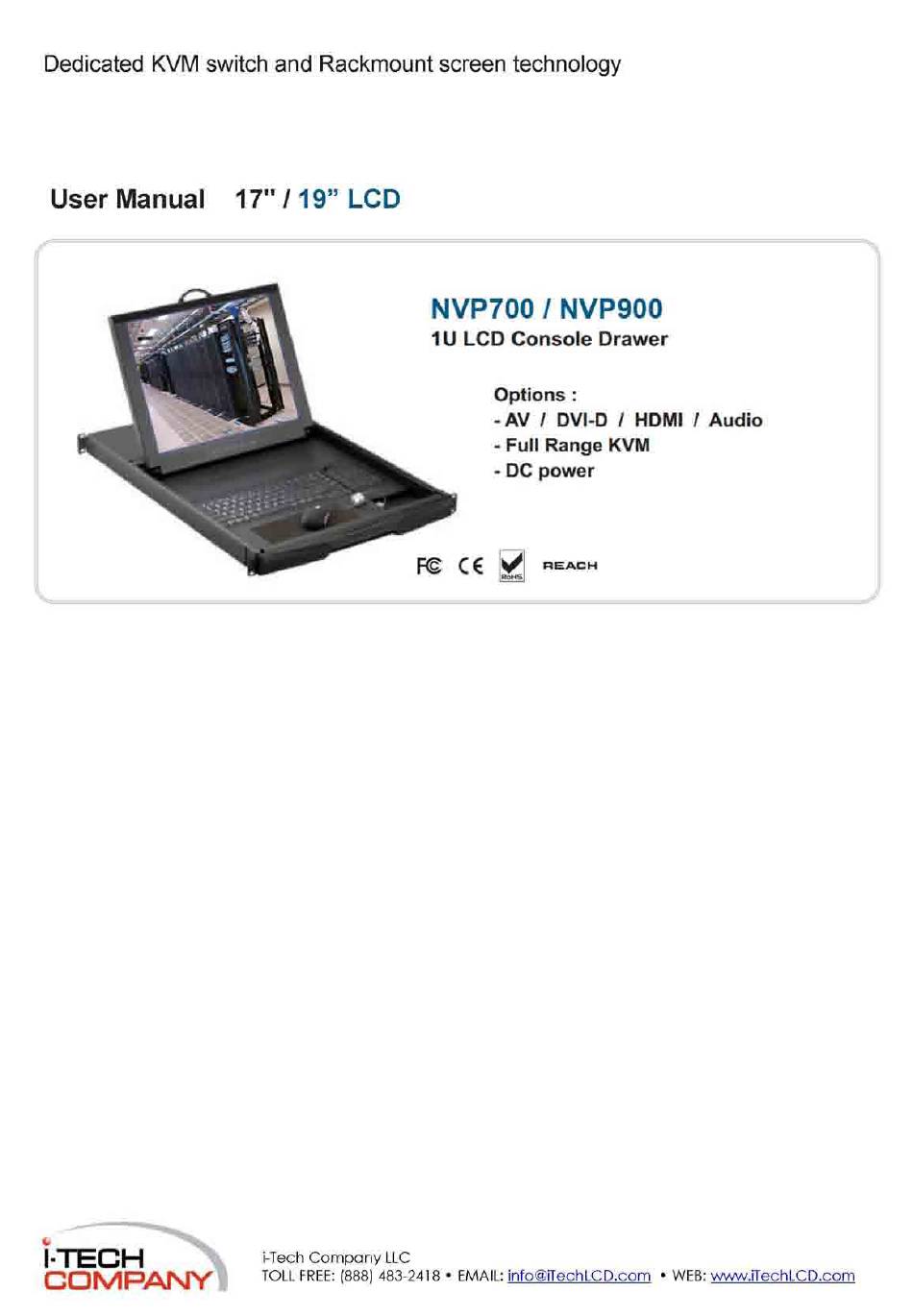

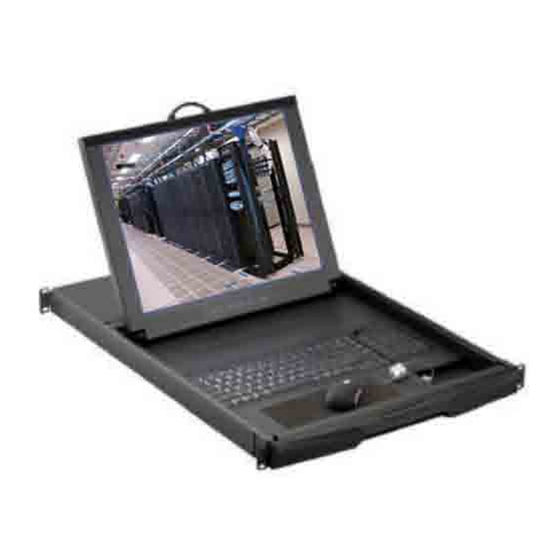

- Page 1 Dedicated KVM switch and Rackmount screen technology User Manual 17" / 19” LCD i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > NVP700 / NVP900 Package Content Structure Diagram & Dimension Installation P. 3 Connection < Part. 2 > Specifications / O S D Product Specifications Keyboard / Mouse Specifications On-screen Display Operation ( O S D ) <... - Page 4 Contents < Part. 4 > KVM Integration 32-port Local Remote 8-port 16-port MC1116 MC1132 MC2116 MC2132 Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM Matrix CAT6 KVM MC0116 MC0132 MC0216 - MC0232 MC0316 MC0332 Local Remote...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Content
< Part 1 > < 1.1 > Package Content NVP700 or NVP900 - WOM-01 wired mini USB optical mouse X 1 - NE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 7 Weight Weight (W x D x H) 595 x 860 x 140 mm 14.3 kg 19.1 kg 442 x 650 x 44 mm NVP700 series 23.4x33.9x5.5" 31.5 1 b 42 lb 17.4x25.6x1.73" 595 x 910 x 140 mm 15.3 kg 20.1 kg...
-
Page 8: Installation
nstall Installation Slides Step O Insert the left and right rear mounting brackets into the LCD console drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■... -
Page 9: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer « <m NE-6 Combo NE-6 Combo KVM cable KVM cable PS/2 server USB server isnoi <^—w^urr i n j ^ g V ; ^ S ! wm @©... -
Page 10: Product Specifications
< Part 2 > < 2.1 > Product Specifications NVP700 NVP900 Manufacturer Panel Size ( diagonal) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280x1024 1280x1024 Brightness (typ. ) Contrast Ratio (typ. ) - Page 11 5-90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5-500Hz 1G RMS random NVP700 NVP900 Product ( W x D x H ) 4 4 2 x 6 5 0 x 4 4 mm 442 x 700 x 44 mm 17.4x25.6x1.73 inch 17.4x27.6x1.73 inch...
-
Page 12: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard WOM-01 Wired mini USB optical mouse option: WOM-02 Wireless USB optical mouse 55 ± 5g Key force Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux/ Mac Supporting layouts... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) t> Membrane Switch Function Turn the monitor on or off DCZI Display the OSD menu □ □ D l = l Act as an Enter key to select screen setting options A V <... - Page 14 < 2.3 > On-screen Display Operation ( OSD ) Ver: G56SN20SSTD701 1024x768 59.8Hz Image Brightness Contrast Color Temp User 0 255 I ^ ^ M Green Q 255 Blue Q 255 Adjust: Select: ♦ + Set: ®/i=i Exit: t OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry:...
- Page 15 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Either HDMI or DVI-D can be selected.
- Page 16 O © 0 O L n j - L * * * Option excludes 1 x power cord and 1 x AC power adapter l-TECH i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com WEB: www.iTechLCD.com COMPANY P.11...
