NVP2D/3D User Manual
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
INDUSTRIAL DISPLAY SOLUTIONS
NVP2DW17e-4k-L
NVP2DW17e-L
NVP2DW17Me-L
NVP2DW17Xe-L
NVP2D19e-L
info@itechlcd.com

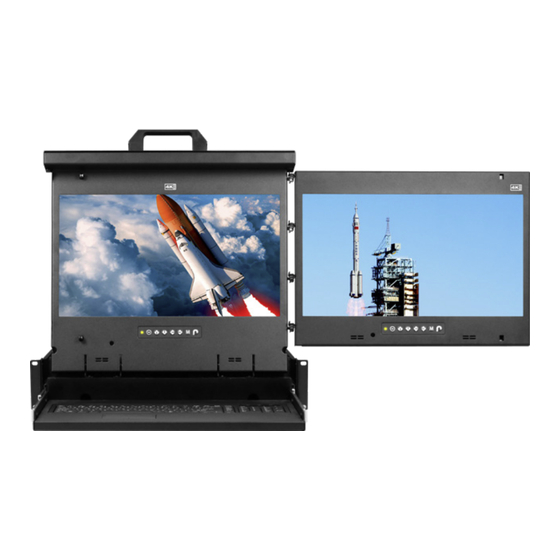

2U Multi-Display Console Drawer
NVP3DW17e-4k
NVP3DW17e
NVP3DW17Me
NVP3DW17Xe
NVP3D19e
• WEB:
www.iTechLCD.com
NVP2DW17e-4k-R
NVP2DW17e-R
NVP2DW17Me-R
NVP2DW17Xe-R
NVP2D19e-R
Modified Date: 07-13-2021
Advertisement
Related Manuals for I-Tech NVP2D Series
Summary of Contents for I-Tech NVP2D Series
- Page 1 INDUSTRIAL DISPLAY SOLUTIONS NVP2D/3D User Manual 2U Multi-Display Console Drawer NVP2DW17e-4k-L NVP3DW17e-4k NVP2DW17e-4k-R NVP2DW17e-L NVP3DW17e NVP2DW17e-R NVP2DW17Me-L NVP3DW17Me NVP2DW17Me-R NVP2DW17Xe-L NVP3DW17Xe NVP2DW17Xe-R NVP2D19e-L NVP3D19e NVP2D19e-R i-Tech Company LLC Modified Date: 07-13-2021 TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content NVP2DW17e-4k unit X 1 NVP2DW17e / NVP2DW17Me / NVP2DW17Xe / NVP2D19e X 1 - 6ft DP cable X 2 or 3 - USB (B) to (A) cable X 1 - 6ft DVI cable X 2 or 3 - Power adapter &... - Page 6 < 1.2 > NVP2DW17e-4k / NVP2DW17e / NVP2DW17Me / NVP2DW17Xe Dimension 1mm = 0.03937 inch Front View Triple display NVP2DW17e-4k NVP2DW17e Dual display ( LH mounted ) NVP2DW17Me NVP2DW17Xe Dual display ( RH mounted ) Rear View NVP2DW17e-4k NVP2DW17e / NVP2DW17Me / NVP2DW17Xe DVI-D Power Power...
- Page 7 < 1.2 > NVP2D19e Dimension 1mm = 0.03937 inch Front View Triple display NVP2D19e Dual display ( LH mounted ) Dual display ( RH mounted ) Rear View DVI-D Power Keyboard Central Mouse Left Right Side View 103.5 559.7 Top View Product Dimension Packing Dimension Gross...
- Page 8 < 1.3 > Installation - How to install Installation Slides Step ■ The left and right rear mounting brackets are attached to the Multi-display console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. ■...
- Page 9 < 1.3 > Installation - How to Use the Multi-Display Drawer Step ■ Unlock the key cylinder to 3 o’clock direction. Step ■ Hold the handle and slide out the drawer. Step Step ■ Flip up the LCD to a suitable angle. Step ■...
- Page 10 < 1.3 > Installation - How to Use the Multi-Display Drawer Step ■ Operate the multi-display drawer. Step ■ Close the Left Right display. ■ Flip down the LCD completely. Step Step ■ Must completely extend the drawer before returning it to the park position. ■...
- Page 11 < 1.3 > Installation - How to Use the Slides Figure 1. ■ A purple release button is located on the front of the slide. ( shown in Figure 1 ). ■ Pull and hold both side release buttons when Figure 2.
- Page 12 < 1.4 > NVP2DW17e-4k connection to DP Server Multi-display Console Drawer Power Keyboard Central Central Mouse Left Left Right Right USB type B DP cable USB (B) to (A) x 2 or 3 cable x 1 USB type A DP server * DP cable x 2 and USB (B) to (A) cable x 1 for dual display Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such...
-
Page 13: Usb Server
< 1.4 > NVP2DW17e / NVP2DW17Me / NVP2DW17Xe / NVP2D19e connection to USB Server Mult-display Console Drawer DVI-D Power Keyboard Central Mouse Left Right DVI cable USB KB cable x 1 x 2 or 3 USB server * DVI cable x 2 and USB KB cable x 1 for dual display Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. - Page 14 < Part 2 > < 2.1 > Product Specifications - NVP2DW17e-4k NVP2DW17e-4k Panel Native Resolution 3840 x 2160@60Hz Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms )
- Page 15 < 2.1 > Product Specifications - NVP2DW17e-4k Physical Product ( W x D x H ) 441.6 x 550 x 88 Specification inch 17.4 x 21.7 x 3.5 Packing ( W x D x H ) 580 x 683 x 197 inch 22.8 x 26.9 x 7.8 Triple display...
- Page 16 < 2.1 > Product Specifications - NVP2DW17e / NVP2DW17Me NVP2DW17e NVP2DW17Me Panel Native Resolution 1920 x 1080 1920 x 1080 Panel Size ( diagonal ) 17.3" 17.3" Standard Brightness ( cd/m² ) High Brightness ( cd/m² ) - Option 1000 Contrast Ratio ( typ.
- Page 17 < 2.1 > Product Specifications - NVP2DW17e / NVP2DW17Me Physical Product MRK-F17 441.6 x 550 x 88 Specification ( W x D x H ) inch 17.4 x 21.7 x 3.5 MRK-MF17 441.6 x 600 x 88 inch 17.4 x 23.6 x 7.8 Packing ( W x D x H ) 580 x 683 x 197 inch...
- Page 18 < 2.1 > Product Specifications - NVP2DW17Xe / NVP2D19e NVP2DW17Xe NVP2D19e Panel Native Resolution 1920 x 1200 1280 x 1024 Panel Size ( diagonal ) 16.2" 19" Standard Brightness ( cd/m² ) High Brightness ( cd/m² ) - Option 1000 Contrast Ratio ( typ.
- Page 19 < 2.1 > Product Specifications - NVP2DW17Xe / NVP2D19e Physical Product MRK-X17 441.6 x 550 x 88 Specification ( W x D x H ) inch 17.4 x 21.7 x 3.5 MRK-19 441.6 x 600 x 88 inch 17.4 x 23.6 x 7.8 Packing ( W x D x H ) 580 x 683 x 197 inch...
- Page 20 < 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States...
-
Page 21: Keyboard Features
< 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts. -
Page 22: How To Use "S" Keyboard
< 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■... -
Page 23: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 24 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 25 < 2.3 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to NVP2DW17e / NVP2DW17Me PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )
- Page 26 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 27 < 3.2 > Options : HDMI video input NVP2DW17e-4k : HDMI 2.0 ( HDCP 2.2 ) N V P 2D W 1 7 e / N V P 2D W 17 M e : HDM I 1 . 4 ( HDCP 1.4 ) DP 1.0 ( HDCP 1.3 ) NVP2DW17Xe : HDMI 1.4...
- Page 28 < 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specification NVP2DW17e-4k NVP2DW17e NVP2DW17Me NVP2DW17Xe NVP2D19e Model TPC-10 TCB e-Capacitive Multi-touch Technology Projected Capacitive Capacitive Touch Point Single Input Type Finger or Capacitive Stylus Finger Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±...
- Page 29 TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 30 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 31 Intentionally Left Blank...
