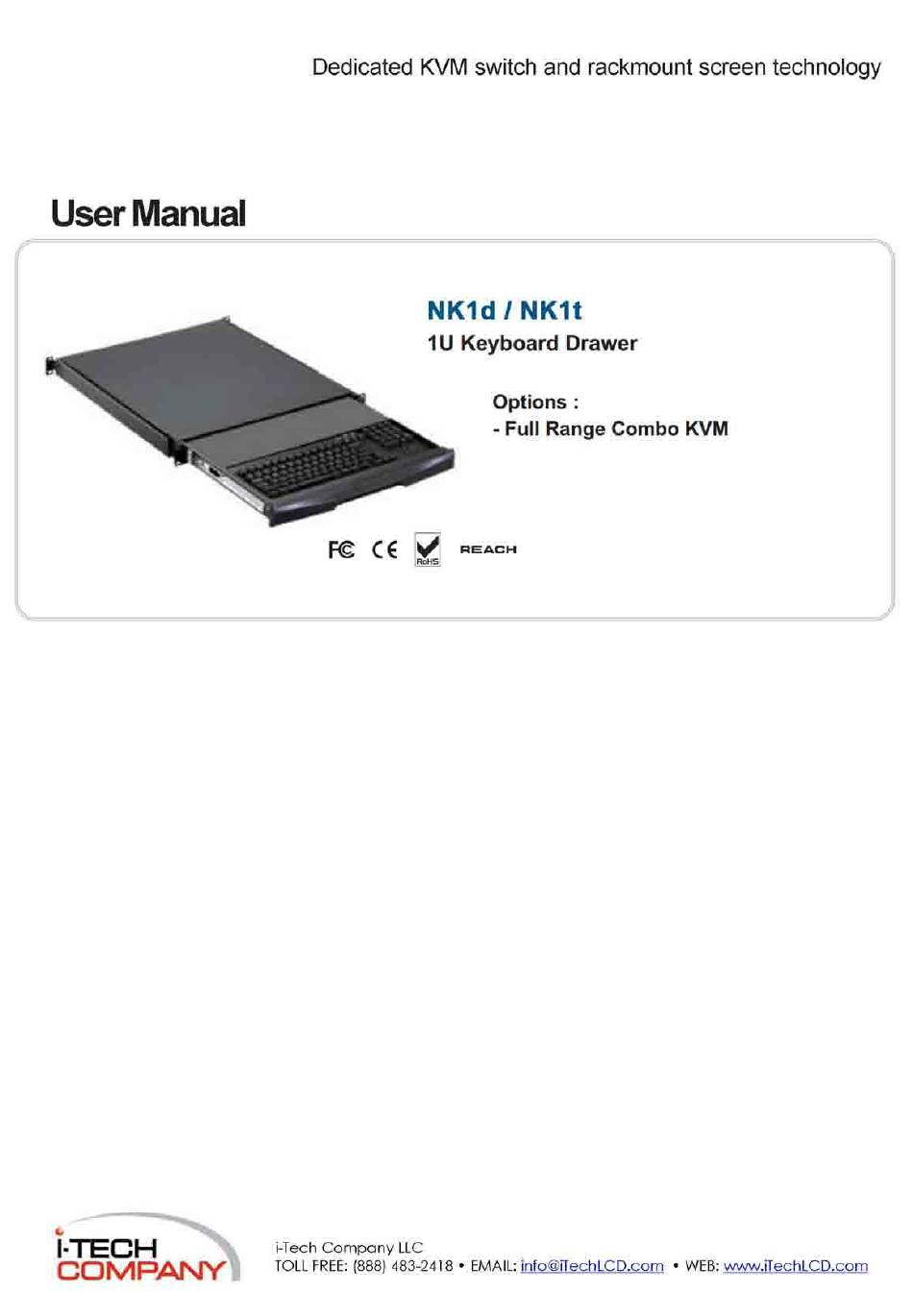

- Page 1 Dedicated KVM switch and rackmount screen technology User Manual NK1d/NK1t 1U Keyboard Drawer Options : - Full Range Combo KVM F € C € REACH i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 4 Contents < Part. 1 > NK1d / NK1t Package Content P. 1 Structure Diagram & Dimension P.1 - 2 P. 3 Installation Connection P. 4 < Part. 2 > Specifications Keyboard / Mouse Specifications Environmental Conditions P. 6 < Part. 3 >...
- Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 Gross Model (W x D x H) (W x D x H) Weight Weight 441.6x550x44 mm 574 x 743 x 95 mm 10.4 kg 13.1 kg NK1d/NK1t 17.4x21.7x1.73" 22.6x29.3x3.7" 22.9 lb 28.8 lb £L The weight varies with KVM options.
- Page 7 nstall Installation Slides Step O Insert the left and right rear mounting bracket into the keyboard drawer. Step O Measure the depth of the front and rear mounting rails. Align each rear mounting bracket to a suitable length. Step O Complete the installation ■...
- Page 8 < 1.4 > Connection to PS/2 or USB Server Keyboard drawer Keyboard drawer « <m KC-3 Combo KC-3 Combo KB mouse cable KB mouse cable ■CoJ USB server PS/2 server isnoi <^—w^un- inj^gTTT; ^ S ! Wm @© < 1.4 > Connection to external KVM LCD console drawer LCD console drawer KVM <^>...
- Page 9 < Part 2 > < 2.1 > Keyboard / Mouse Specifications Compact keyboard integrated with touchpad ■M ' :J:: ,jL] ' ■ ~ \ ;=s= ■2 U PgDnl CZIIZZI I d I Compact keyboard integrated with trackball " Pgllf 15 t f BanDQQQDHQQ^ |2 rf PgDn...
- Page 10 10G acceleration (11ms duration) Shock 5~500Hz 1G RMS random Vibration l-TECH i-Tech C o m p a n y LLC COMPANY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: w w w . i T e c h L C D . c o m...
