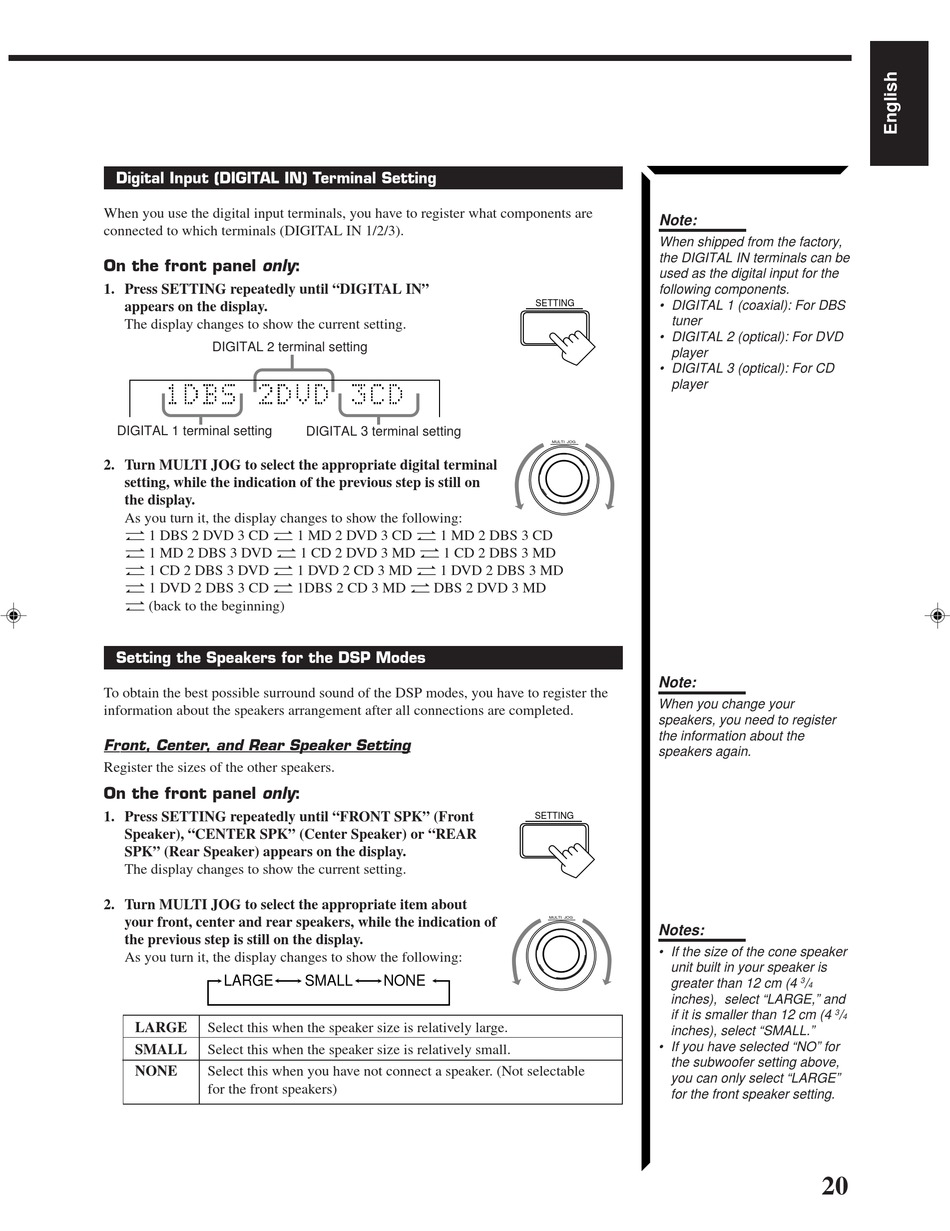

Digital Input (DIGITAL IN) Terminal Setting

When you use the digital input terminals, you have to register what components are
connected to which terminals (DIGITAL IN 1/2/3).
On the front panel only :
1. Press SETTING repeatedly until "DIGITAL IN"
appears on the display.
The display changes to show the current setting.
DIGITAL 2 terminal setting
DIGITAL 1 terminal setting
2. Turn MULTI JOG to select the appropriate digital terminal
setting, while the indication of the previous step is still on
the display.
As you turn it, the display changes to show the following:
" 1 DBS 2 DVD 3 CD " 1 MD 2 DVD 3 CD " 1 MD 2 DBS 3 CD
" 1 MD 2 DBS 3 DVD " 1 CD 2 DVD 3 MD " 1 CD 2 DBS 3 MD
" 1 CD 2 DBS 3 DVD " 1 DVD 2 CD 3 MD " 1 DVD 2 DBS 3 MD
" 1 DVD 2 DBS 3 CD " 1DBS 2 CD 3 MD " DBS 2 DVD 3 MD
" (back to the beginning)

Setting the Speakers for the DSP Modes

To obtain the best possible surround sound of the DSP modes, you have to register the
information about the speakers arrangement after all connections are completed.
Front, Center, and Rear Speaker Setting
Register the sizes of the other speakers.
On the front panel only :
1. Press SETTING repeatedly until "FRONT SPK" (Front
Speaker), "CENTER SPK" (Center Speaker) or "REAR
SPK" (Rear Speaker) appears on the display.
The display changes to show the current setting.
2. Turn MULTI JOG to select the appropriate item about
your front, center and rear speakers, while the indication of
the previous step is still on the display.
As you turn it, the display changes to show the following:
LARGE
LARGE Select this when the speaker size is relatively large.
SMALL Select this when the speaker size is relatively small.
NONE Select this when you have not connect a speaker. (Not selectable
for the front speakers)
VOLUME
DIGITAL 3 terminal setting
SMALL NONE
Note:
When shipped from the factory,
the DIGITAL IN terminals can be
used as the digital input for the
following components.
SETTING • DIGITAL 1 (coaxial): For DBS
tuner
• DIGITAL 2 (optical): For DVD
player
• DIGITAL 3 (optical): For CD
player
MULTI JOG
Note:
When you change your
speakers, you need to register
the information about the
speakers again.
SETTING
MULTI JOG
Notes:
• If the size of the cone speaker
unit built in your speaker is
greater than 12 cm (4
inches), select "LARGE," and
if it is smaller than 12 cm (4
inches), select "SMALL."
• If you have selected "NO" for
the subwoofer setting above,
you can only select "LARGE"
for the front speaker setting.
3 /
4
3
/
4
20
