Summary of Contents for John Lewis JLFFIN175

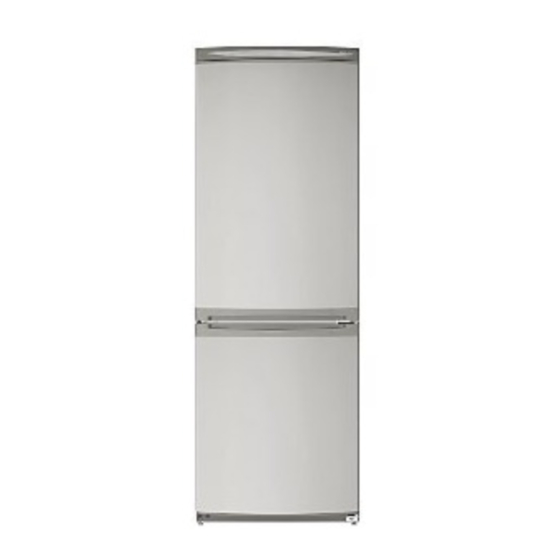

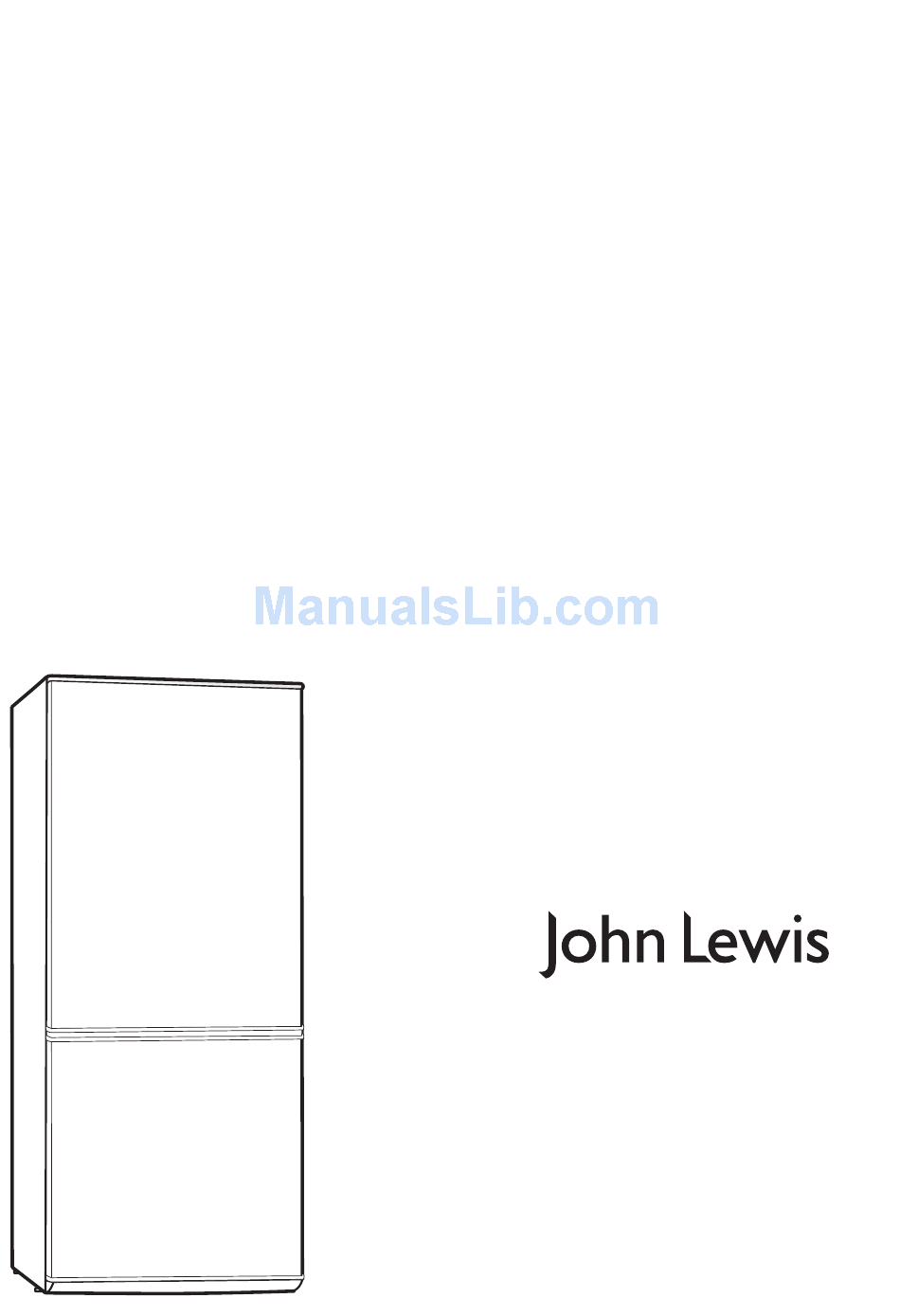

- Page 1 JLFFW175 JLFFIN175 Fridge-Freezer Instruction manual...
-
Page 2: Safety Information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. - Page 3 • The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet. • Do not use a mechanical device or any artificial means to speed up the thawing process. • Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the...
-
Page 4: Care And Cleaning
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. • Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. -
Page 5: Table Of Contents
Positioning the door shelves Removal of freezing baskets from the freezer Helpful hints and tips Normal Operating Sounds Care and cleaning Periodic cleaning Defrosting of the refrigerator Defrosting the freezer What to do if… Replacing the lamp For the installer Technical data... -
Page 6: Product Description
Product description A - Refrigerator B - Freezer Light box and temperature regulator Glass shelves Bottle rack Cooling surface Glass shelf Defrost water drain Salad/vegetable drawer Rating plate 10. Quick freeze drawer 11. Storing compartments 12. Defrost water drain 13. Adjustable feet 14. -
Page 7: Operation
Operation Switching on Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting. Switching off To turn off the appliance, turn the Temperature regulator to the "O" position. Temperature regulation The temperature is automatically regulated. To operate the appliance, proceed as follows: •... -
Page 8: Daily Use
(after cooling). Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. -
Page 9: Removal Of Freezing Baskets From The Freezer
To make these adjustments proceed as follows: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required. Helpful hints and tips Normal Operating Sounds • You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. -
Page 10: Hints For Freezing
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator. Hints for freezing To help you make the most of the freezing process, here are some important hints: •... -
Page 11: Care And Cleaning
Defrosting of the refrigerator Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor... -
Page 12: Defrosting The Freezer
It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole. -
Page 13: What To Do If
Problem The appliance is noisy. The compressor operates continually. Water flows on the rear plate of the refrigerator. Water flows into the refrigerator. Water flows on the ground. There is too much frost and ice. Important! There are some sounds during normal use (compressor, refrigerant circulation). -
Page 14: Replacing The Lamp
Problem The temperature in the appliance is too low. The temperature in the appliance is too high. The temperature in the refrigeration is too high. The temperature in the freezer is too high. The appliance does not operate. The lamp does not work. - Page 15 2. If necessary, adjust the door. Refer to "Installation". 3. If necessary, replace the defective door gaskets. Contact the Service Force Centre.
-
Page 16: Technical Data
Climate Ambient temperature class +10°C to + 32°C +16°C to + 32°C +16°C to + 38°C +16°C to + 43°C JLFFW175 JLFFIN175 1750 mm 1750 mm 595 mm 595 mm 658 mm 658 mm 20 h 20 h... -
Page 17: Electrical Connection
Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation. Electrical Connection Caution! Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 18: Permanent Connection
The appliance is supplied with a 13 amp plug fitted . In the event of having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Warning! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. -
Page 19: Door Reversibility
Door reversibility Warning! Before carrying out any operations, remove the plug from the power socket. Important! To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations. -
Page 20: Repairs - After Sales Service
Remove the stoppers (1) and move to the other side of the doors. Unscrew the upper hinge pivot (t1) and screw it on the opposite side. 10. Remove the left-hand cover pin of the middle hinge (m3,m4) and move to the other side. -
Page 21: Environmental Concerns
Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local John Lewis branch. - Page 24 John Lewis Partnership 171 Victoria Street London SW1E 5NN www. johnlewis.com 210621731-A-472010 925031571 925031572...
