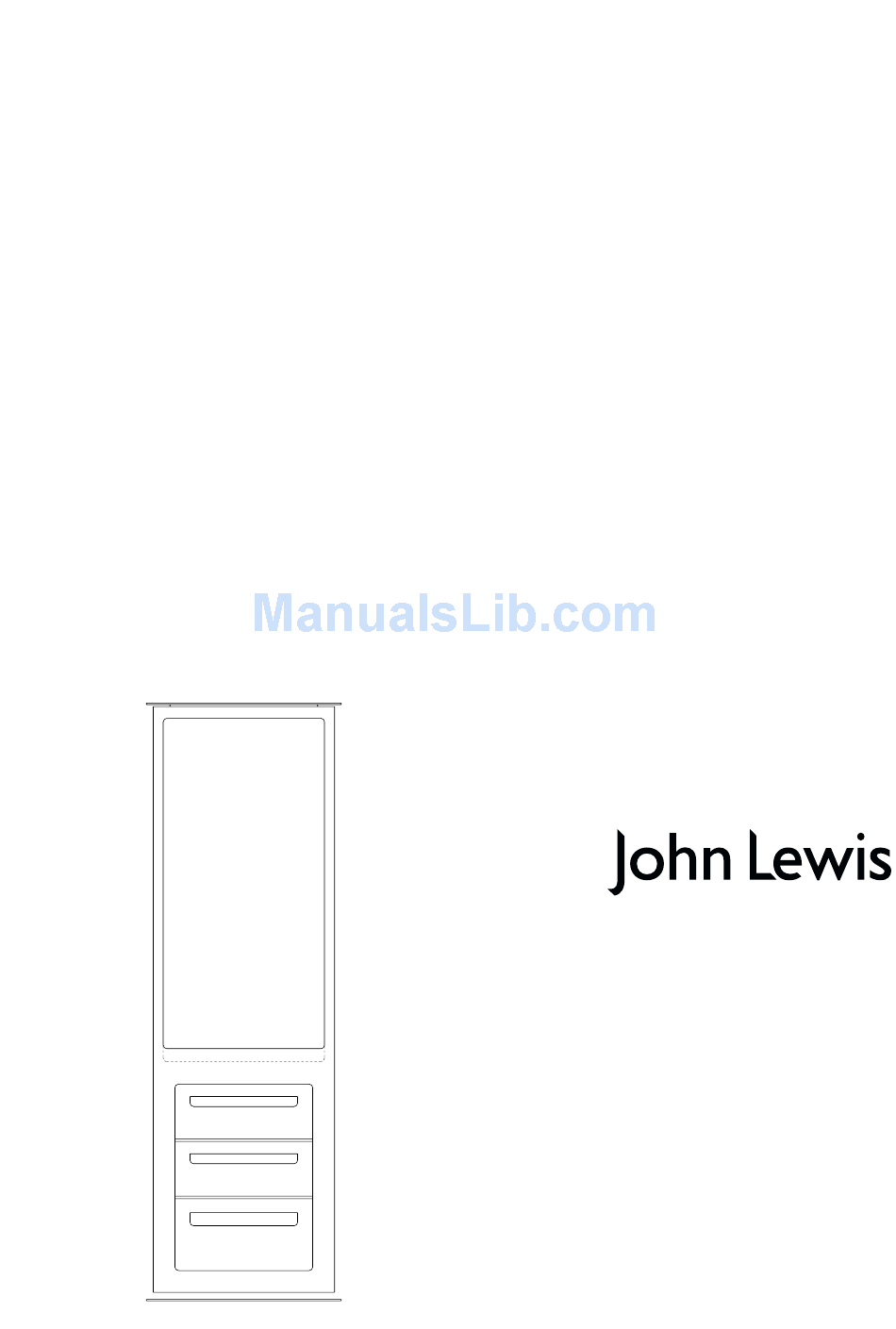

- Page 1 JLBIFF 1801 Built-in fridge freezer Instruction manual...
-
Page 2: Important Safety Information
These warnings have been provided in the interest of safety.You MUST read them carefully before use of installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased the appliance. Installation •... - Page 3 Environmental Information • After installation, please dispose of the packaging with due regard to safety and the environment. • When disposing of an old appliance, make it unusable, by cutting off the cable. Remove any door catches, to prevent small children being trapped inside. •...
-
Page 4: Table Of Contents
Using the freezer Before using Quick-freezing Freezing fresh food Frozen food storage Thawing Making ice cubes Cold accumulators Using the refrigerator Setting the temperature Fresh food refrigeration Normal operating sounds Movable shelves Positioning the door shelves Bottle holder Humidity control... -
Page 5: Description Of The Appliance
Description of the Appliance 1 Dairy compartments 2 Can storage shelves 3 Bottle storage shelf 4 Interior light 5 Storage shelves 6 Bottle holder 7 Water discharge hole 8 Glass shelf with Humidity control filter 9 Salad crispers 10 Control panel 11 Frozen food storage compartments 12 Freezing fresh food compartment... -
Page 6: Technical Specification
Installation Technical Data Dimensions of recess Height Width Depth Dimensions of the appliance cavity Height Width Depth Fridge Gross capacity Fridge Net capacity Freezer Gross capacity Freezer Net capacity Electrical connections Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 7: Positioning
Shelf holders Your appliance is equipped with shelf retainers that make it possible to secure the shelves during transportation. To remove them proceed as follows: Raise the shelf from the back, push it in the direction of the arrow until it is freed and remove the retainers. -
Page 8: Building In
Building In The oven must be installed according to the instructions supplied on p. 6-11 and by qualified and competent personnel to the relevant National Standards. Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown. - Page 9 (I = short) (P = long) Apply the sealing strip pushing it between the refrigerator and the adjacent cabinet. Apply covers (C-D) on joint cover lugs and into hinge holes. Snap vent grille (B) and hinge cover (E) into position.
- Page 10 Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes.After having drilled holes, fix the guide with the screws supplied. Fix cover (Hc) on guide (Ha) until it clips into place Open the appliance door and the furniture door at 90°.
- Page 11 Fix cover (Hd) on guide (Hb) until it clips into place. If the appliance is fixed to the side of the kitchen unit, simply slacken the screws in fixing brackets (E), move the brackets as shown in the figure and re- tighten the screws.
-
Page 12: Control Panel
The Control Panel Push button ON/OFF light - Green Thermostat control knob Quick freeze light - Amber Quick freeze switch A. Pilot light The operation light is illuminated continuously, to show that the appliance is on. B.Thermostat control knob Turn the thermostat control knob clockwise to required setting. -
Page 13: Using The Freezer
Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through. -
Page 14: Setting The Temperature
Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them. To help you use your refrigerator correctly, here are some more useful hints: Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crispers. -
Page 15: Movable Shelves
Movable shelves The walls of the refrigerator have runners so that the shelves can be positioned as desired . For better use of space, the front half-shelves can lie over the rear ones. Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be adjusted in height.To make... -
Page 16: Hints And Tips
• Do not push food together too much, try to allow air to circulate around each item. • Do not store food uncovered. • Remove suspect food from your refrigerator and clean, refer to ‘Maintenance and Cleaning’. • Ensure that food placed in the freezer is dated and labelled and used in date order to ensure that food is consumed at its best. -
Page 17: Maintenance And Cleaning
To avoid defrost water overflowing into the fridge, periodically clean the water discharge hole in the centre of the V shaped drip collector at the back of the refrigerator compartment behind the fruit and vegetable drawer. Use the defrost cleaner provided which you will find already inserted into the discharge hole. -
Page 18: Something Not Working
Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force repair agent. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 19: Repairs - After Sales Service
Repairs - After Sales Service Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Force Centre and always insist on genuine spare parts. If your appliance is not performing satisfactorily;... - Page 20 John Lewis Partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com 02/06 2223 208-71...
