Summary of Contents for John Lewis JLUCFR6012

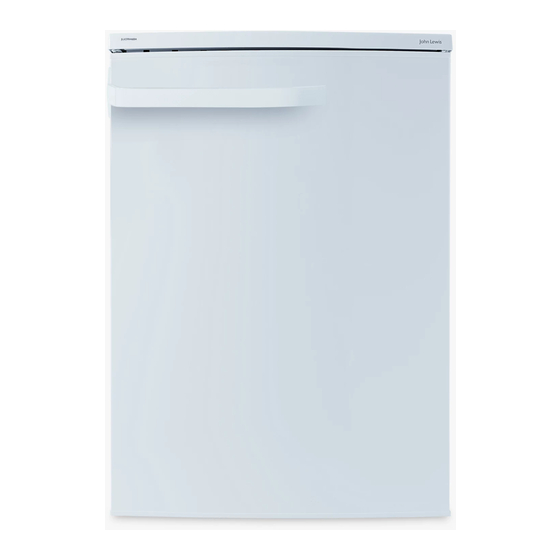

- Page 1 Refrigerator JLUCFR6012 User Manual...
-
Page 2: Table Of Contents
Contents Hints for refrigeration Safety information Hints for freezing Children and vulnerable people safety Hints for storage of frozen food General Safety Care and cleaning Safety instructions General warnings Installation Cleaning the interior Electrical connection Periodic cleaning Defrosting of the refrigerator Internal lighting Defrosting the freezer Care and cleaning... -
Page 3: Safety Information
Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. - Page 4 By clients in hotels, motels, bed and breakfast and other – residential type environments Keep ventilation openings, in the appliance enclosure or in the built- • in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the •...
-
Page 5: Safety Instructions
Safety instructions • Do not use multi-plug adapters and extension Installation cables. • Make sure not to cause damage to the electrical Warning! Only a qualified components (e.g. mains plug, mains cable, person must install this compressor). Contact the Authorised Service appliance. -
Page 6: Internal Lighting
• Do not put flammable products or items that • Cut off the mains cable and discard it. are wet with flammable products in, near or on • Remove the door to prevent children and pets the appliance. to be closed inside of the appliance. •... -
Page 7: Operation
Operation Switching on Caution! If the ambient temperature is high or the 1. Insert the plug into the wall socket. appliance is fully loaded, and 2. Turn the Temperature regulator clockwise to a the appliance is set to the medium setting. lowest temperatures, it may run continuously causing frost Switching off... -
Page 8: Daily Use
Daily use Warning! Refer to Safety chapters. Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Freezing fresh food The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. -
Page 9: Thawing
In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling). -
Page 10: Hints And Tips
Hints and tips Normal operating sounds Hints for refrigeration The following sounds are normal during Useful hints: operation: • Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the • A faint gurgling and bubbling sound from coils vegetable drawer. -
Page 11: Hints For Storage Of Frozen Food
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt; • it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time. -
Page 12: Care And Cleaning
Care and cleaning Warning! Refer to Safety Caution! Take care of not to chapters. damage the cooling system. Caution! When moving the General warnings cabinet, lift it by the front edge to avoid scratching the Caution! Unplug the appliance floor. before carrying out any maintenance operation. -
Page 13: Defrosting The Freezer
remove pieces of the ice that break away before defrosting is complete. 4. Clean and fully dry the freezer. 5. Switch on the appliance. 6. Set the temperature knob to highest coldness and run the appliance for two or three hours using this setting. -
Page 14: Troubleshooting
Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Solution The appliance does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to Connect the mains plug to the the mains socket correctly. -
Page 15: Closing The Door
Problem Possible cause Solution Food products are not wrapped Wrap the food products better. properly. Temperature is set incorrectly. Refer to "Operation" chapter. Water flows into the refrigerator. The water outlet is clogged. Clean the water outlet. Food products prevent that water Make sure that food products do flows into the water collector. -
Page 16: Replacing The Lamp
Replacing the lamp The appliance is equipped with a longlife LED interior light. Caution! Disconnect the plug from the mains socket. 1. Remove the screw from the lamp cover. 2. Remove the lamp cover (refer to the illustration). 3. Replace the lamp with one of the same power and shape, specifically designed for household appliances. -
Page 17: Installation
Installation The appliance should be installed well away Warning! Refer to Safety from sources of heat such as radiators, boilers, chapters. direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned Positioning below an overhanging wall unit, the minimum distance between the top of the cabinet and the... -
Page 18: Door Reversibility
6. Unscrew the top door hinge pin of the appliance then screw it back on the other side. 7. Fit the appliance door on the upper door hinge pin. 8. Remove the lower hinge. Put over the pin in the direction of the arrow. Door reversibility Warning! Before carrying out any operations, remove the... -
Page 19: Reversing Of The Freezer Door
Do a final check to make sure that: • All screws are tightened. • The magnetic seal adheres to the cabinet. • The door opens and closes correctly. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. -
Page 20: Electrical Connection
Electrical Connection Caution! Any electrical work required to install this A Green and Yellow: Earth appliance should be carried out by a qualified electrician C Brown: Live or competent person. E Blue: Neutral Warning! This appliance must As the colours of the wires in the mains lead of be earthed. - Page 21 plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used. Warning! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that it is disposed of safely. Refrigerator User Manual...
-
Page 22: Technical Data
Technical data Technical data Height Width Depth Rising time Hours Voltage Volts 230 - 240 Frequency The technical information is situated in the rating plate, on the external or internal side of the appliance and in the energy label. Refrigerator User Manual... -
Page 23: Repairs - After Sales Service
Shopping is easy with John Lewis Shops manual, the next step is to contact John Lewis John Lewis, Aberdeen 01224 625 000 technical support on: John Lewis, Basingstoke 01256 406200... - Page 24 John Lewis, Croydon 020 8662 4730 John Lewis, Stratford 020 8532 3500 John Lewis, Horsham 01403 214 740 John Lewis, The Trafford Centre 0161 491 4040 John Lewis, Ipswich 01473 275 850 John Lewis, Watford 01923 244 266 John Lewis, Newbury 01635 263 980...
- Page 25 ENVIRONMENTAL CONCERNS marked with the symbol with the household Recycle materials with the symbol . Put the waste. Return the product to your local packaging in relevant containers to recycle it. recycling facility or contact your municipal office. Help protect the environment and human health by recycling waste of electrical and electronic appliances.
- Page 26 Refrigerator User Manual...
- Page 27 Refrigerator User Manual...
- Page 28 212001980-A-472017 ( Subject to change without notice. )
