Summary of Contents for John Lewis JLFFW2001

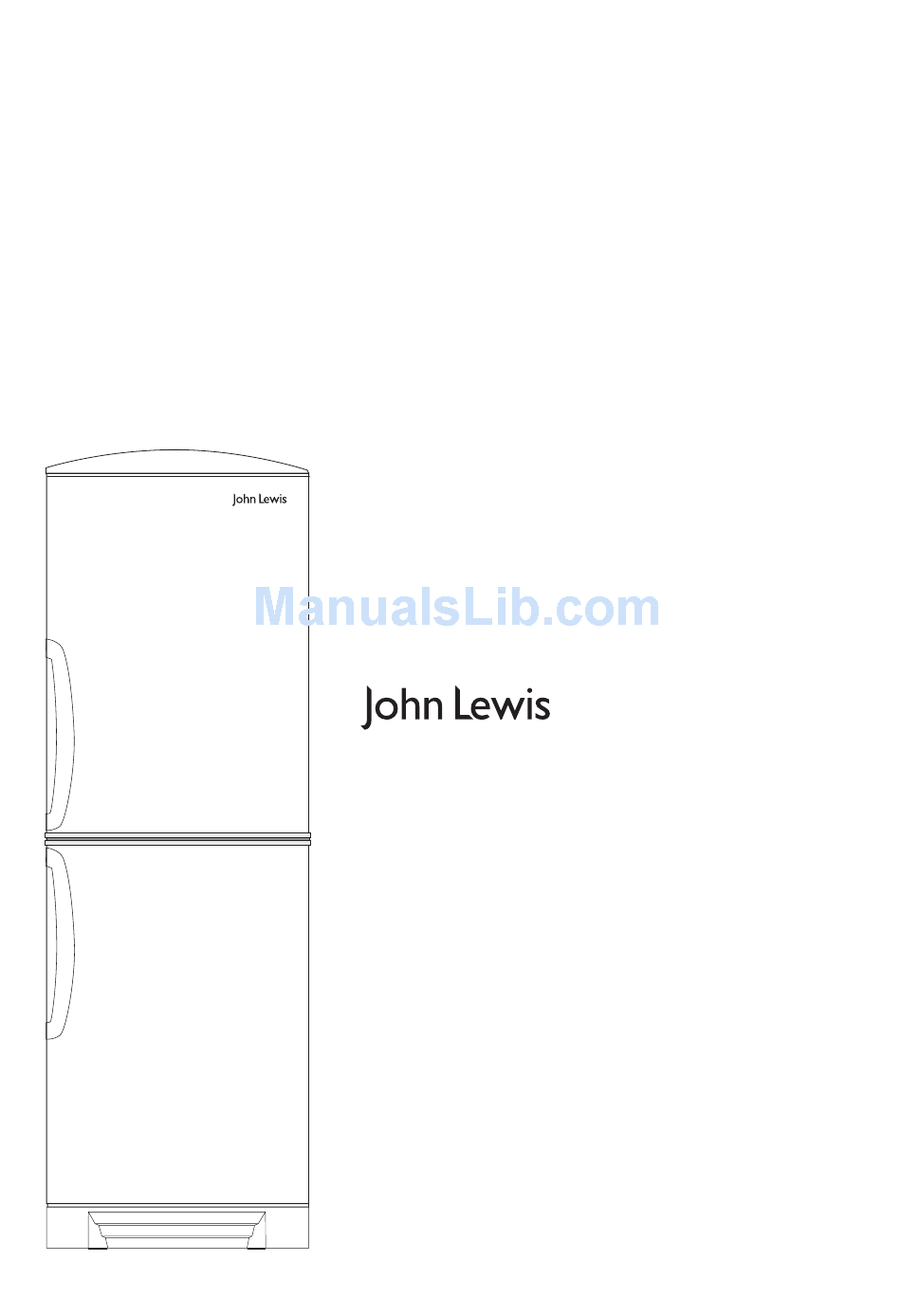

- Page 1 JLFFW2001 - JLFFS2002 Fridge-Freezer Instruction Booklet 214.3679.60...
-
Page 3: Table Of Contents
Control Panel Using the Appliance Before Use Starting the Appliance Freezer Compartment Freezing Fresh Food Frozen Food Storage Refrigerator Compartment Fresh Compartment Food Storage Energy Saving Advice In the Event of a Power Failure Maintenance and Cleaning Something Not Working... -
Page 4: Safety Instructions
These warnings are provided in the interests of your safety. Ensure that you unders- tand them all before installing or using this appliance. If you are unsure of the mea- nings of these warnings contact the John Lewis Branch from which you purchased the appliance. -
Page 5: Description Of The Appliance
Description of Appliance Control Panel Bottle Rack Shelves Fruit/Vegetable drawer Fresh Box Fast freeze compartment Freezer Drawer Control Panel Freezer Temperature Control Door Alarm Temperature Alarm Butter and Cheese Compartment Door Storage Compartment Bottle Compartment Door Storage Compartment Fast Freezer Button ON/OFF Button Fridge Temperature Control... - Page 6 Thermostat Control The freezer and fridge thermostats control the tempe- rature inside the freezer and refrigerator respectively. The Freezer Temperature Control The freezer temperature control, regulates the tempe- rature within the freezer compartment. A change in the...
-
Page 7: Using The Appliance
Refrigerator Compartment This compartment is designed to store drinks and fresh food. The inner temperature is normally uniform and is kept cool by cold circulating air. -
Page 8: Food Storage
Food Storage Energy Saving Advice • Do not install the cabinet close to sources of heat, such as a cooker, dishwasher or radiator. • Locate the appliance in a cool well-ventilated room and make sure that the air openings of the cabinet are not obstructed. -
Page 9: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning work is carried out DISCONNECT the applian- ce from the ELECTRICITY supply. External Cleaning Wash the outer cabinet with warm soapy water. Do not use abrasive products. There may be sharp edges on the under- side of the product so care should be taken when cleaning. -
Page 10: Something Not Working
Something Not Working If your appliance is not operating correctly, carry out the following checks before contacting John Lewis Serviceplan. Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or ins- tallation a charge will be made, even if the appliance is under guarantee. -
Page 11: Normal Operating Sounds
Your first step is to contact our experienced warranty administrators on 08700107887 to receive service details. Service Force are the authorised repair agents for John Lewis branded domestic appliances. • When contacting our experienced warranty administrators, please quote the model and serial number, both of which are shown on the data plate which is located (on the left hand inside wall of the fridge behind the salad box. -
Page 12: Technical Specifications
Technical Specifications A distance of 56mm must exist between the appliance and the wall, to allow the door to be fully opened. The refrigeration system and the insulation of this appliance do not contain CFCs or HCFCs. Height (mm) Width (mm) Depth (mm) Power Supply Total Power Absorbed... -
Page 13: Installation
Installation Unpacking Remove all transit packaging. Positioning The appliance should be located in a well-ventilated, dry room. To ensure correct operation the appliance should: • Not be exposed to direct sunlight. • Not be installed next to radiators, cookers or other sources of heat. -
Page 14: Electrical Connection
Electrical Connection Any electrical work required to install this appliance must be carried out by a quali- fied electrician or competent person. This appliance must be earthed. The manufacturer declines any liability should these safety measures not be observed. Electrical Requirements Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate. -
Page 15: Door Reversal
Door reversal If you wish to change the opening direction of the doors, proceed as follows: 1. Open the freezer door. Remove the plinth (A) at the bottom of the appliance, by pushing downwards and pulling outwards. (See fig 5) 2. - Page 16 John Lewis partnership 171 Victoria Street London SW1E 5NN www.johnlewis.com...
