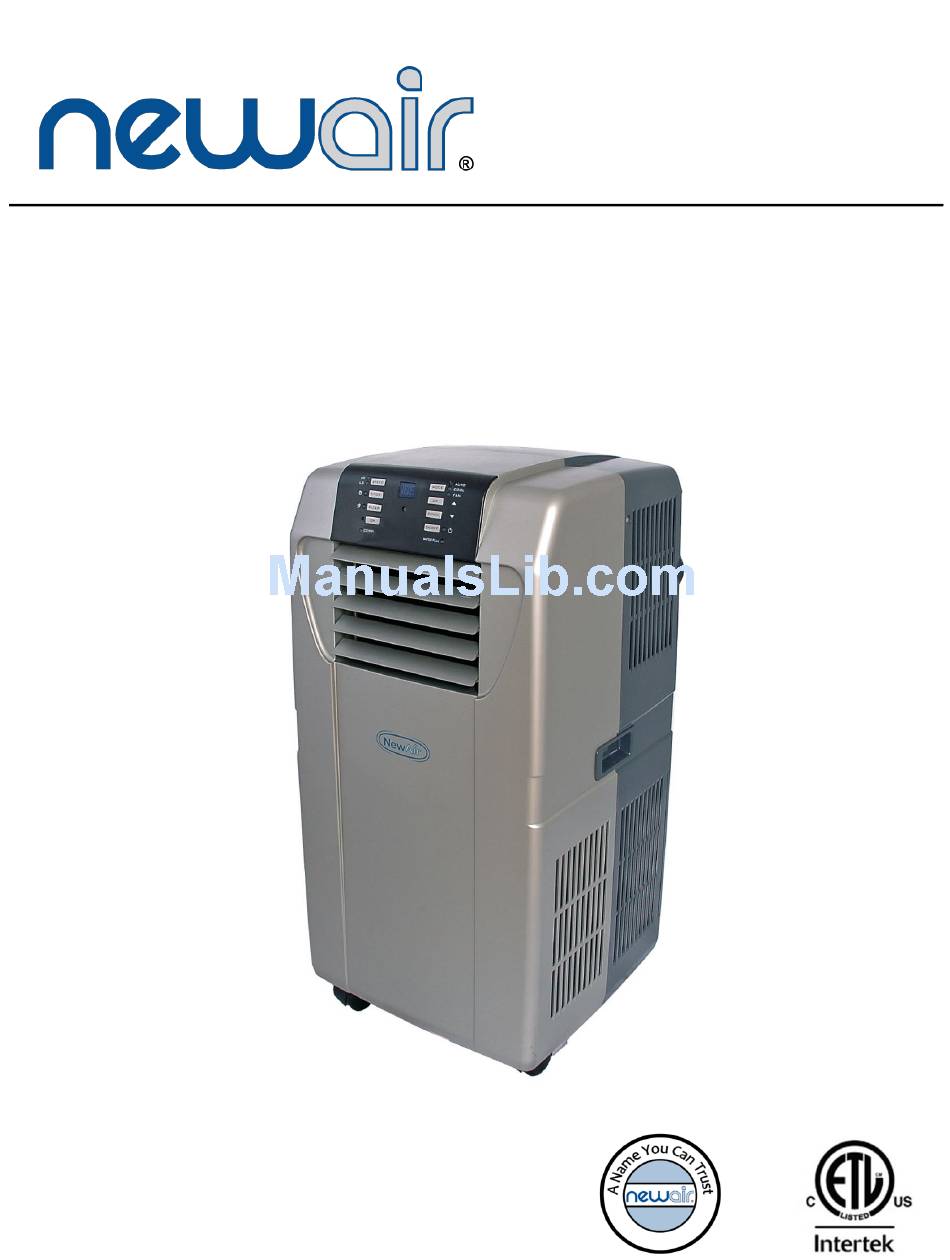

- Page 1 AC-12000 Portable Air Conditioner AC-12000E, AC-12000H OWNERS MANUAL Read and save these instructions.
- Page 2 AC-12000 Portable Air Conditioner AC-12000E, AC-12000H OWNERS MANUAL http://www.NewAir.com Read and save these instructions.
- Page 3 Count on NewAir. As a proud NewAir owner, welcome to our family. There are no robots here, real people shipped your product and real people are here to help you. Thank you for your purchase and remember NewAir, A Name You Can Trust.
-
Page 4: Table Of Contents
Continuous Drainage ............................13 Cleaning & Maintenance............................13 Cleaning Your Portable Air Conditioner ......................13 End of Season Storage ............................ 14 Troubleshooting ..............................15 Limited Manufacturer’s Warranty ........................16 SPECIFICATIONS . AC-12000E AC-12000H ODEL : 115V OLTAGE : 60Hz REQUENCY... -
Page 5: Safety Information & Warnings
If the power cord is damaged, it must be replaced by an electrician or specialized technician authorized by the manufacturer in order to prevent fire. Never use an extension cord to connect power to the unit. Count On NewAir... -
Page 6: Energy Saving Tips
Check to make sure the following parts are included: Air conditioner Activated carbon filter (C) Drainage Hose (E) Exhaust hose (A) Extendable window kit (2 pieces) Remote control (F) Hose adapter (B) 1 instruction manual http://www.NewAir.com... -
Page 7: Parts Diagram
The unit must be placed within reach of a properly rated grounded socket. Never place any obstacles around the air inlet or outlet of the unit. Allow 14 inches to 40 inches of space from the wall to the window for efficient air conditioning. Count On NewAir... -
Page 8: Positioning The Exhaust Hose
Avoid kinks and bends in the exhaust hose. These can cause moist air to accumulate, resulting in overheating and unexpected shut offs. The exhaust hose may be extended from 12 inches (300 mm) to 59 inches (1500mm), but for maximum cooling efficiency, use the shortest length possible. http://www.NewAir.com... -
Page 9: Installing The Activated Carbon Filter
4. Insert the activated carbon filter into the filter and attach holder. 5. Reattach the filter holder onto the filter (make sure the active carbon filters will be held properly between the two pieces). Insert the filter set into the unit. Count On NewAir... -
Page 10: Operating Instructions
In AUTO Mode, the air conditioner will automatically window will show ambient room temperatures adjust the fan speed depending upon the ambient ranging from 32°F to 122°F. temperature. 3. To turn the unit off, press the ON/OFF button again. http://www.NewAir.com... - Page 11 “E1” or “E2.” If either of these LOW speed. error messages appears, please contact the manufacturer or a service center. All of the above functions can be performed with the included remote control. The remote requires 2 AAA batteries to operate. Count On NewAir...
-
Page 12: Draining The Unit
5. Repeat until the water reservoir is completely empty. 6. Replace the water plug back into the drainage port and make sure it is firmly in place. 7. Turn the unit back on. The warning signal should be off. http://www.NewAir.com... -
Page 13: Continuous Drainage
Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, gasoline, detergents, chemically-treated cloths, or any other cleaning solutions to clean the air conditioner, as these can all potentially damage the unit’s housing. Count On NewAir... -
Page 14: End Of Season Storage
3. Clean or change the filter. 4. Unplug and wrap the power cord around the cord wrap as shown. Replace panel to keep cord in place. 5. Place the unit back in its original carton and store it in a clean, dry area. http://www.NewAir.com... -
Page 15: Troubleshooting
The compressor has overheated Wait for temperature to drop and then turn work. and shut off. the unit on again. NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF. UNAUTHORIZED REPAIRS CAN VOID THE WARRANTY AND ENDANGER THE UNIT. Count On NewAir... -
Page 16: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
