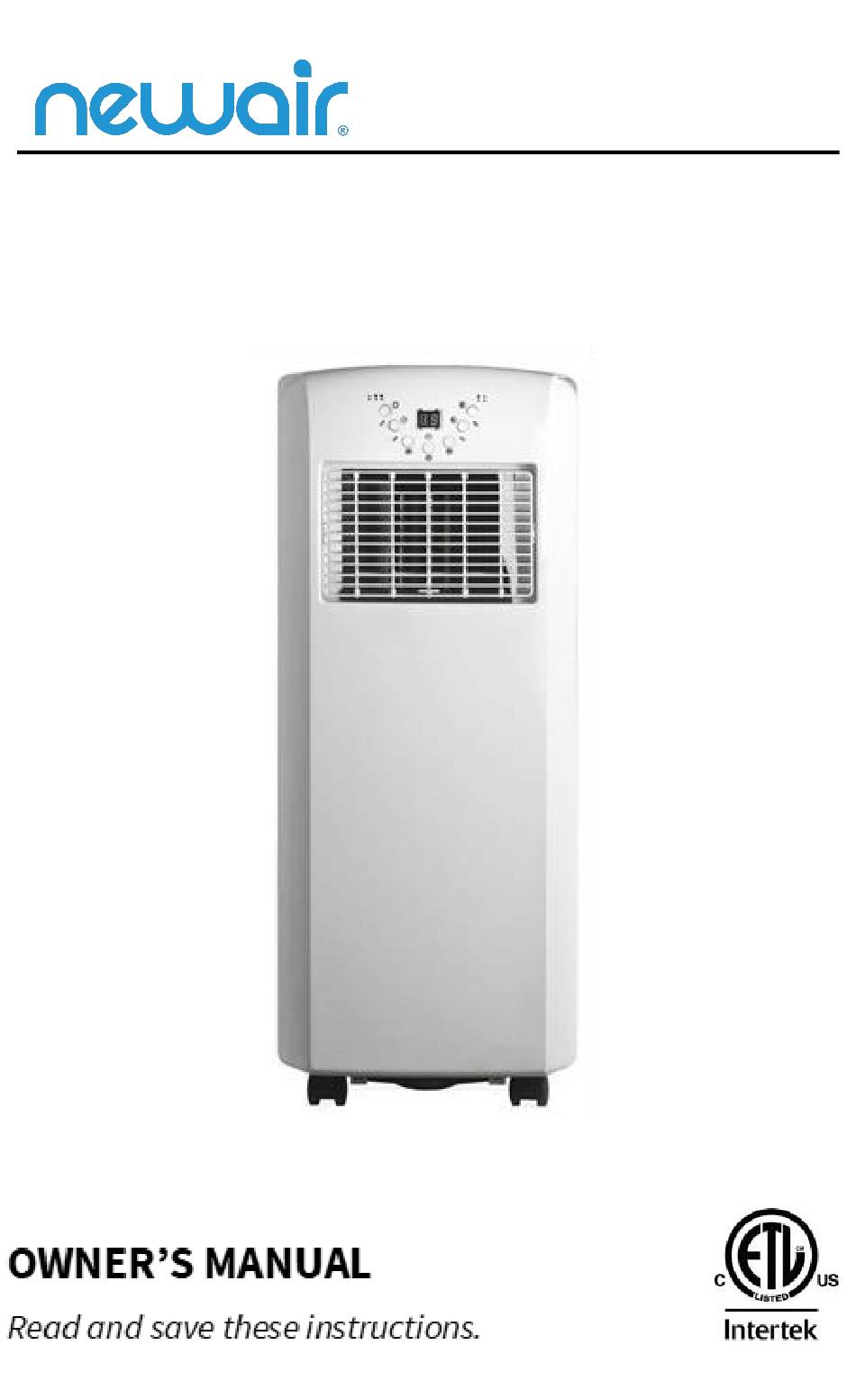

- Page 1 SKU: AC-10100E Portable Air Conditioner Manual v1.2...
-
Page 2: Table Of Contents
Safety Information & Warnings ................4 Parts List ....................... 5 Assembly Instructions ..................6 Operating Instructions ..................9 Cleaning And Maintenance ................15 Troubleshooting ....................16 Limited Manufacturer’s Warranty ..............17 SPECIFICATIONS AC-10100E ODEL NO 115V, 60Hz ATED OLTAGE (SACC) 5950 BTU/hr OOLING CAPACITY 874W/ 8.12A... -
Page 3: Register Your Product Online
REGISTER YOUR PRODUCT ONLINE Register Your NewAir Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up to date for safety, system updates and recall notifications... -
Page 4: Safety Information & Warnings
Close the doors and windows when unit is in use. • Keep filters clean. • The machine is to be used only for its prescribed purpose. The warranty will be void if any damage occurs when used differently than stated in this manual. SAVE THESE INSTRUCTIONS newair.com... -
Page 5: Parts List
15. PVC Window Kit 2 – for filling the open widow space 16. PCV Window Kit 3 – for filling the open window space & with hole for connection with exhaust hose 17. Continuous drainage tube 18. Active carbon filter 19. Remote control FIG 3 newair.com... -
Page 6: Assembly Instructions
1. Place the extendable slides in the window gap and adjust the length as you need. 2. Feed exhaust hose through the slide and the window so that spacer is held securely. This technique may also be used for sash windows. Note: Take care to maintain protection against intruders newair.com... - Page 7 The length of the exhaust pipe is specially designed according to the specification of this product. Do not replace or extend with different off branded parts as this could cause the unit to malfunction and void the manufacturer’s warranty. newair.com...
- Page 8 Attach the filter fixer to the filter frame (the active carbon filter should be held between the filter frame and filter fixer firmly). FIG.13 Insert the filter set (filter frame + active carbon filter + filter fixer ) into the back of the unit. FIG.14 newair.com...
-
Page 9: Operating Instructions
13. Low fan speed indicator 5. Timer operation indicator 14. Fan speed button 6. Timer button 15. Sleep mode indicator 7. Full water tank indicator 16. Sleep button 8. Temperature up button 17. Compressor indicator 9. Display window 18. Temperature down button newair.com... - Page 10 2. If the unit is in AUTO mode, it will choose the fan speed automatically according to the ambient temperature (the related indicators will light on), at this time, the speed switch is invalid. newair.com...
- Page 11 4. Please note, the sleep function is not available while the machine is working in AUTO or FAN mode. All the above functions can also be performed with the supplied remote control. This remote control requires 2pcs AAA batteries to operate. FIG 16 newair.com...
- Page 12 2. The cooling system will switch off if the ambient temperature is lower than the set one. The fan, however, keeps working on the set level. If the ambient temperature rises above the selected level, the cooling will work again. newair.com...
- Page 13 4. Replace the rubber plug and tighten the drain knob firmly once all the water has drained out. 5. Switch on the unit and check the Full Water indicator. If all the water has been removed from the reservoir, the indicator will not be flashing. Drain Hole newair.com...
- Page 14 1. The drain must be at or below the outlet level. 2. The Full Water indicator will not function when using an extension tube. 3. If you want to extend the water tube, you can connect it with another tube (OD: 18mm) newair.com...
-
Page 15: Cleaning And Maintenance
• Clean or change the filter. • Unplug and store the power cord as shown. • Place in the original carton or Power cord plastic cover for storage. FIG 22 newair.com... -
Page 16: Troubleshooting
• Make sure the unit is level on the floor. too noisy. • Wait for the temperature to drop and for the The compressor will not run. compressor to kick in. NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF newair.com... -
Page 17: Limited Manufacturer's Warranty
When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs.
