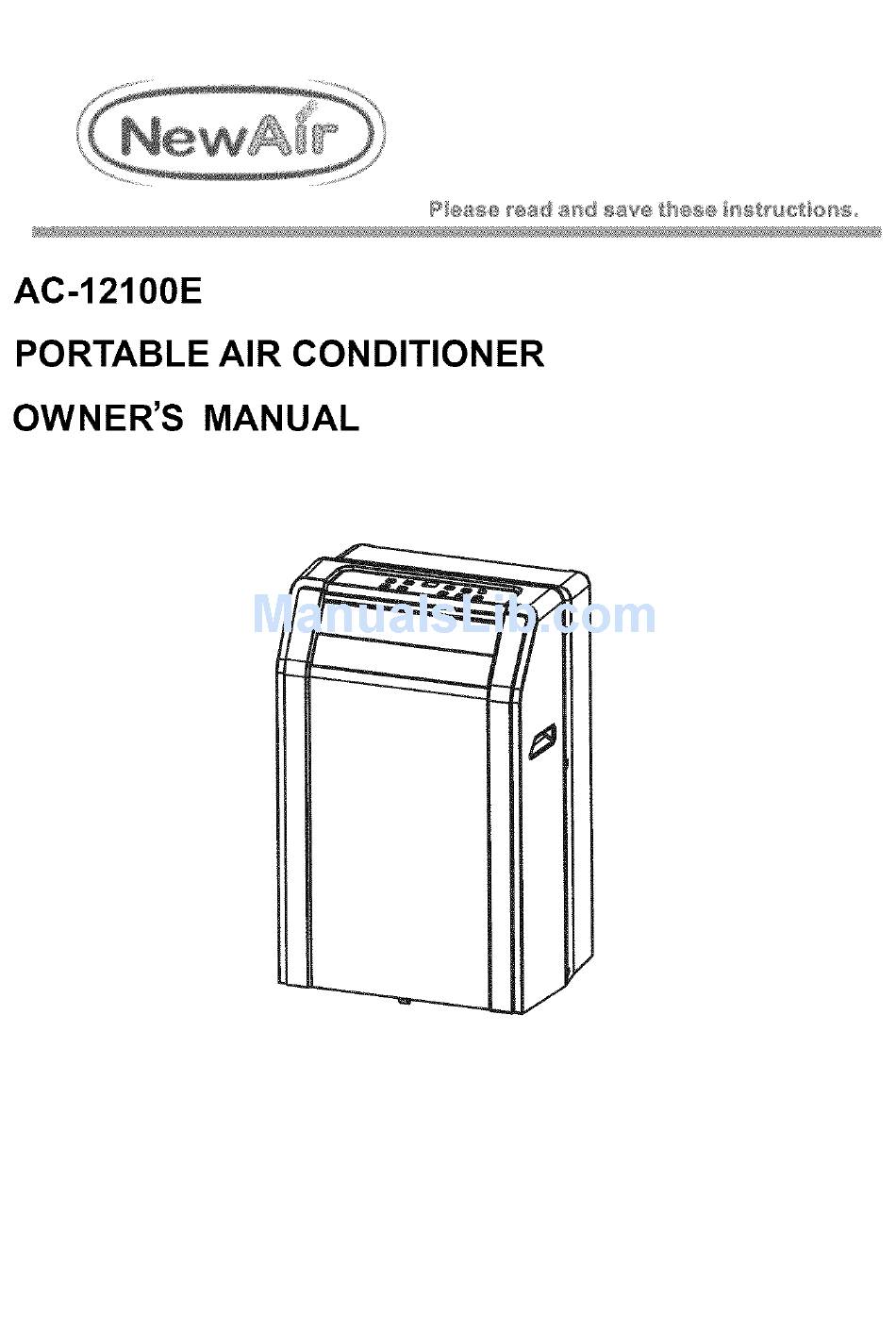

- Page 1 AC-12100E PORTABLE AIR CONDITIONER OWNER'S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Welcome Introduction ............................SAFETY PRECAUTIONS Safety rules ............................Operating condition ........................... Electrical information ......................... iDENTiFiCATiON PARTS Accessories ............................Names of parts ........................... CONDiTiONER FEATURES Electronic control operating instructions ................... OPERATING INSTRUCTIONS Operating instructions ........................iNSTALLATiON iNSTRUCTiONS Location ............................Window kit installation ........................ -
Page 3: Introduction
iNTRODUCTiON When using this air conditioner, please keep the following information in mind: DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. IOAlways Do This:]- Never Do This:l e Do not operate your air conditioner in a wet room o Your air conditioner should be used in such a way such as a bathroom or laundry room. -
Page 5: Electrical Information
iDENTiFiCATiON PARTS your safety • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 6: Names Of Parts
|DENT|F|CAT|ON OF PARTS NAMES OF PARTS Front Operation Panel Horizontal Louver Blade (Swing automatically) Caster Carrying Handle (Both sides) Fig.1 Model Operation Panel Horizontal Louver Blade (Manual) Remote signal receptor Caster Carrying Handle _y..(Both) Model Fig.2 Rear Upper Air Filter (Behind the grille) Air Outlet Power Cord Outlet... -
Page 7: Conditioner Features
CONDiTiONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin,thoroughly familiarize yourselfwith the control panel and remotecontroller and all itsfunctions, then followthe symbol forthe functions you desire, The unit canbe controlled bythe unit control panel alone orwith the remotecontroller. NOTE: This manual does not include remote control operation... -
Page 8: Operating Instructions Operating Instructions
OPERAT|NG iNSTRUCTiONS SWING button FAN operation (Applicable to the models withautoswing featureonly) Press the "MODE" button until the When power is ON, press the SWING "FAN" indicator light comes on. button to stop the louver at the desired Press the "FAN SPEED" button to angle. - Page 9 OPERATING INSTRUCT|ONS Other features Power Outage In case of a power outage or interruption, the unit will automatically re-start, in the settings last used, after the power is restored. Wait 3 minutes before resarning_peration After the unit has stopped, operation cannot Adjust manually...
-
Page 10: Installation Instructions
iNSTALLATiON iNSTRUCTIONS (optional) Location ® The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a iNSTALLATiON INSTRUCTIONS smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, fiat surfaces. - Page 11 iNSTALLATiON iNSTRUCTiONS (optional) Installation in a double-hung sash Foam seal A type) window 1. Cut the foam seal (adhesive type) to the proper length and attach it to the window stool. Fig,10 Fig.10 2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of window;...
- Page 12 iNSTALLATiON iNSTRUCTiONS (optional) Installation in a sliding sash window (adhesive type) FoamseaIA 1. Cut the foam seal (adhesive type) to the proper length and attach it to the window frame,Fig.14. Fig.14 2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according Windo_ to the width of window;...
-
Page 13: Exhaust Hose Installation
iNSTALLATiON iNSTRUCTiONS {optional) Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. Fig.18a Fig.18b COOL,HEAT(heat pump type) or AUTO Install mode FAN,DEHUMtDIIFY or HEAT(electrical heat type) Remove mode 1. Install the window exhaust adaptor B onto the exhaust hose as shown in Fig.18a. -
Page 14: Water Drainage
iNSTALLATiON iNSTRUCTiONS drainage: Water During dehumidifying modes, remove the drain Remove plug from the back of the unit; install the drain drain plug connector (5/8" universal female mender) with 3/4"" hose (not included). For the models without drain connector, just attach the drain hose to the hole. -
Page 15: Care And Maintenance
CARE MAINTENANCE CARE AND MAINTENANCE Air filter (slide out) IMPORTANT: 1 ) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or using a hose. It may cause electrical danger. -
Page 16: Troubleshooting Tips Troubleshootim
TROUBLESHOOT|NG T|PS TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES 1, Unit does not - Pl appears in the disptay window Drain the water in the bottom tray. start when pressing on/off Room temperatureis lower than Reset the temperature. button the set temperature.(Cooling mode) The windows or doors in the room Make sure all the windows are not closed. - Page 17 Once confirmed that your appliance is eligible for warranty service, repairs will be performed by a NewAir zu authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will...
