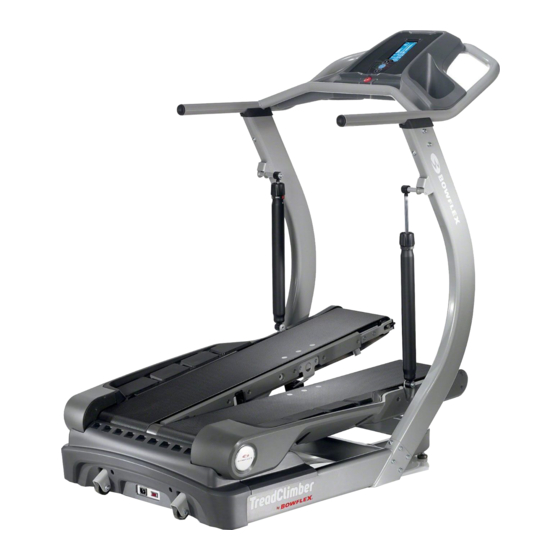

Bowflex TreadClimber TC20 Assembly Manual
Hide thumbs
Also See for TreadClimber TC20:
- Service manual (95 pages) ,
- Assembly & owners manual (60 pages) ,
- Owner's manual (57 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Bowflex TreadClimber TC20
Summary of Contents for Bowflex TreadClimber TC20
- Page 1 Assembly Manual Manual en Español Latino Americano: http://support.nautilus.com...
-
Page 2: Table Of Contents
3369, tcinquiry@nautilus.com | outside U.S. +01-360-859-5180, technics-APLA@nautilus.com | Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered trademark. Nautilus, Inc. (www. NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®, TreadClimber® and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners. -
Page 3: Important Safety Instructions
Important Safety Instructions This icon means a potentially hazardous situation which, if not avoided, could result in death or serious injury. Obey the following warnings: Read and understand all Warnings on this machine. Carefully read and understand the Assembly Manual. •... -
Page 4: Specifi Cations And Tools
Specifications and Tools Included Not Included 5 mm 13 mm (recommended) 55.2” (140.3 cm) 55” (139.7 cm) 31.5” (80 cm) -
Page 5: Before Assembly
Before Assembly Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a hard, level surface. Allow a minimum workout area of 70.5” x 134” (179.1 cm x 340.4 cm). Basic Assembly Tips Follow these basic points when you assemble your machine: •... -
Page 6: Parts
Parts ( 4 BOXES ) BOX 1 Item Description Item Description Console / Handlebar Assembly Hardware Card Junction Cover, Right Heart Rate Strap Junction Cover, Left Safety Key Rear Cover Power Cord Bowfl ex Weight Loss Plan Transport Handle ® Document Kit Cylinder Lubrication Kit... - Page 7 Parts BOX 3 Item Description Item Description Base Assembly Upright, Left Upright, Right BOX 4 Item Description Item Description Side Cover, Right Side Cover, Left Pivot Cover Hardware...
-
Page 8: Hardware
Hardware Item Description Item Description Button Head Hex Screw, M8x20 Phillips Head Screw, Self Tap- ping M4x16 Lock Washer, M8x14 Flat Washer, M8x24 Hex Head Screw, M8x20 Phillips Head Screw, M4x10 Flat Washer, M8x18 Spacer Phillips Head Screw, M4x40 Flat Washer, M4x10... -
Page 9: Assembly
Assembly Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own. 1. Cut open the end of Box 2 and move the Treadle Assembly into your new fi tness area Note: Do not cut the Shipping Zip-Tie until instructed. - Page 10 Assembly 2. Attach the Transport Handle to the Base Assembly Note: Hardware is pre-installed and not on Hardware Card (*). 5 mm...
- Page 11 Assembly 3. Attach the Treadle Assembly to the Base Assembly Note: Do not crimp the Lower Input/ Output (I/O) Cable. Once attached, cut the Shipping Zip-Tie at the front of the Treadles. 13 mm...
- Page 12 Assembly 4. Attach the Side Covers to the Treadle Assembly Note: Do not fully tighten until all hardware has been installed.
- Page 13 Assembly 5. Attach the Pivot Covers and Spacers to the Treadle Assembly...
- Page 14 Assembly 6. Insert the Lower I/O Cable into the Base Assembly and then Route to Front. Note: Be sure to route the cable into the side opening of the Base Assembly. Do not crimp the Lower I/O Cable.
- Page 15 Assembly 7. Attach the Junction Covers and Uprights to the Console/Handlebar Assembly Note: Do not crimp the Console I/O Cable. In order to avoid possible serious injury, when inserting the tube ends into the Console/Handlebar Assembly be careful to avoid fi ngers or hands being caught or pinched. 5 mm...
- Page 16 Assembly 8. Connect the I/O Cable to the Console I/O Cable Note: Do not crimp the I/O Cable.
- Page 17 Assembly 9. Attach the Console/Handlebar/Upright Assembly to the Base Assembly Note: Do not crimp the I/O Cables. This step may require two people. In order to avoid possible serious injury, when inserting the tube ends into the Base Assembly be careful to avoid fi...
- Page 18 Assembly 10. Attach Cylinders to Treadles and then Uprights Note: The settings dial on the cylinders must be up, with the white arrow to the inside of the machine. Attach to Treadles before the Uprights. * Hardware is pre-installed and not on Hardware Card. The Treadles do not have a locking mechanism and can move freely.
- Page 19 Assembly 11. Attach the Motor Cover to the Base Assembly Note: Be sure the safety tabs on the Motor Cover snap onto the Base Assembly.
- Page 20 Assembly 12. Secure the Motor Cover to the Base Assembly...
- Page 21 Assembly 13. Attach the Rear Cover to the Treadle Assembly Note: Be sure the safety tabs on the upper-inside of the Rear Cover snap onto the Base Assembly.
- Page 22 Assembly 14. Connect Power Cord to Treadle Assembly Note: The TC20 TreadClimber fi tness machine is designed to plug directly into a properly wired and ® grounded three prong 120V outlet. If you connect the machine to an outlet with GFI (ground fault interrupt) or AFI (arc fault interrupt), machine operation can cause the circuit to trip.
-
Page 23: Adjustments
Adjustments Moving Your Machine The TreadClimber fi tness machine weighs approximately 218 lbs (98.9 kg) when fully assembled and requires ® caution when being moved. Use the Transport Handle found under the front of the machine to move it. To get access to the Transport Handle, turn the Levelers until you have suffi... - Page 24 Adjustments Leveling Your Machine Levelers are found on the front of the TreadClimber machine. Make sure the TreadClimber machine is level and ® ® stable before you exercise. To adjust: 1. Loosen the upper locking nut. 2. Turn the leveler to adjust the height. 3.
- Page 28 Nautilus Bowflex Schwinn Universal ® ® ® ® 004-4540.081511.B...
