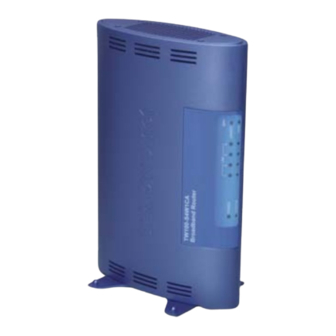

TRENDnet TW100-S4W1CA User Manual

Cable/dsl 4-port broadband router
Hide thumbs Also See for TW100-S4W1CA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version
FCC Warning
This equipment has been tested and found to comply with the regulations
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with this user's guide, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
VCCI Warning
P/N:
Rev.A1-01
2

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TW100-S4W1CA

Summary of Contents for TRENDnet TW100-S4W1CA

  • Page 1 FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS About This Guide ..................1 Purpose....................1 Overview of this User’s Guide .............. 1 Introduction ....................3 Applications: ..................3 Features: ....................4 Unpacking and Setup................. 5 Unpacking ..................... 5 Setup...................... 5 Hardware Installation ................7 Front Panel .................... 7 Rear Panel .....................

  • Page 3: About This Guide

    ABOUT THIS GUIDE Congratulations on your purchase of this 4-port Broadband Router. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible desktop package. A complete solution for sharing the Internet and other office resources, this router is easy for both beginners and novices to operate.

  • Page 4: Introduction

    INTRODUCTION File sharing: Exchange data, messages, and files -- thus making good use of hard disk With the explosive growth of the Internet, accessing information and space. services at any time, day or night, has become standard fare for most Online gaming: people.

  • Page 5: Unpacking And Setup

    UNPACKING AND SETUP This chapter provides unpacking and setup information for the Broadband Router. Unpacking Open the box of the Broadband Router, and carefully unpack it. The box should contain the following items: One Cable/DSL Broadband Router Quick Installation Guide CD-ROM (User’s Guide) One Ethernet Cable Power Adapter...

  • Page 6: Hardware Installation

    HARDWARE INSTALLATION corresponding LAN port is transmitting or receiving data on the 100Mbps Fast Ethernet or 10Mbps Ethernet network. Front Panel Rear Panel The figure below shows the rear panel of the Broadband Router. The figure below shows the front panel of the Broadband Router. 4 Port 10/100Mbps Ethernet Broadband Router Rear Panel On the 4 port broadband router, there is an RJ-45 10/100Mbps Auto- MDIX WAN port that allows you to connect to your xDSL/Cable modem.

  • Page 7: Hardware Connections

    Check the installation Hardware connections The control LEDs of the Internet Broadband Router are clearly visible and the status of the network link can be seen immediately: Once the device is connected to the broadband modem and the Power is connected, the Power, CPU, LAN and WAN port link LEDs of the Internet Broadband Router will light up, indicating a normal status.

  • Page 8: Pc Network Tcp/Ip Setting

    PC NETWORK TCP/IP SETTING Select “Disable DNS” in the “DNS” field. The network TCP/IP settings differ based on the computer’s operating system (Win95/98/ME/NT/2000/XP) and are as follows. Windows 95/98/ME Click on the “Network neighborhood” icon found on the desktop. Right-click on it, and a context menu will appear. Select “Properties”...

  • Page 9: Windows 2000

    Windows 2000 Windows NT4.0 Double-click the “My computer” icon on the desktop. When the “My Click on the “Start” button located on the lower left corner of the menu computer” window opens, open the “Control panel” and then open the bar.
  • Page 10 Select “properties” to enter the TCP/IP setting window. Set “IP address” to “Obtain an IP address automatically.” Set “DNS” to “Obtain DNS server address automatically.”...

  • Page 11: Internet Broadband Router Configuration

    INTERNET BROADBAND ROUTER CONFIGURATION After the main webpage appears, you will see two setup options: Quick Setup or Advanced Setup. It is recommended that you use First, make sure that the network connections are functioning normally. Quick Setup if you are a beginner; it will lead you through the configuration step-by-step.
  • Page 12 1-2 WAN Connection Type 1-2-2 Fixed IP To select the WAN connection-type, select Cable modem (DHCP), Fixed If your Internet Service Provider (ISP) has assigned you a fixed IP address, IP, or Dial-up xDSL (PPPoE) select this option. Enter the assigned IP address, subnet mask, gateway IP, and DNS IP addresses for your Broadband Router.
  • Page 13 1-2-4 PPTP If connecting to the Internet using a (PPTP) xDSL Modem, enter the PPTP Account Name, 1-3 DNS PPTP Password, Host Name, Service IP Address, your IP The Domain Name System (DNS) is the way that Internet domain names Address, and your Subnet Mask are located and translated as provided by your ISP in the...

  • Page 14: Advanced Setup

    2-1-1 System Time Connecting to a Simple Network Time Protocol (SNTP) server allows the Broadband Router to synchronize the system clock to the global Internet through the SNTP Server. The synchronized clock in the Broadband Router is used to record the system log and control client filtering.
  • Page 15 2-1-3 Firmware Upgrade Restore Factory Default Upgrading firmware for this Broadband Router improves functionality To restore the factory default settings of the Broadband Router, and performance. Enter the path and name of the upgrade file then click click the “Restore” button. the APPLY button below.
  • Page 16 2-2-2 Static IP 2-1-7 Reset If the Service Provider has In the event that the Broadband Router stops responding correctly or in assigned a fixed IP address, some way stops functioning, perform the reset function. The settings will enter assigned not be changed.
  • Page 17 fees charged by your ISP (default time=0, always connect). Check the 2-2-5 DNS Connect-on-demand box to enable your router to connect your ISP The Domain Name System (DNS) is the way that Internet domain names whenever an Internet connection is required. are located and translated into Internet Protocol (IP) addresses.
  • Page 18 2-3-2 DHCP Client List Protocol (IP). UDP is an alternative to the TCP and, together with IP, is sometimes referred to as UDP/IP. Like the Transmission The DHCP client list allows you to see which clients are connected to the Control Protocol, UDP uses the Internet Protocol to actually get a Barricade via IP address, host name, and MAC address.
  • Page 19 2-4-2 Virtual Server 2-5 Firewall Configure the Broadband Router as a virtual server to allow the Router to The Broadband Router provides extensive firewall protection by watch outgoing data for specific port numbers. The IP address of the restricting connection parameters to limit the risk of hacker attacks and by computer that sends the matching data is remembered by the Router, so defending against a wide array of common hacker attacks.

  • Page 20: Technical Specifications

    2-5-3 MAC Control TECHNICAL SPECIFICATIONS You can block certain client PCs accessing the Internet based on MAC General addresses. Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 Auto-negotiation Protocol CSMA/CD 2-5-4 DMZ (Demilitarized Zone) Data Transfer Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) If a local client PC cannot run an Internet application properly from Rate...
  • Page 21 NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDWARE’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES TW100-S4W1CA High Speed Internet Broadband Router 5 years ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,...

  • Page 22: Technical Support

    TRENDware website. TRENDware provides FREE technical support for all customers for the duration of the warranty period on this product. TRENDware Technical Support Tel: +1-310-891-1100 Fax: +1-310-891-1111 E-mail: support@trendware.com www.TRENDNET.com Monday ~ Friday, 7:30AM ~ 6:00PM Pacific Standard Time (except holidays)
