Junction Unit - Simrad AP50 Installation Manual

Note !
20222469 / B

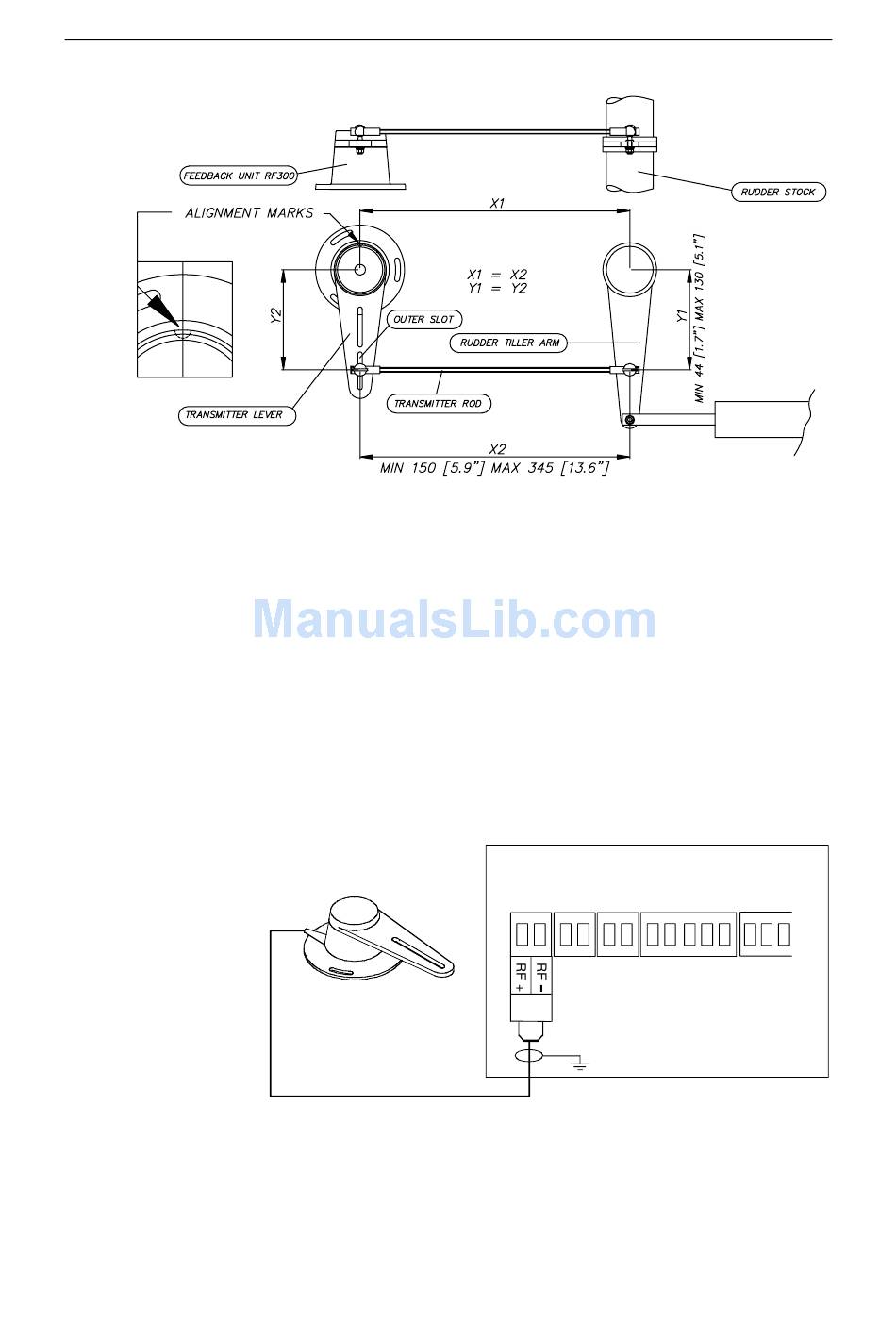

Figure 2-2 RF300 Rudder Feedback Unit Mounting
Due to space limitations, it may be necessary to cut the length of
the transmitter rod to move the RF300 closer to the rudderpost.
Tighten the mounting screws for both the RF300 Rudder
Feedback Unit and the transmitter rod ball joint.
Observe the RF300 unit while someone else turns the helm
wheel through the complete travel from full port to full
starboard rudder to verify that the mechanical linkage to the
RF300 is not obstructed.
Connect the RF300 to the J50 Junction Unit as shown in Figure
2-3.
Figure 2-3 RF300 Rudder Feedback Unit Connection

JUNCTION UNIT

MAIN PCB
Rudder
Feedb.
*
* NON POLARIZED
(COLOR INDEPENDENT)
Installation
(019356)
7
