Mechanical Alignment

The purpose of this procedure
is to find the zero point and to
allow the feedback unit to
operate within its active
segment. If the unit operates
outside this segment, there will
be a feedback failure alarm.
1. Position the rudder
amidships.
2. Loosen the two screws that
secure the transmission
lever to the RF45X shaft.
3. Turn on the autopilot by pressing the
wait until the start-up sequence is finished.
4. Press the (STBY) button again, if necessary, to read the
STB Y
rudder angle display. You may also read the rudder angle by
accessing the User Set-up menu (see Operator Manual) and
the SYSTEM DATA menu (page 75).
5. Use a flat screwdriver in the slot and adjust the rudder angle
to zero degrees on the display.
6. Secure the transmission lever to the shaft. Return to the
Dockside settings and proceed to 'Rudder Feedback
Calibration'.
If the autopilot presents a Rudder Feedback Alarm after "turn
on", proceed as follows:
• Turn the autopilot off. Use a flat screwdriver in the slot and
turn the shaft 180°.
• Proceed from item 3 above.
Installation

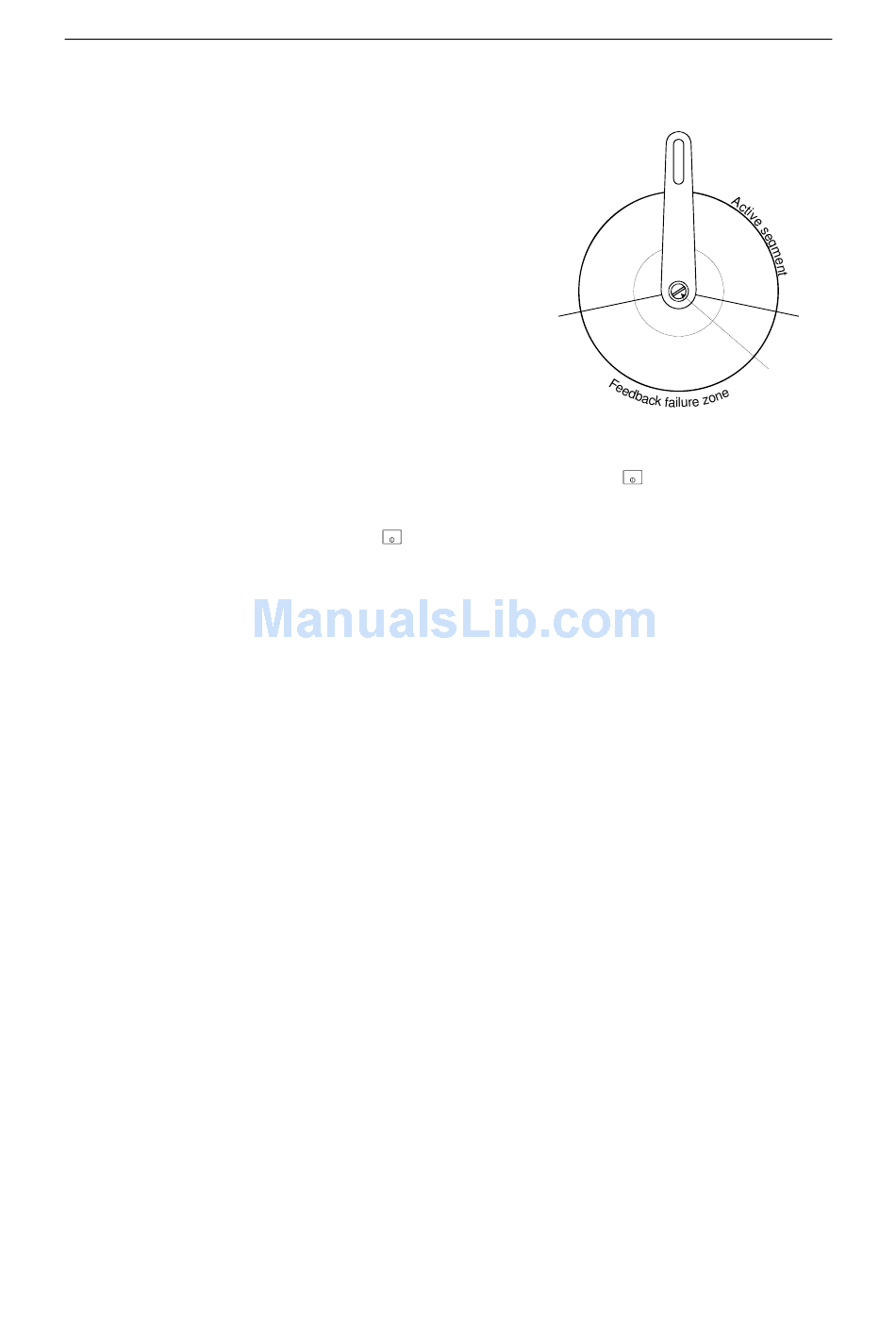

Slot
(STBY) button and
