AIR PURIFIER SAFETY
PLEASE READ AND SAVE
THESE IMPORTANT

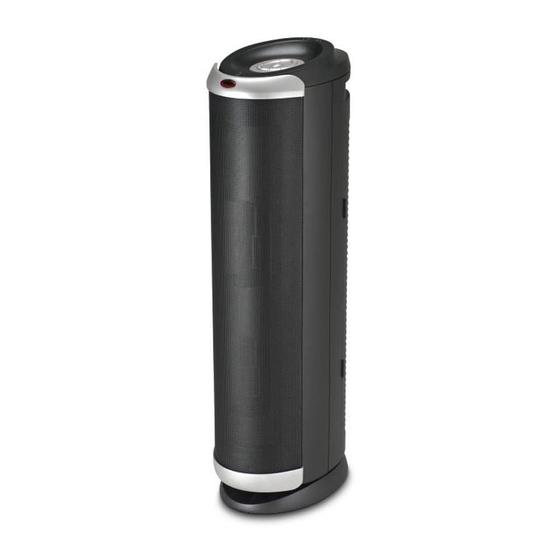

Tower Air Purifier
with permanent filters SAFETY INSTRUCTIONS
SAFETY PRECAUTION
BAP1550/BAP1550W
MODEL
Carefully read and retain all instructions before using the air
purifier. When using electrical appliances, basic safety
precautions should always be taken including the following:
1. To avoid fire or shock hazard, check that the voltage on
the product corresponds to your electricity supply and
plug directly into an electrical outlet.
2. Keep cord out of heavy traffic areas and to avoid fire
hazard, never put the cord under rugs, or near any
heat source.
3. Carefully discard any plastic wrapping that was used
for the packaging. If the filter is covered by a bag when
shipped, remove plastic bag before use.
4. Do not use the air purifier outside.
5. Do not place the unit near any heat source or in direct
sunlight.
6. Always unplug the air purifier before moving it, opening
the grill, changing the filters, cleaning the air purifier or
whenever it is not in use.
7. Do not use in or around water or any other liquids. Do
not attempt to wash the unit under running water.
8. Use appliance only for intended household use as
described in this manual.
9. Ensure that all air openings are not restricted or
covered in any way.
10.Do not place anything on top of the unit.
11.Never insert any object into any openings.
12.Do not use the air purifier if any part is missing or
damaged in any way.
13.Do not attempt to repair or adjust any mechanical
functions of this unit. If the unit becomes damaged
return to the place of purchase or phone the helpline
number on the back of this leaflet.
14.If the supply cord or plug is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid hazard.
Read instructions before operating.
15.The air purifier contains no user serviceable parts and
Retain for future reference.
should the product suffer damage or breakdown it must
Instruction Manual be returned to the manufacturer or its service agent.
16.Unplug from outlet when not in use, when moving from
one location to another, before putting on or taking off
parts and before cleaning.
PERMANENT HEPA FILTERS
If the filters are dirty, remove them by gripping on both
(USAGE: 2 PCS)
sides and pulling forward.
5. To clean the permanent HEPA filters use a crevice tool
or brush attachment with your vacuum cleaner. Run
Problem
the attachment along the inlet and outlet side of the
filter trying to clean between the pleated filter layers.
• Unit will not operate.
(see Fig. 4).
NOTE: Vacuuming will restore performance of the
permanent HEPA filter however, the filter may appear
stained. This is normal and does not affect
• Decreased air flow.
performance in any way.
DO NOT USE WATER OR ANY OTHER
HOUSEHOLD CLEANERS OR DETERGENTS TO
CLEAN THE PERMANENT HEPA FILTERS.
• Noise.
6. This model utilises a hang tab and filter clips to insure
that the filter is properly in place. Before replacing the
SERVICE INSTRUCTIONS
permanent HEPA filter make sure that the hang tab is
securely in place. 1. Do NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void the
7. Align the clips on the side of your permanent HEPA filter
warranty. The inside of the unit contains no user
with the rails on the inside of the unit. Gently slide the
serviceable parts. All servicing should be performed by
filter onto the rails.
qualified personnel only.
8. The filter clip should easily slide onto the filter hang
2. If you need to exchange the unit, please return it in its
tabs. Do not use force while attaching the filter clip to
original carton, with a sales receipt, to the store where
the filter. Align the clip on the side of your permanent
you purchased it. If you are returning the unit more than
HEPA filter with the rails on the inside of the unit. (see
30 days after the date of purchase, please see the
Fig. 2 and 3).
enclosed warranty.
NOTE: The pleated material and rubber gasket should
3. If you have any other questions or comments, visit our
be facing towards the unit when applied.
website www.bionaire.com.
9. Replace the inlet grill by sliding back on to the unit.
Make sure that it snaps securely into position (the grill
only goes on one way).
NOTE: Do not point outlet towards wall.
10.The filter life indicator ( ) must be reset once the
permanent filters have been cleaned. Reset indicator by
pressing the power button ( ) on the control panel for
2 seconds.
Filter Life – The filter has been designed to never need
replacement, however, it does need servicing. We
recommend that under normal conditions of continuous
use, the filters should be cleaned at least every 3 months
to help maintain optimal performance.
17.Avoid contact with moving parts. Do not operate in the
presence of explosive and/or flammable fumes.
18.The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
19.Do not let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
20.To disconnect, grip plug and pull from wall outlet. Never
yank on cord.
21.Always use on a dry, level surface.
WARNING: To reduce the risk of electrical shock and
injury to persons, do not use in window.
WARNING: To reduce the risk of fire or electric shock,
DO NOT use this air purifier with any solid -state speed
control devices.
PLEASE SAVE THESE
INSTRUCTIONS
HOW THE AIR PURIFIER WORKS
Dirty, dust laden air is drawn through the back of the air
purifier and through the multi-stage filtration system.
The permanent HEPA filter entraps 99% of all smaller
visible and non-visible particles down to 2 microns in size.
IONISER
Your Bionaire ® Air Purifier has an independently controlled
ioniser, which when turned on, releases negative ions into
the outgoing filtered air. Ions are tiny particles that carry
either a positive or negative charge. These ions exist
naturally all around us in the air, water and ground. Both
positive and negative ions are colourless, odourless and
completely harmless.
Negative ions help the air purification process by attaching
themselves to very small airborne particles in the room.
These particles take on a negative charge and may join
with positively charged particles, such as dust, pollen,
smoke and pet dander to form larger particles that are then
more readily captured by the filter system, or they may be
attracted to positively charged surfaces like walls or floors.
You may also note, after extended use, that dust may have
collected around the grills or front panel.
This is from the ionisation effect caused by the negative
ions exiting from the air outlet.This dust does not come
from the air output, but is drawn out of the uncleaned air
going past the air outlet.
This is additional evidence of the air cleaning effectiveness
of negative ions. The dust can be easily removed with a
clean, dampened cloth or soft brush.
WARRANTY
Sunbeam Products, Inc. doing business as Jarden
Consumer Solutions, its affiliates and subsidiaries
Troubleshooting
(hereinafter collectively referred to as "SPI") warrant that,
Solution
for a period of two (2) years from the date of purchase,
✔ Check to make sure the unit is plugged in. this product will be free from defects in material and
✔ Check to make sure the unit is on by pressing
workmanship (the "Warranty"). Please preserve the
the power button.
✔ Make sure the filters are properly installed and Warranty and Cash Memo duly stamped and signed by
firmly close the door.
the dealer as this will be required for any claims under
✔ If the Filter Life Indicator (
) is red, the this Warranty.
permanent HEPA filter should be cleaned.
✔ Check the filter to make sure they are in good · The rights and benefits under this Warranty are addi-
condition. tional to your statutory rights which are not affected by
✔ Check to ensure nothing is blocking the air inlet
this Warranty.
and filtered air outlet.
· During the period of the Warranty, SPI at its choice will
✔ Make sure filter bags are removed if present.
repair or replace this product or any component of the
product found to be defective free of cost through (the
Dealer from whom the product was purchased or
through the service center listed in card-business peo-
ple to confirm), provided that:
– SPI is promptly informed of the defect.
– The product has not been altered in any way or
subjected to misuse or repair by the person
other than a person authorized by SPI.
· No rights are given under the Warranty to a person
acquiring the product second hand.
· Any repaired or replaced product will be warranted on
these terms for the remaining portion of the Warranty
in the country where the product was purchased.
· Liability for consequential loss or damage is neither
accepted nor is it implied.
· The following are not covered under SPI's
Warranty:
a. If product was used in any manner other than
the intended one.
b. If product has not been used according to the
instruction manual/User's Manual, included
with the product.
c. If defects are caused by improper or reckless
use.
d. If product was altered or repaired by anyone
other than those authorized by the national
manufacturer, importer or respective
merchant.
e. Use of incorrect current or voltage or faulty
electric power supply.
f. Normal wear or tear of parts and accessories
resulting from regular use.
NOTE: It is important to clean the permanent HEPA filters PRE-OPERATING INSTRUCTIONS
at recommended intervals. Using the ioniser in conjunction 1. After removing the unit from the box, remove the plastic
with dirty filters may result in dirty particles exiting the air covering from the unit.
purifier and being attracted to walls, carpets, furniture and
2. Select a firm level place where there are no obstructions
other household objects. These dirty particles may prove
to the air inlet (rear grill) or filtered air outlet.
very difficult to remove.
3. Remove the inlet grill by pulling the grill towards you.
4. Remove both permanent HEPA filters by gripping on
Fig. 1
both sides and pulling forward.
5. The filter clip can only be attached to the hang tabs on
J C
A B D E D the filter one way. (see Fig. 2). The filter clip should
easily slide onto the filter hang tabs. Do not use force
E
whilst attaching the filter clip to the filter. Align the clip
on the permanent HEPA filter with the rails on the inside
of the unit. (see Fig. 3).
B
K
F
B
L
J
G
NOTE: The pleated material and rubber gasket should
C
be facing towards the unit when applied.
H 6. Replace the inlet grill by sliding back on to the unit.
I
Make sure that it snaps securely into position (the grill
only goes on one way).
A. Power Light G. Inlet Grill
NOTE: Do not point outlet towards wall.
B. Speed Control H. Permanent HEPA
filters (2 pcs)
OPERATING INSTRUCTIONS
C. Ioniser Control
I. Filtered Air Outlet
Your remote control requires (2) AAA batteries (included) for
D. Filter Indicator Light
operation. To install the batteries, simply depress and slide
J. Power Button
E. Ioniser Light
the back of the remote control with your thumb on the
K. Infrared
F. Washable Foam
arrow indentation. Remove batteries before discarding the
Pre-filter L. Operation Indicator
remote control.
Light
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.
1. Plug into a suitable electrical outlet.
2. Press the power button (
the remote control. The unit will turn on high only the
first time the unit is turned on. All other times it is
turned on, the unit remembers the last speed selected
and will turn on at that speed, and the power light will
illuminate letting you know the power is on.
g. Damages resulting from transportation,
accidents, mishandling or negligence on the
part of the customer.
h. The following parts/components:
· Glass containers
· Light bulbs
· Accessories
i. Industrial or commercial use of product.
j. The serial number is tampered with.
THIS PRODUCT IS MANUFACTURED TO COMPLY WITH
THE E.E.C. DIRECTIVES 2006/95/EC AND
2004/108/EC.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check on the
following website for further recycling and
WEEE information: www.bionaire.com.
Jarden Consumer Solutions
of India Private Limited
Unit Number B-204, Universal
Business Park Off Saki Vihar Road,
Chandivli Farm Road Andheri (E),
Mumbai 400-072, India
Telephone: 1-800-102-6300
© 2008 Sunbeam Products, Inc. doing business as Jarden
Consumer Solutions. All rights reserved. Manufactured by
Sunbeam Products, Inc. doing business as Jarden
Consumer Solutions, 2381 Executive Center Drive, Boca
Raton, Florida 33431 U.S.A. Distributed by Jarden
Consumer Solutions of India Private Limited, Unit Number
B-204, Universal Business Park Off Saki Vihar Road,
Chandivli Farm Road Andheri (E), Mumbai 400-072, India.
123408
BAP1550IN08EHM2/9100040003451 Printed in China
3. You can then select the desired speed setting. This air
cleaner has three speed settings. You can select from
HIGH ( ), MEDIUM ( ), or LOW (
desired operating speed button on
the control panel or the remote control.
4. To release negative ions into the filtered air, press the
ioniser button ( ) to either on the control panel or the
remote control and the light will illuminate.
5. The ioniser will not work unless the unit is running.
6. For optimum air filtration, it is recommended to operate
the air purifier continuously. Its rugged motor is
designed to give many years of service.
7. For continuous use it is recommended to operate the
air purifier at the Medium (
operation or use in a bedroom, select the Low (
setting. When high levels of air pollution are present,
Fig. 2 Fig. 3
select the HI ( ) setting to quickly circulate clean
filtered air.
CLEANING AND MAINTENANCE
1. Turn the air purifier off and unplug it before cleaning.
2. The outside of the air purifier can be cleaned with a
soft, clean dampened cloth.
3. The rear air inlet grill can be removed and washed in
warm soapy water (not dishwasher safe). Dry before
replacing in the unit.
4. The filtered air outlet can be cleaned of dust with a
small, soft brush.
5. If you wish to clean the inside of the air purifier, please
only use a dry, soft cloth to wipe it down.
PERMANENT HEPA FILTER CLEANING
Filter Indicator Light ( ) - Your air purifier has an
indicator light that illuminates when it is time to clean the
permanent HEPA filters.
1. Every few weeks check the condition of the pre-filter.
2. Turn off and unplug from outlet.
3. Remove the inlet grill. If the foam pre-filter has
collected a noticeable
amount of dust, remove
it from the inlet of the grill
and wash it in warm
soapy water. Rinse and
dry the pre-filter
thoroughly before
replacing it in the inlet of
) on the control panel or
the grill.
4. With the inlet grill
removed, check the
condition of your
permanent HEPA filters.
) by pushing the
) setting. For quieter
)
Fig. 4
