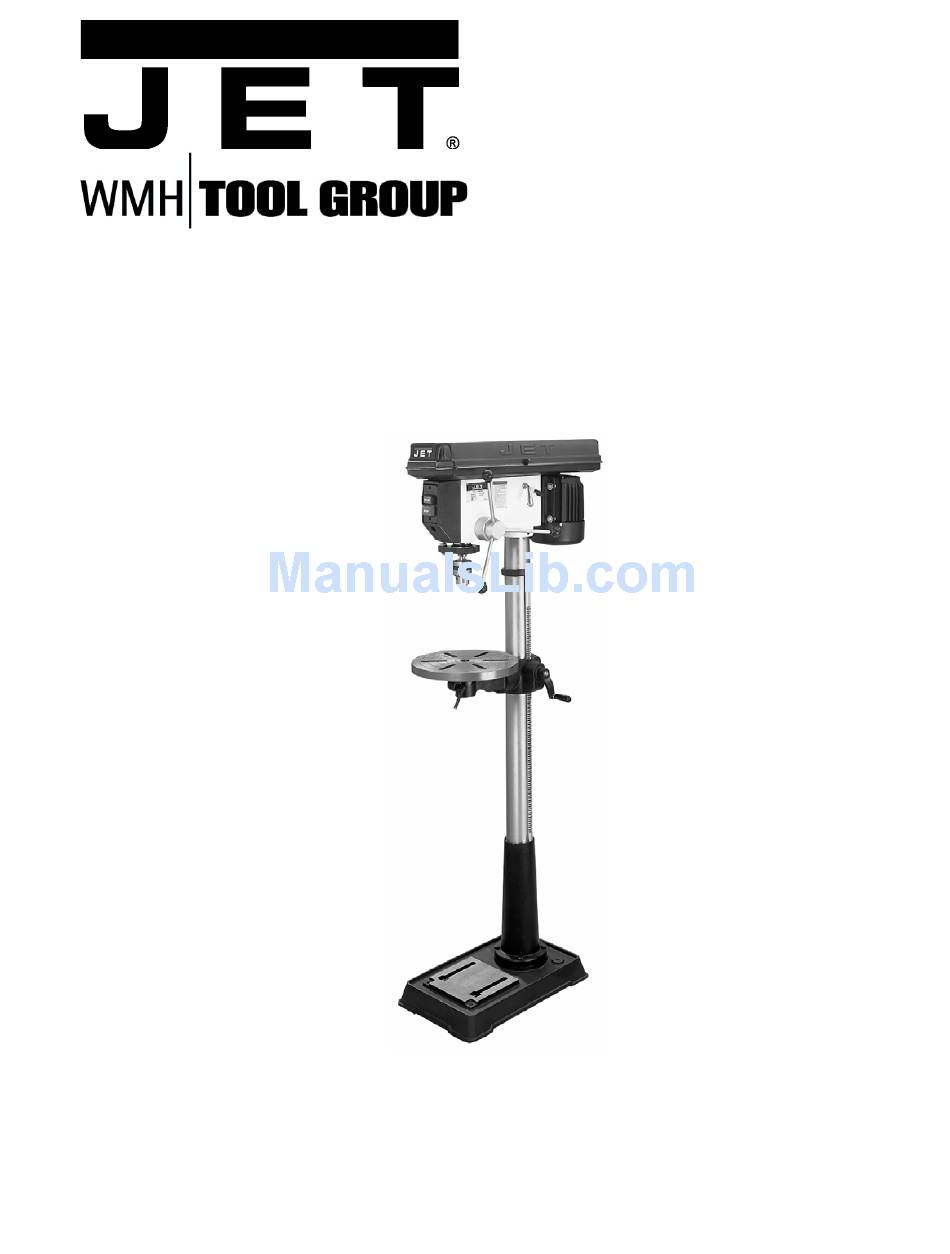

- Page 1 This Manual is Bookmarked Operating Instructions and Parts Manual 17” Drill Press Model JDP-17MF WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-354169 Ph.: 800-274-6848 Revision C1 01/06 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty
This manual has been prepared for the owner and operators of a JDP-17MF Drill Press. Its purpose, aside from machine operation, is to promote safety through the use of accepted correct operating and maintenance procedures. Completely read the safety and maintenance instructions before operating or servicing the machine. -
Page 3: Warnings
This drill press is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a drill press, do not use until proper training and knowledge has been obtained. - Page 4 DO NOT operate tool while under the influence of drugs, alcohol or any medication. • DO NOT drill pieces of material that are too small to be safely supported. • WHEN drilling a large workpiece, provide additional support at table height.
-
Page 5: Grounding Instructions
115 Volt Operation As received from the factory, your drill press is ready to run at 115 volt operation. This drill press, when wired for 115 volt, is intended for use on a circuit that has an outlet and a plug that looks like the one illustrated in (A). -
Page 6: 230V Operation
230 volt plug is installed. 4. The drill press with a 230 volt plug should only be connected to an outlet having the same configuration (D). No adapter is available or should be used with the 230 volt plug. -
Page 7: On-Off Switch Padlock
On-Off Switch Padlock Model No. BP-1, Stock No. 709736 To safeguard your machine from unauthorized operation and to avoid accidental starting by young children, the use of a padlock is highly recommended. JET model BP-1 is available from your local authorized JET distributor or by calling WMH Tool Group at 800-274-6848. -
Page 8: Table Of Contents
Stock Number ... 354169 Swing...16-1/2” Type ...Floor Drilling Capacity ... 5/8” Chuck Size ... 5/8” Spindle Travel ...4-3/8” Spindle Distance to Base... 49” Spindle Distance to Table (max.)...29-1/8” Table Size Diameter...13-3/4” Table Tilt... + or - 45° Spindle Taper...MT-2 Column Diameter ...3-1/8” Number of Spindle Speeds ... -
Page 9: Contents Of Shipping Container
Contents of the Shipping Container 1. Head Assembly 1. Table 1. Column and Bracket Assembly 1. Base 1. Owner’s Manual 1. Warranty Registration Card 1. Chuck and Chuck Key 3. Downfeed Handle 1. Table Bracket Lock Handle 1. Table Bracket Raising Handle 4. -
Page 10: Assembly
Assembly 1. Place the base (A, Fig. 1) on a level floor. 2. With a 17mm wrench attach the column assembly (B, Fig. 1) to the base (A, Fig. 1) with four M10 x 40 hex cap bolts (C, Fig. 1). Tighten firmly. -
Page 11: Removing The Chuck And Arbor
9. With the aid of a second person, carefully lift the head onto the column top. The head assembly is heavy! Use care when lifting onto the column! 10. Rotate head assembly until sides of the belt cover are parallel with the sides of the base. 11. -
Page 12: Adjusting The Depth Stop
1. Use a pencil to mark the depth the bit will drill into the workpiece (A, Fig. 7). 2. With the drill bit in the chuck, lower down feed handle to advance bit to your mark,see Figure 7. -
Page 14: Return Spring Adjustment
Return Spring Adjustment The return spring is adjusted at the factory and should need further adjustment. adjustment is deemed necessary: 1. Unplug the machine from the power source. 2. Loosen two jam nuts (A, Fig. 9). Do not remove. 3. Firmly hold the coil spring cover (B, Fig. 9). 4. -
Page 15: Basic Operation
Feeding too slowly may cause burning of the workpiece. Feeding too quickly may cause the motor to stop and/or the drill bit to break. • Generally speaking, the smaller the drill bit, the greater the RPM required. -
Page 16: Troubleshooting
4. Tighten set screws in pulleys. 1. Change to appropriate speed, see speed and pulley chart, page 13. 2. Retract drill bit frequently to remove chips. 3. Resharpen, or replace drill bit. 4. Increase feed rate. 1. Resharpen bit correctly. -
Page 17: Part's Breakdown
Parts Breakdown for JDP-17MF... -
Page 18: Part's List
Parts List for JET JDP-17MF Drill Press Index Part Description Size Qty. 1 ...10600111 ...Base ..1 2A ...12909001A1...Column and Holder Assy..1 3 ...TS-1525021 ...Set Screw... M10x12 ... 1 5 ...TS-1491061 ...Hex Cap Bolt... M10x40 ... 4 6 ...10700605A1...Bracket ... - Page 19 61 ...BB-6203Z ...Ball Bearing..1 62 ...10606201 ...Washer..1 63 ...10606301 ...Lock Nut ..1 64 ...10606401 ...Spindle Nut ..1 65 ...10706508A1...Driving Sleeve..1 66 ...BB-6205Z ...Ball Bearing..2 67 ...10706705 ...Collar..1 68 ...10706802 ...Retaining Ring ...
- Page 20 Index Part Description Size Qty. 169 ...11316904 ...Nameplate..1 601 ...TS-1533032 ...Pan Head Machine Screw ... M5x10 ... 2 602 ...2504MZC005 ...Tooth Washer ..2 607 ...TS-0720101 ...Lock Washer ... 7/16”... 2 610 ...TS-1503081 ...Socket Head Cap Screw... M6x35 ... 2 611 ...10661102 ...Seat...
- Page 24 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 800-274-6848 www.wmhtoolgroup.com...
