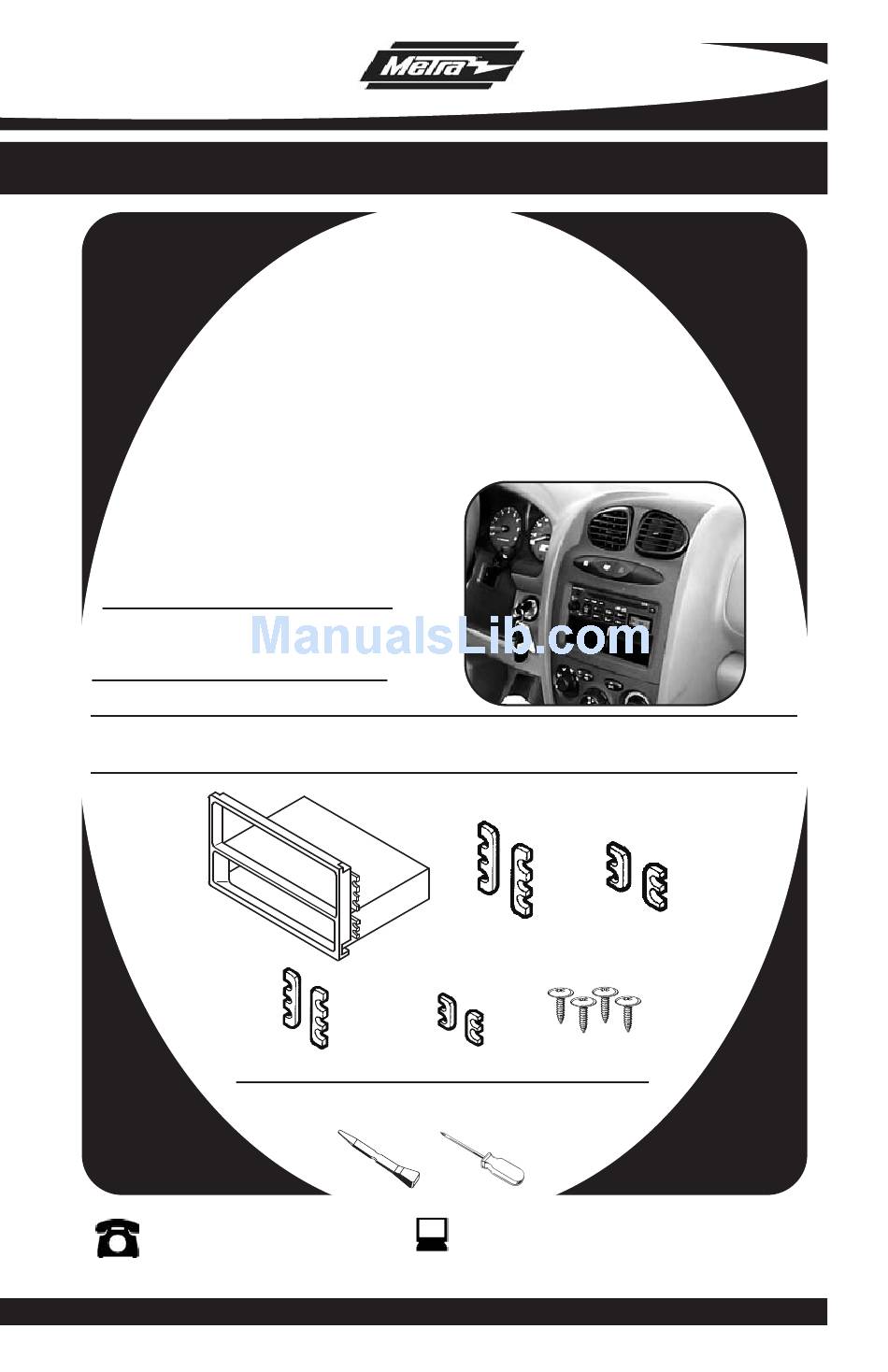

INSTALLATION INSTRUCTIONS FOR PART 99-7309
99-7309
KIT FEATURES
• DIN Radio With Pocket Provision
• ISO Mount Radio with Pocket Provision
KIT COMPONENTS
• A) Radio Housing • B) Spacer 1L/ Spacer 1R • C) Spacer 2L/ Spacer 2R
•D) Spacer 3L/ Spacer 3R • E) Spacer 4L/ Spacer 4R • F) (4) #10 x 3/4" Phillips Truss-head Screws
A
D
1-800-221-0932
© COPYRIGHT 2001-2008 METRA ELECTRONICS CORPORATION
APPLICATION
Hyundai
Elantra (Double DIN) 1996-2000
Santa Fe 2001-2006
Sonata (Double DIN) 1995-1998
Sonata 1999-2001
Tiburon (Double DIN) 1997-2002
E
TOOLS REQUIRED:
Panel Removal Tool • Phillips Screwdriver
C
B
F
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 99-7309
Summary of Contents for Metra Electronics 99-7309
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7309 APPLICATION Hyundai Elantra (Double DIN) 1996-2000 Santa Fe 2001-2006 Sonata (Double DIN) 1995-1998 Sonata 1999-2001 Tiburon (Double DIN) 1997-2002 99-7309 KIT FEATURES • DIN Radio With Pocket Provision • ISO Mount Radio with Pocket Provision KIT COMPONENTS •...
-
Page 2: Table Of Contents
99-7309 T ABLE OF CONTENTS Dash Disassembly - Elantra 1996-2000 ..... 1 (Double DIN) - Santa Fe 2001-2006 ......1 - Sonata 1995-1998 . -
Page 3: Elantra (Double Din) 1996-2000
99-7309 DASH DISASSEMBL Y Hyundai Elantra (Double DIN) 1996-2000 Disconnect the negative battery terminal to pre- vent an accidental short circuit. Pop out the dim- mer switch panel and remove (1) Phillips screw exposed. Unsnap the gear shifter trim plate and remove (1) Phillips screw exposed at the base of the dash trim bezel. -
Page 4: Sonata (Double Din) 1995-1998
99-7309 DASH DISASSEMBL Y Hyundai Sonata (Double DIN)1995-1998 Disconnect the negative battery terminal to pre- vent an accidental short circuit. Unclip the gear "A" shifter trim panel and remove (1) screw exposed. Unclip the dash trim bezel and remove. Remove (4) Phillips screws securing the factory head unit and disconnect the wiring. -
Page 5: Tiburon (Double Din) 1997-2002
99-7309 DASH DISASSEMBL Y Hyundai Tiburon (Double DIN)1997-2002 Disconnect the negative battery terminal to pre- vent an accidental short circuit. Remove (4) Phillips screws securing the center console. Pry out on the front edge of the console and unclip the radio trim bezel. Remove (2) Phillips screws securing the factory pocket and remove.Remove... -
Page 6: Final Assembly
99-7309 FINAL ASSEMBL Y FINAL ASSEMBL Y (A) Strip wire ends back 1/2" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individ- ually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 7 99-7309 NOTES...
- Page 8 99-7309 INSTRUCTIONS www.metraonline.com 1-800-221-0932 REV. 08/28/08 © COPYRIGHT 2001-2008 METRA ELECTRONICS CORPORATION INST99-7309...
