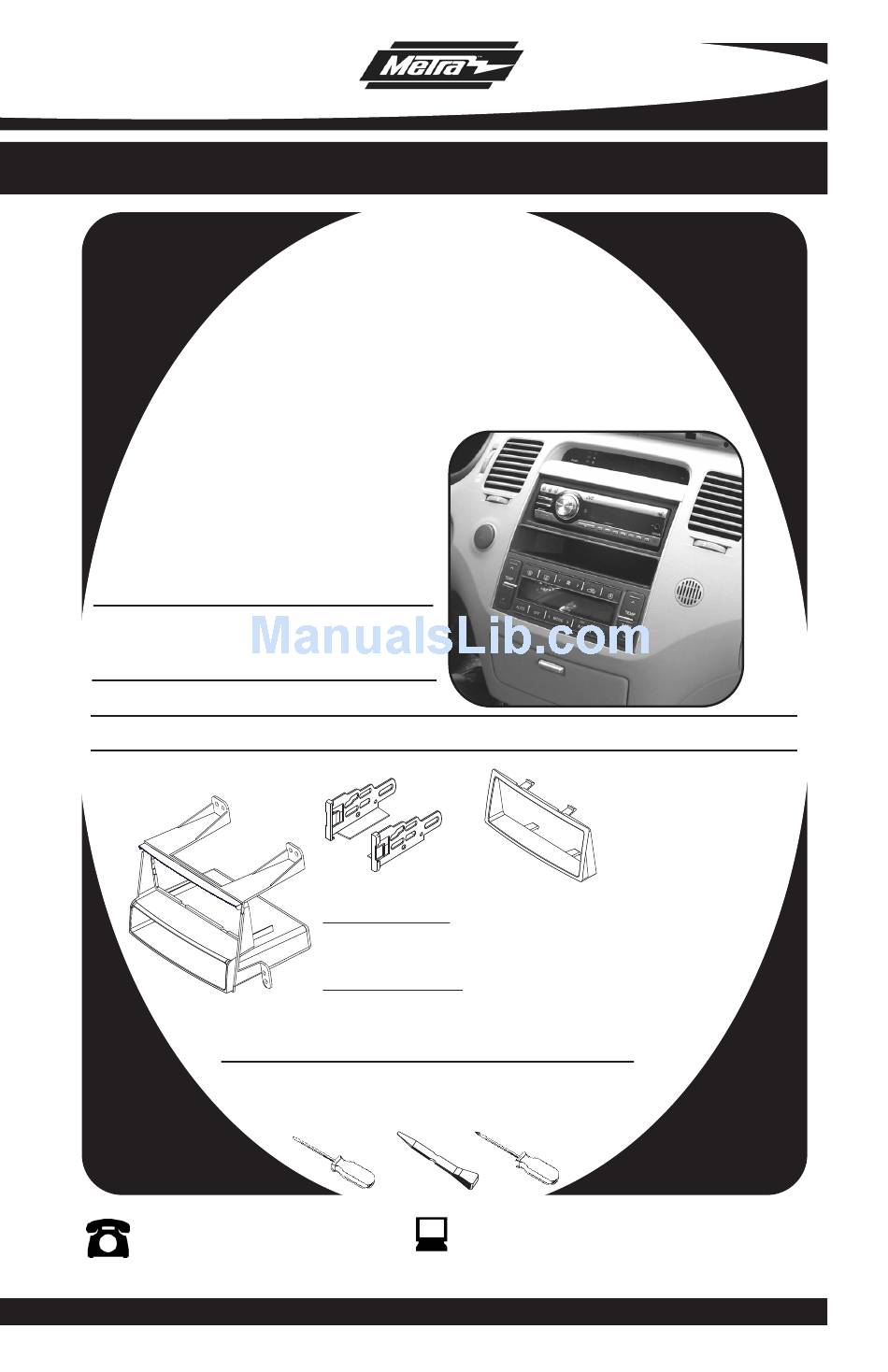

INSTALLATION INSTRUCTIONS FOR PART 99-7322
99-7322
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Trim Plate
A
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
Hyundai Azera
2006-2010
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1004 - Hyundai/KIA harness 2004-up
• 70-7303 - Hyundai/KIA harness 2009
Antenna Adapter:
• 40-KI10 KIA antenna adapter 2007-up
TOOLS REQUIRED:
• Phillips Screwdriver
C
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 99-7322
Summary of Contents for Metra Electronics 99-7322
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7322 Hyundai Azera 99-7322 KIT FEATURES • DIN Radio Provision with Pocket • ISO Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) Trim Plate WIRING AND ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: •...
- Page 2 Final Assembly ......... . . 5 *Note: Refer also to the instructions included with the aftermarket radio. 99-7322...
-
Page 3: Hyundai Azera 2006-2010
Remove (1) Phillips screw from the lower left side of the radio panel behind panel removed in step 2. (Figure B) Unclip and remove the trim panel above the radio that extends across the dash to the passenger side. (Figure C) 99-7322 DASH DISASSEMBLY... - Page 4 Remove (2) Phillips screws from under radio trim panel. (Figure E) Unclip and remove the entire trim panel surrounding the radio. (Figure F) Remove (4) Phillips screws securing the radio. Unplug and remove radio. (Figure G) Continue to kit assembly. 99-7322 DASH DISASSEMBLY...
-
Page 5: Kit Assembly
Note: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) Slide the aftermarket radio into the cage and secure. (Figure B) Continue to final assembly. 99-7322 KIT ASSEMBLY... -
Page 6: Iso Radio Provision
(Figure A) Slide the radio into the radio opening until the side clips snap into place. (Figure B) Snap the trim plate into the Radio Housing. (Figure B) Continue to final assembly. 99-7322 KIT ASSEMBLY... -
Page 7: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7322 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 8 99-7322 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/27/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7322...
