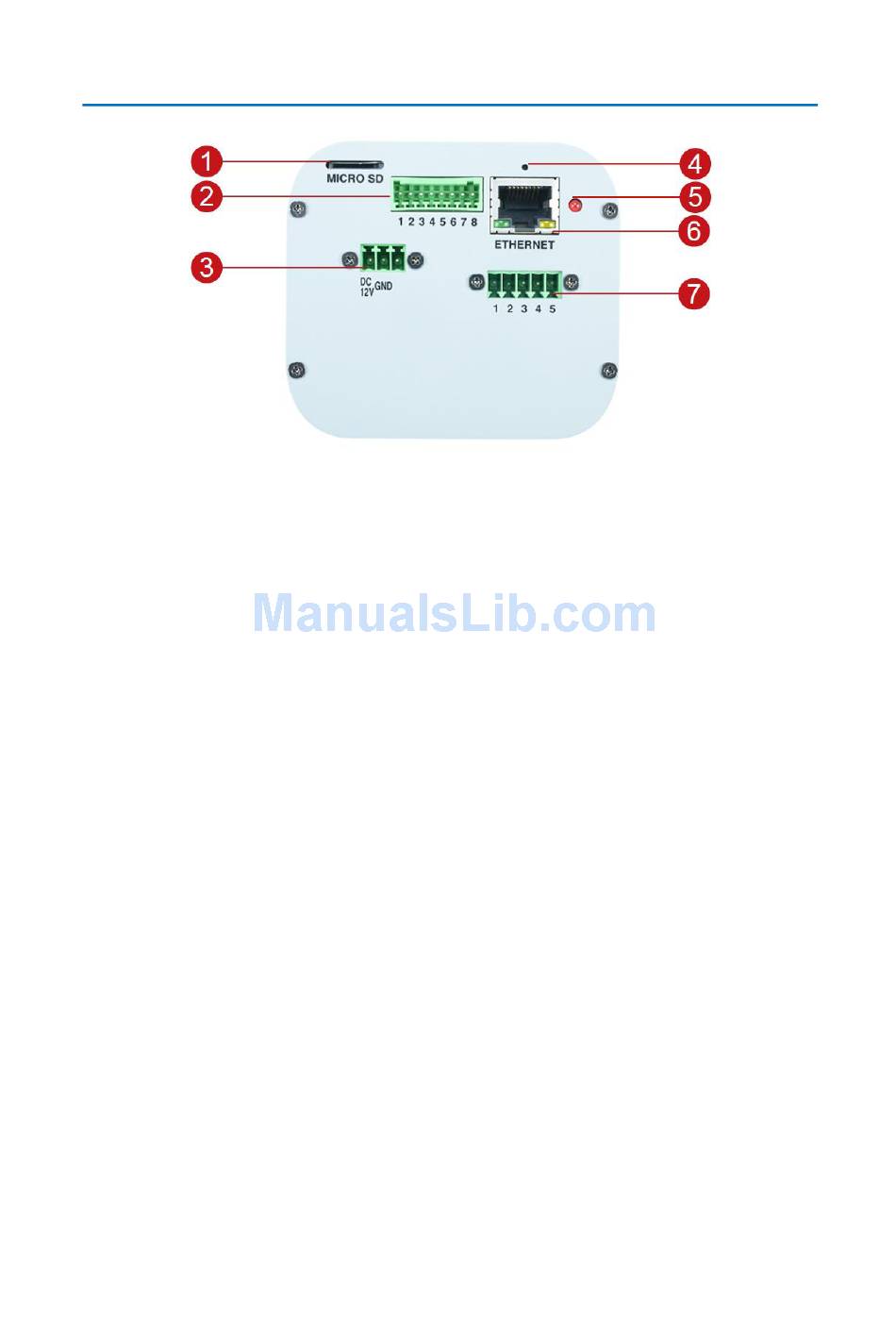

Physical Description
1) Memory Card Slot
Insert a memory card into this slot for local recording purposes. See
Remove the Memory Card
NOTE:
Supports microSDHC and microSDXC cards.
2) Digital Input / Output (DI/DO) and Audio Input / Output
This connector connects to digital input or output devices, such as an alarm trigger, panic
button, etc., as well as audio input and output devices, such as microphones and speakers.
Digital Input (DI) and Digital Output (DO) devices are used in applications like motion
detection, event triggering, alarm notifications, etc. See
Devices (Optional)
3) DC 12V Power Input
In case the camera is connected to a non-PoE (Power over Ethernet) switch, use this
connector to connect an external adaptor (not included) to the camera. See
Power Adapter (Optional)
4) Reset Button
The purpose of reset button is to restore the factory default settings of the camera, including
administrator's password.
The reset button can be used for following purposes:
1. The administrator's password has been forgotten and therefore the camera cannot be
accessed.
2. In case of IP address, mask, or allow/deny filter related issues, resulting with inability to
modify these settings.
Hardware Manual
on page 23 for more information.
on page 12 for more information.
on page 10 for more information.
Connecting the DI/DO and Audio
