Shure Axient AXT610 ShowLink User Manual

Wireless access point
Hide thumbs Also See for Axient AXT610 ShowLink:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
TM

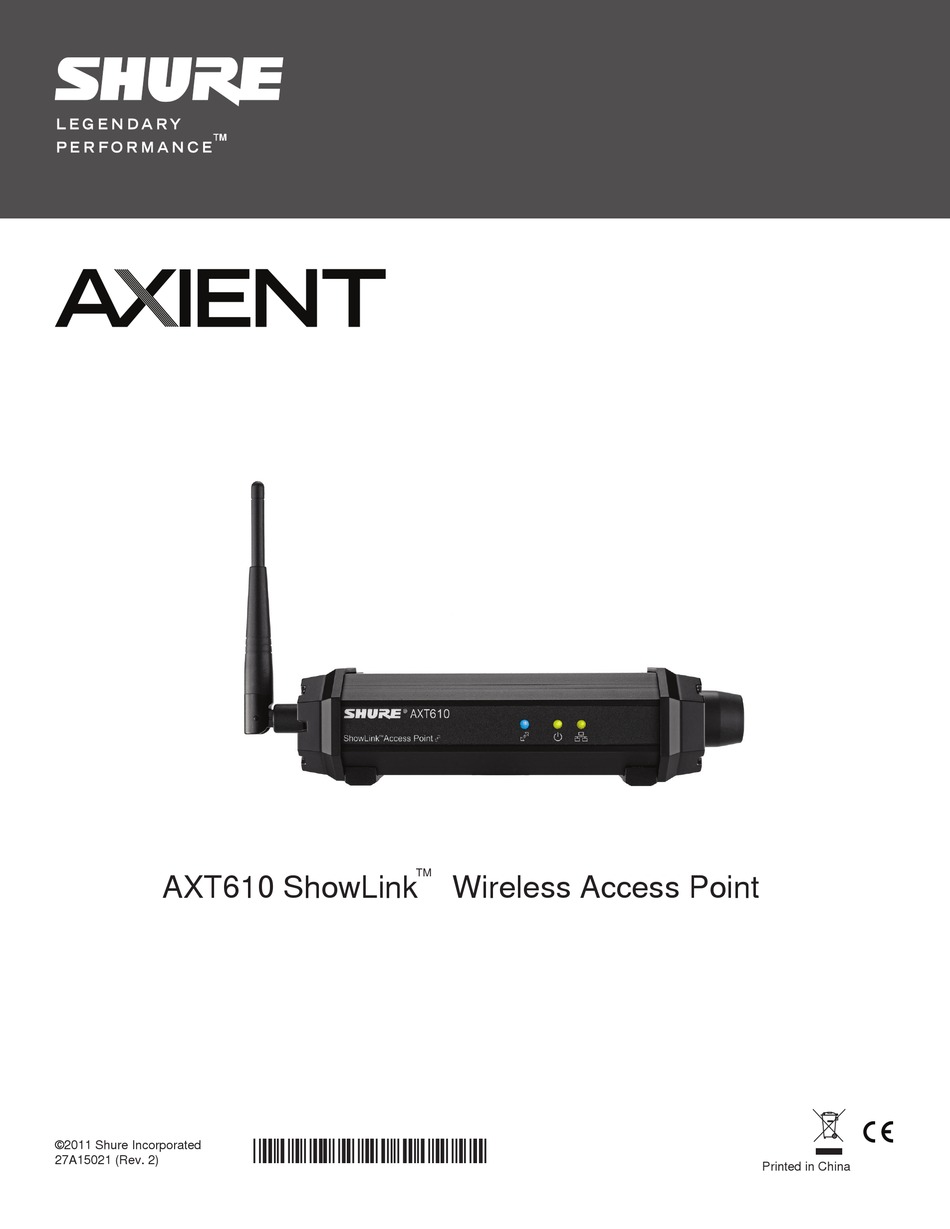

AXT610 ShowLink
Wireless Access Point
TM
©2011 Shure Incorporated
*27A15021*
27A15021 (Rev. 2)
Printed in China

Advertisement

loading

Related Manuals for Shure Axient AXT610 ShowLink

Summary of Contents for Shure Axient AXT610 ShowLink

  • Page 1 AXT610 ShowLink Wireless Access Point ©2011 Shure Incorporated *27A15021* 27A15021 (Rev. 2) Printed in China...

  • Page 2: Included Components

    AXT610 ShowLink Access Point The AXT610 ShowLink™ access point enables real-time remote control of the Axient™ transmitters. The access point allows comprehensive management of transmitter pa- rameters from the receiver or Wireless Workbench 6 using 2.4 GHz wireless network communication. All parameter changes occur without interruption to the performer.

  • Page 3: Transmitter Control

    The access point is powered through Power Over Ethernet (PoE) enabled network ports. If PoE is not available, an external power supply may be used. Power Over Ethernet The Shure Ethernet switch and Axient rack components offer network ports with Power over Ethernet (PoE). The network port powers the access point as long as the host component is powered on.

  • Page 4: Reset Option

    Networking Networking the access point using a Shure AXT620 Ethernet switch or a DHCP-enabled router automatically assigns an IP address, simplifying network setup. The network connection allows the access point to share data with networked components and enables wireless control of the transmitters. To manually assign an IP address to the access point, use Wireless Workbench 6.

  • Page 5: Antenna Connection

    Specifications- AXT610 Wireless Access Point Axient System Antenna Type Omnidirectional 2.4 GHz Capacity 16 Axient transmitters Mounting Type WA371 Mic Clip or 1/4-20 thread mount Operating Temperature Range -18°C (0°F) to 63°C (145°F) Storage Temperature Range -29°C (-20°F) to 74°C (165°F) Dimensions 186 mm x 101 mm x 46 mm (7.34 in.
  • Page 6 Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifica- tions not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency.
  • Page 7 Europe, Middle East, Africa: Shure Europe GmbH Jakob-Dieffenbacher-Str. 12, 75031 Eppingen, Germany Phone: 49-7262-92490 Fax: 49-7262-9249114 Email: info@shure.de PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat 2011 Shure Incorporated I.16.GSI31.00501.0211...
