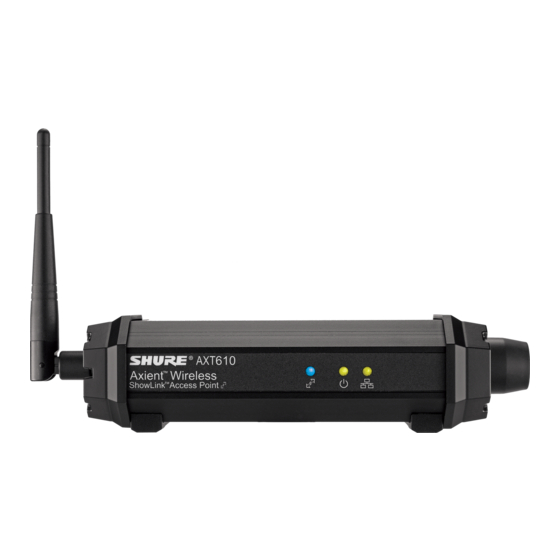

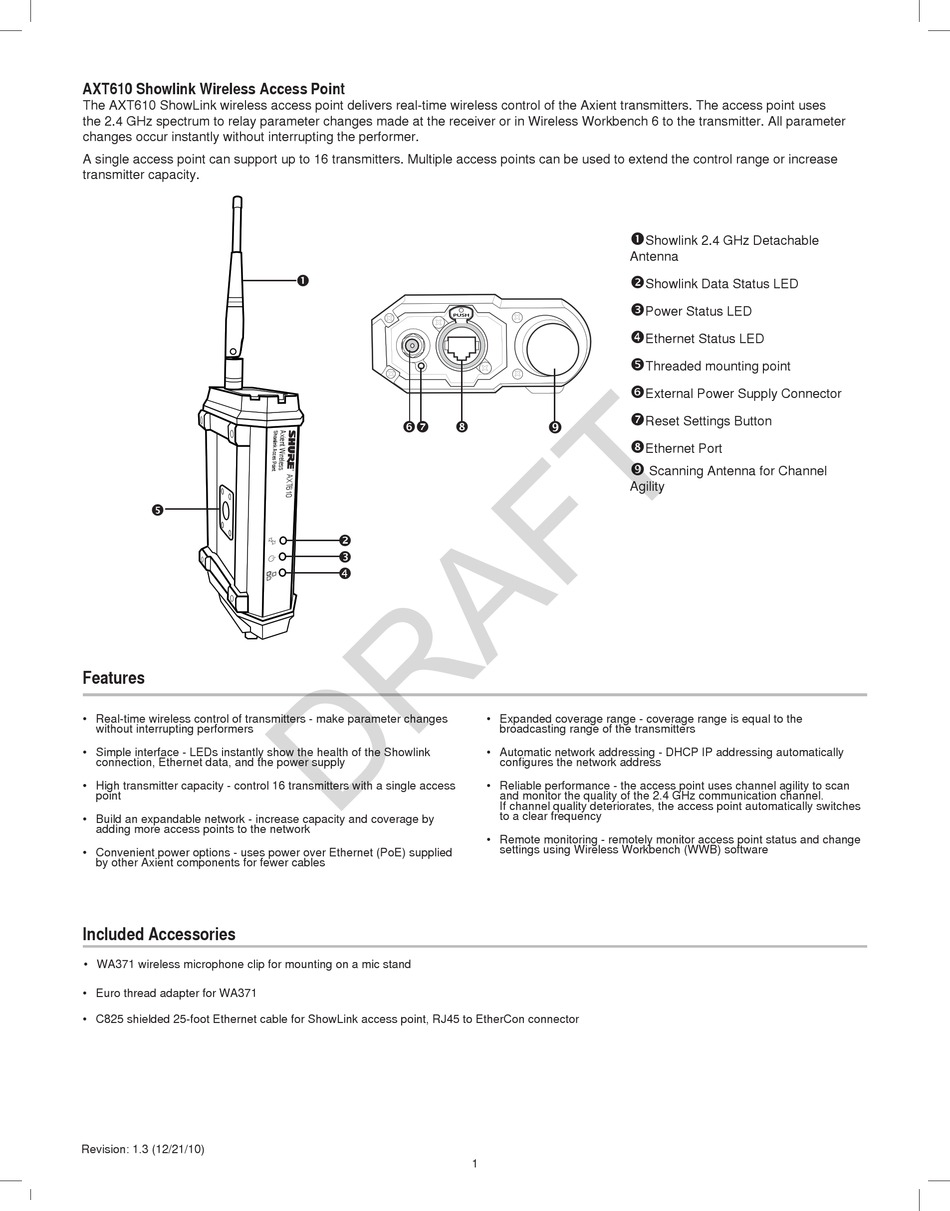

AXT610 Showlink Wireless Access Point
The AXT610 ShowLink wireless access point delivers real-time wireless control of the Axient transmitters. The access point uses
the 2.4 GHz spectrum to relay parameter changes made at the receiver or in Wireless Workbench 6 to the transmitter. All parameter
changes occur instantly without interrupting the performer.
A single access point can support up to 16 transmitters. Multiple access points can be used to extend the control range or increase
transmitter capacity.
Features
• Real-time wireless control of transmitters - make parameter changes
without interrupting performers
• Simple interface - LEDs instantly show the health of the Showlink
connection, Ethernet data, and the power supply
• High transmitter capacity - control 16 transmitters with a single access
point
• Build an expandable network - increase capacity and coverage by
adding more access points to the network
• Convenient power options - uses power over Ethernet (PoE) supplied
by other Axient components for fewer cables

Included Accessories

• WA371 wireless microphone clip for mounting on a mic stand
• Euro thread adapter for WA371
• C825 shielded 25-foot Ethernet cable for ShowLink access point, RJ45 to EtherCon connector
Revision: 1.3 (12/21/10)
PUSH
 
1
Showlink 2.4 GHz Detachable
Antenna
Showlink Data Status LED
Power Status LED
Ethernet Status LED
Threaded mounting point
External Power Supply Connector
Reset Settings Button
Ethernet Port
Scanning Antenna for Channel
Agility
• Expanded coverage range - coverage range is equal to the
broadcasting range of the transmitters
• Automatic network addressing - DHCP IP addressing automatically
configures the network address
• Reliable performance - the access point uses channel agility to scan
and monitor the quality of the 2.4 GHz communication channel.
If channel quality deteriorates, the access point automatically switches
to a clear frequency
• Remote monitoring - remotely monitor access point status and change
settings using Wireless Workbench (WWB) software

Advertisement

loading

Related Manuals for Shure ShowLink AXT610

Summary of Contents for Shure ShowLink AXT610

  • Page 1: Included Accessories

    AXT610 Showlink Wireless Access Point The AXT610 ShowLink wireless access point delivers real-time wireless control of the Axient transmitters. The access point uses the 2.4 GHz spectrum to relay parameter changes made at the receiver or in Wireless Workbench 6 to the transmitter. All parameter changes occur instantly without interrupting the performer.

  • Page 2: Reset Option

    Networking Networking the access point using a Shure Ethernet switch or a DHCP enabled router automatically assigns an IP address, simplifying network setup. The network connection allows the access point to share data with networked Axient components and enables wireless control of the transmitters.

  • Page 3: Positioning The Access Point

    Positioning the Access Point • Provide a clear line of site between the access point and transmitters: mount the access point on a microphone stand or wall to elevate above crowd level • Position the antenna vertically for optimal performance. The swivel joint on the antenna allows a wide range of positioning to maintain a vertical alignment There are three mounting options: Microphone Stand Mount...

  • Page 4: Specifications

    Specifications Antenna Type Omnidirectional Access Point Capacity 16 transmitters Modulation Type OQPSK Channel Width 5 MHz Mounting Type WA371 Mic Clip Operating Temperature Range -18°C (0°F) to 63°C (145°F) Storage Temperature Range -29°C (-20°F) to 74°C (165°F) Dimensions 186 mm x 101 mm x 46 mm (7.34in.3.960in.1.825in. Weight 476.3 g (16.8 oz.) (without antenna ) Housing...

  • Page 5: Information To User

    AXT610: Certified under FCC Part 15 (FCC ID: DD4AXT610). Certified by IC in Canada under RSS-210 (IC: 616A-AXT610). Transmitters must be installed to provide a minimum separation distance of 20 cm from all persons. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
