JA460/JA580 ASSEMBLY PROCEDURES
Tools Required: Knife or scissors, 7/16 (11mm) wrench, 11/16" (17 mm) flat or adjustable wrench,
Phillips or #2 Robertson (square) screwdriver.

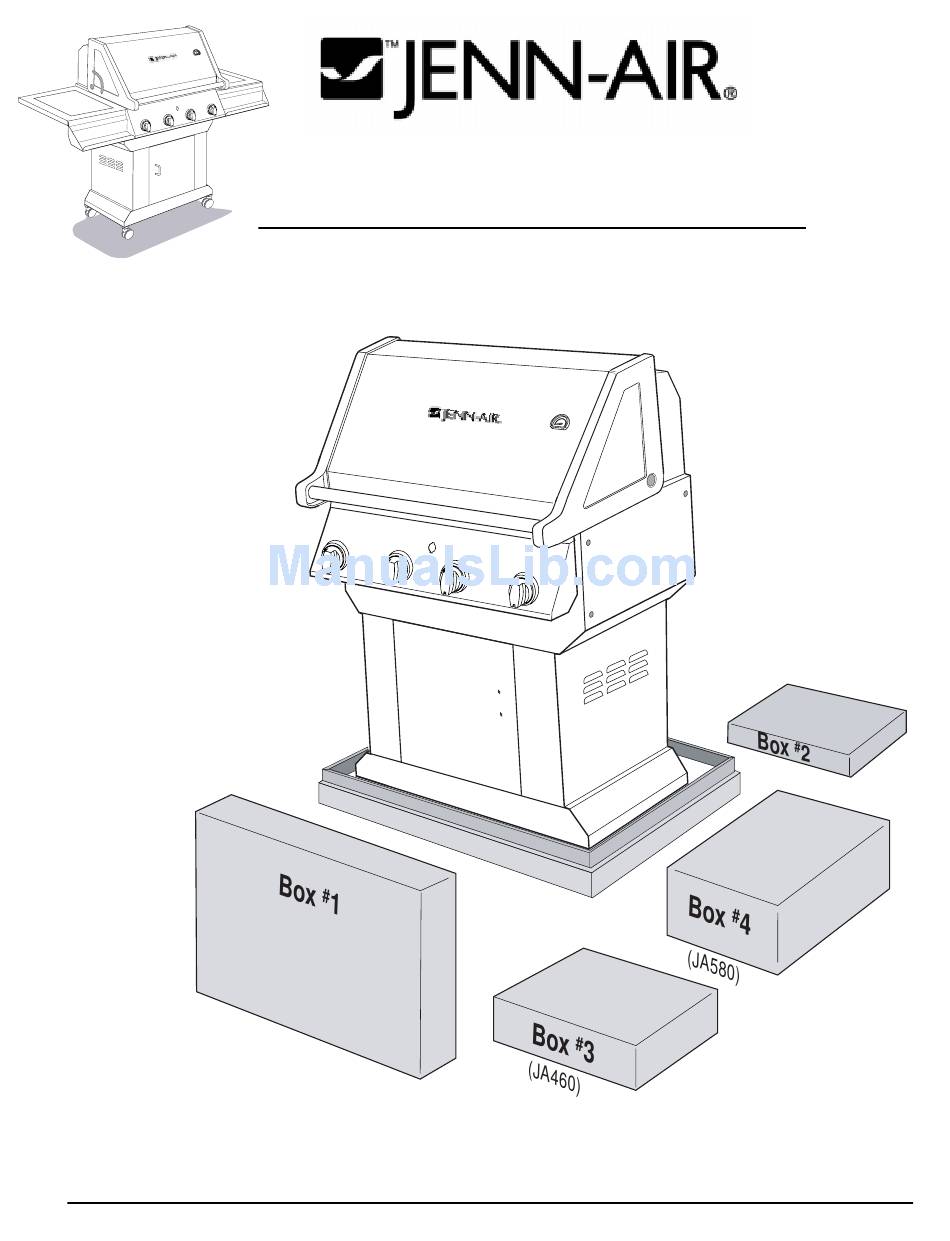

Step 1: Unpack carton
Cut the strapping on the package, then lift off the carton cap. Remove the sleeve by lifting it straight
over the top of the Barbecue. Remove and unpack the enclosed parts boxes. Remove any protective
covering from stainless steel parts.
Page 1
50001508 10/02 Rev.0
Eng

Advertisement

loading

Related Manuals for Jenn-Air JA460

Summary of Contents for Jenn-Air JA460

  • Page 1 JA460/JA580 ASSEMBLY PROCEDURES Tools Required: Knife or scissors, 7/16 (11mm) wrench, 11/16” (17 mm) flat or adjustable wrench, Phillips or #2 Robertson (square) screwdriver. Step 1: Unpack carton Cut the strapping on the package, then lift off the carton cap. Remove the sleeve by lifting it straight over the top of the Barbecue.

  • Page 2: Step 2: Install Casters

    JA460/JA580 ASSEMBLY Step 2: Install Casters Materials Required: (4) casters. Alternately prop up each end of the grill with a block of wood or other solid item. Position the caster stem to the threaded boss in the corners of the bottom panel, and tighten as far as possible by hand.
  • Page 3 JA460/JA580 ASSEMBLY Step 4: Attach Front and Side shelves Materials Required: (2) Side Shelves, (1) Left and (1) Right Front Shelf, (2) shelf inserts, (6) #10 x 1/2” bolts, (6) #10 locknuts, (Fig. 4a). Hook the left and right front shelves over the corresponding front shelf supports, push towards the grill base.
  • Page 4 JA460/JA580 ASSEMBLY Step 5: Attach Door Handles and Control Knobs Required: Door Handle(s), Control Knobs (4/5), and bolts. Attach door handle(s) to the front door(s) with bolts provided. Push the Control Knobs onto the valve stems, ensuring the flats in the stems are aligned to those in the knobs.
  • Page 5 JA460/JA580 ASSEMBLY Step 7: Install Internal Components Required: 4 (or 5 for JA580) Sear Plates, 3 (or 4 for JA580) Cooking Grates, Warming Rack. Place the sear plates into the base unit Sear ensuring that the edges with the “finger...
  • Page 6 JA460 ASSEMBLY DRAWING & PARTS LIST ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 50001074 CABINET BOTTOM ASSY–460 50000820 SHELF SUPPORT LEFT 50000974 CABINET END LEFT 50000821 SHELF SUPPORT RIGHT 50000976 DOOR–460 50000984 SHELF FRONT S/S RIGHT 50000978 CABINET END RIGHT...
  • Page 7 JA580 ASSEMBLY DRAWING & PARTS LIST ITEM QTY PART # DESCRIPTION ITEM PART # DESCRIPTION 50001075 CABINET BOTTOM ASSY –580 50000898 FRONT DRAWER ASSEMBLY 50000974 CABINET END LEFT 50000823 GREASE PAN -580 50000978 CABINET END RIGHT 50001328 CONTROL KNOB 50000979 CABINET TOP -580 50000804 REGULATOR –LP...
  • Page 8 CFM Harris Systems 3501 W. Howard Street Skokie, IL 60076-4012 USA Phone: (800) 944-8982 • Fax: (847) 676-3759 “Jenn-Air is a trademark of Maytag Corporation and is used under license to Lowe’s Companies, Inc.” 50001508 10/02 Rev.0...
