STAINLESS STEEL LP GAS GRILL

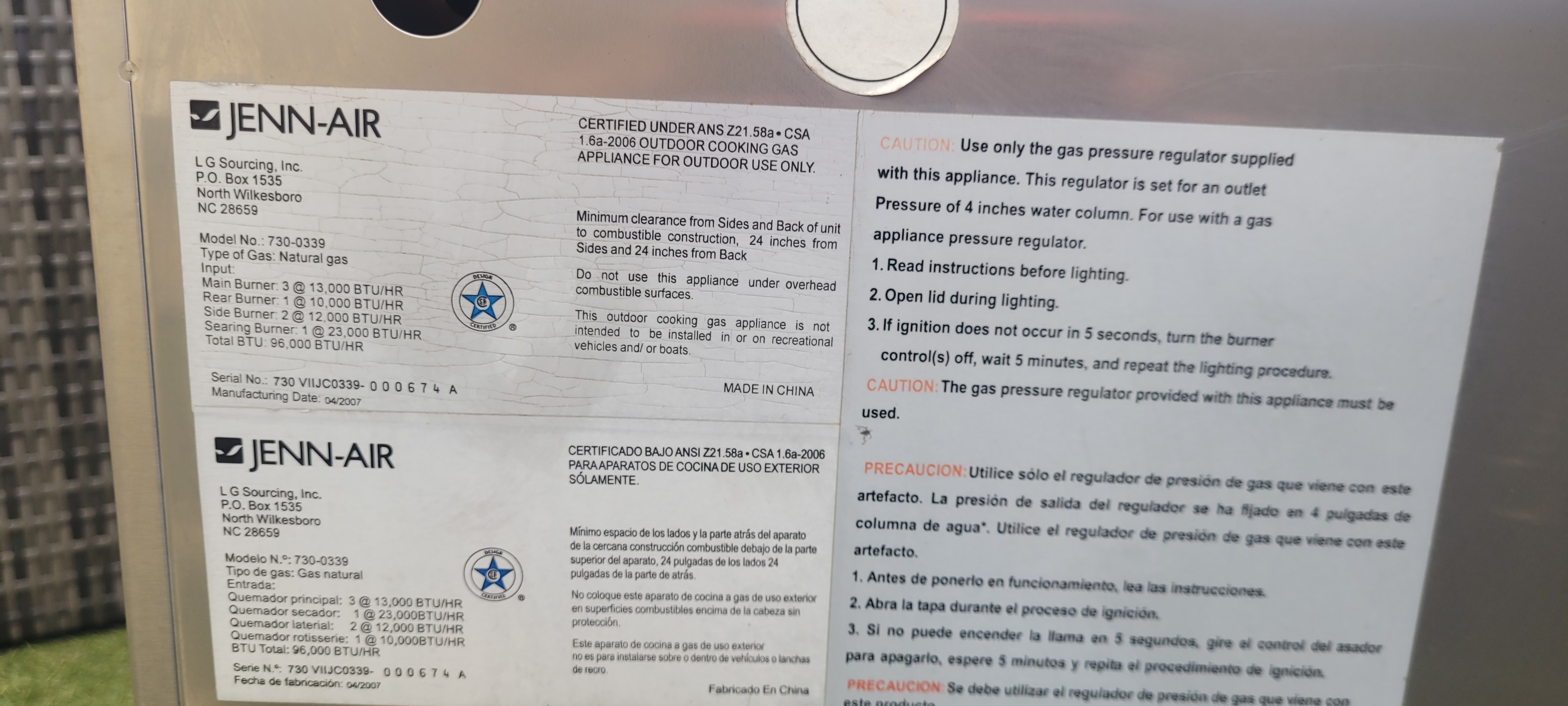

MODEL NO.: 720-0339
Jenn-Air is a Trademark of the Maytag Corporation and is used under license to Lowe's Companies, Incorporated.
FOR OUTDOOR USE ONLY
PLEASE CONTACT 1-800-554-5799 FOR ASSISTANCE
DO NOT RETURN TO PLACE OF PURCHASE
ITEM NO: 33459
400
300
500
200
150
250
200
100
300
600
50
¡ ã
C
350
100
¡ ã
F
700
®

Advertisement

Table of Contents
loading

Summary of Contents for Jenn-Air 720-0339

  • Page 1 STAINLESS STEEL LP GAS GRILL MODEL NO.: 720-0339 ITEM NO: 33459 Jenn-Air is a Trademark of the Maytag Corporation and is used under license to Lowe’s Companies, Incorporated. ® ¡ ã ¡ ã FOR OUTDOOR USE ONLY PLEASE CONTACT 1-800-554-5799 FOR ASSISTANCE...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION ONE SECTION FIVE Safety Instructions ………………………………….. Exploded View ………………………………….. Placement of the Grill ……………………………..Parts List ………………………………………… 23-24 SECTION TWO SECTION SIX Pie Cart Assembly ………………………………….. Grilling Hints …………………………………….. Side Burner Hose Quick-Connect ………………... Grill Cooking Chart ……………………………… 25-27 Battery Assembly …………………………………...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS WARNING WARNING Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section of this manual. WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death. WARNING Spiders and insects can nest inside the burners of CAUTION...
  • Page 4 SAFETY INSTRUCTIONS WARNING WARNING Do not use the grill if the odor of gas is Failure to properly place the burner over the present. Contact customer service at 1-800- orifice could cause a fire to occur behind and 554-5799. beneath the valve panel, thereby damaging the grill and making it unsafe to operate.
  • Page 5 SAFETY INSTRUCTIONS USING THE SIDE BURNER WARNING Inspect the gas supply hose prior to turning on Do not attempt to light the grill if gas odor is the gas. If there is evidence of cuts, wear or present. Contact customer service at 1-800-554- abrasion, it must be replaced prior to use.
  • Page 6 SAFETY INSTRUCTIONS WARNING The grill is not intended to be installed in or on Do not try lighting this appliance without first reading recreational vehicles and/or boats. the “LIGHTING INSTRUCTIONS” section of this manual. Children should not be left alone or unattended in an area where the grill is being used.
  • Page 7: Placement Of The Grill

    Do not use briquettes of any kind in the grill. Clean the grill with caution. To avoid steam burns, The 720-0339 liquid propane gas grill is designed do not use a wet sponge or cloth to clean the grill for optimum performance without the use of while it is hot.
  • Page 8: Pie Cart Assembly

    PIE CART ASSEMBLY Estimated Assembly Time: 20 minutes Required Tools: Phillips Screwdriver (not included) Step1: Unscrew the back panel from the pie cart, and then remove the back panel. (Fig. 1) Fig. 1 3 00 1 00 7 00 8 00 Step 2: Loosen the side panel top two screws a quarter of the way out.
  • Page 9 Step 4: Re-tighten the top screws. 3 00 5 00 2 00 60 0 1 00 7 00 Apply the screws and the washers Fig. 4 into the bottom part of the side panel. (Fig. 4) 40 0 8 00 70 0 Step 5: Attach the hose from main burner manifold thru the rubber hole...
  • Page 10: Side Burner Hose Quick-Connect

    SIDE BURNER HOSE QUICK-CONNECT 1. The side burner hose connects the side burner manifold directly to the main grill manifold. The side burner hose comes from the factory connected to the main grill manifold. 2. To connect the hose to the side burner manifold, push the hose through the hole in the side panel of the main grill cart, through the “pie”...
  • Page 11: Battery Assembly

    BATTERY ASSEMBLY Unscrew the ignition button housing by turning counterclockwise. 2. Insert the battery into the housing with the positive (+) terminal facing outward. 3. Replace the ignition button housing after the battery has been installed.
  • Page 12: Liquid Propane Cylinder Retention System

    LIQUID PROPANE CYLINDER RETENTION SYSTEM 1. Set the liquid propane gas cylinder into the slide-out tray using the gas cylinder retention screw. Turn the retention screw clockwise to secure the gas cylinder. 2. Make sure tank is level with bottom panel for proper vapor withdrawal. Retention Screw...
  • Page 13: Slide-Out Tray Locking System & Propane

    SLIDE-OUT TRAY LOCKING SYSTEM 1. To lock and unlock the liquid propane gas cylinder tray, press the gas cylinder tray’s top button to lock (Figure A). Press the side button to unlock (Figure B). 5 00 PROPANE REGULATOR HOOK-UP 1. Attach the regulator to the propane cylinder by turning the regulator handle clockwise. 2.
  • Page 14: Gas Hook Up

    Remove plastic valve cover from the liquid propane cylinder. Make sure the grill gas hoses do not Total gas consumption (per hour) of the 720-0339 come in contact with the grease tray or grill firebox liquid propane gas grill with all burners set on “HI”: when the liquid propane cylinder is pushed into the cart.
  • Page 15: Leak Testing

    2. Turn off the tank valve by turning the control 4. Place dust cap on cylinder valve outlet whenever knob clockwise until it stops. the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve.
  • Page 16: Installer Final Check

    INSTALLER FINAL CHECK The unit has been tested and is free of leaks. Specified clearance maintained 24 inches from combustible materials/construction. The gas supply shut off valve has been located. All internal packaging has been removed. All burners are factory installed. The hose and regulator are properly connected.
  • Page 17: Operating Instructions

    OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND ROTISSERIE Each main burner is rated at 13,000 BTU/Hr. The main WARNING grill burners encompass the entire cooking area and are The rotisserie motor is equipped with a plug and should side ported to minimize blockage from falling grease and be plugged directly into a properly grounded receptacle in debris.
  • Page 18: Lighting Instructions

    LIGHTING INSTRUCTIONS Yellow flames indicate insufficient air. Noisy flames BEFORE LIGHTING… or flames that lift away from the burner indicate too Inspect the gas supply hose prior to turning on the much air (See the “GAS FLOW CHECK” section on gas.
  • Page 19: Lighting Illustrations

    LIGHTING ILLUSTRATIONS MAIN & SIDE BURNER LIGHTING ROTISSERIE BURNER & SEAR BURNER LIGHTING 1. Open the top cover or lid. 1. Push and turn rear burner knob slowly to “IGNITE / ON” setting, hold in until the burner is lit up, continue to press and hold for 15 seconds and release.
  • Page 20: To Match Light The Grill

    TO MATCH LIGHT THE GRILL If the burner will not light after several attempts using the control knobs, the burner may be lit with a match. 1. If you have already attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate.
  • Page 21: Using The Side Burner

    USING THE SIDE BURNER Inspect the gas supply hose prior to turning on the gas. If there is evidence of cuts, wear or abrasion, it 4. If the smell of gas is detected and the igniter is must be replaced prior to use. Do not use the side not functioning, immediately turn the control burner if gas odor is present.
  • Page 22: Care And Maintenance Of Grill

    CARE & MAINTENANCE OF THE GRILL STAINLESS STEE GRILL BURNERS Grease specks can gather and bake onto the Extreme care should be taken when moving a surfaces of the stainless steel, giving the burner. It must be correctly centered on the orifice appearance of rust.
  • Page 23: Troubleshooting

    TROUBLESHOOTING WHEN TO LOOK FOR SPIDERS You should inspect the burners at least twice a WARNING year or immediately after any of the following Spiders and insects can nest inside the burners conditions occur: of the grill and disrupt gas flow. This very dangerous condition could cause a fire behind 1.
  • Page 24: Exploded View

    EXPLODED VIEW MODEL 720-0339 39( A) 39( C ) 39( B) 89( A) 104( A) 104( B) 89( B)
  • Page 25: Parts List

    PARTS LIST Model No. 720-0339 REF# DESCRIPTION REF# DESCRIPTION Ice Box Handle Sear Igniter Wire Ice box Lid Main Igniter Wire (A. B. C.) Ice Box Rotisserie Burner Condiment Container Lid Rotisserie burner Igniter Wire Condiment Container Rotisserie Burner Gas Collector...
  • Page 26 REF# DESCRIPTION REF# DESCRIPTION Door Hinge Bracket, Top (Side Rotisserie Burner Thermocouple Burner Cart) Rotisserie Burner Thermocouple Tank Tray Slide Bracket Bracket Main Burner Bowl Assembly Side Burner Cart Front Door Rotisserie Burner Flex Gas Side Burner Cart Door Handle Door Hinge Bracket, Bottom (Side Main Manifold Burner Cart)
  • Page 27: Grilling Hints

    GRILLING HINTS This Jenn-Air grill has an infrared side burner – It is recommended that meat be defrosted overnight commonly referred to as a “searing” burner. This in the refrigerator as opposed to a microwave. This type of burner produces extreme heat that can be generally yields a juicier cut of meat.
  • Page 28 French fries Medium 15 to 30 minutes Place in aluminum foil pan. Grill, stirring occasionally. FOOD WEIGHT FLAME APPROXIMATE SPECIAL OR THICKNESS SIZE TIME INSTRUCTIONS AND TIPS MEATS BEEF Hamburgers 1/2 to 3/4 inch Medium 10 to 18 minutes Grill, turning once when juices rise to the surface.
  • Page 29 POULTRY Broiler/fryer 2 to 3 pounds Low or 1 to 1-1/2 hours Place skin side up. Grill, turning and brushing frequently with melted butter, margarine, oil or marinade. FOOD WEIGHT FLAME APPROXIMATE SPECIAL OR THICKNESS SIZE TIME INSTRUCTIONS AND TIPS Breasts Medium 30 to 45 minutes Marinate with Italian dressing...
  • Page 30: Grill Recipe Suggestions

    GRILL RECIPES BBQ SALMON Half-hour before cooking, turn the 1tsp. Worcestershire sauce 2 large salmon steaks burner to the grill on high. Drain 1tsp. Dry mustard 2 tbs. oil seafood-reserving marinade. On each ¼ tsp. Thyme, crushed Salt & pepper of twelve 10”...
  • Page 31 heat tortillas on grill. Slice meat across CHICKEN TANDOORI STYLE 2 oz. lemon juice grain in thin slices. Place on hot platter. 8 large chicken thighs or drumsticks 10 lbs. pork roast Squeeze lemon juice over. Wrap meat and 1 c. plain nonfat yogurt any of the following toppings in tortillas: ½...
  • Page 32: Limited Warranty

    Our telephone number is 1-800-554-5799, fax number 1-800-598-8829. Please direct all correspondence to: Nexgrill Industries, Inc. 280 Machlin Court, City of Industry, California, 91789, ATTN: Warranty Service Center. *Jenn-Air is a trademark of the Maytag Corporation and is used under license to Lowe’s Company Inc. Printed In China...
