Icom IC-756PRO Service Manual page 21

Hf/50mhz all band transceiver
Hide thumbs Also See for IC-756PRO:
Table of Contents

Advertisement

• RF unit
RF unit

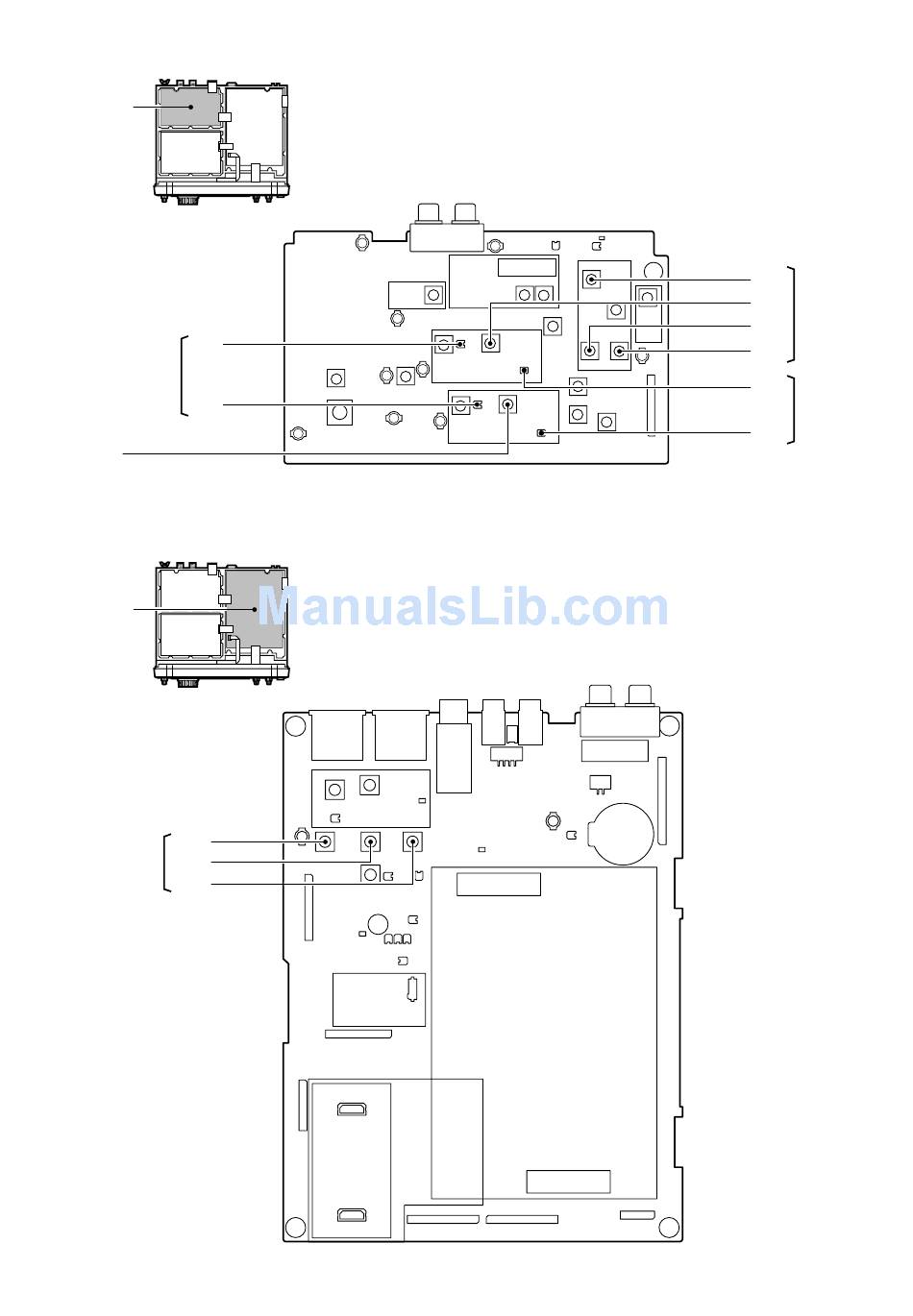

Bottom view of the transceiver
R516
Mixer balance
adjustment
R616
L613
RX peak
adjustment
• MAIN unit
MAIN unit
Bottom view of the transceiver
L111
RX peak
L112
adjustment
L113
4 - 5
L943
L513
RX peak
adjustment
L722
L721
C555
FM distortion
adjustment
C655
