(2) MAIN LOOP PLL
The oscillated signal at one of the main loop VCOs (Q201,
D201, D202), (Q221, D221, D222), (Q251, D251–D254) and
(Q271, D271–D274) is amplified at the buffer amplifiers
(Q301, IC320) and is then applied to the PLL IC (IC381, pin
6). The signal is then divided and detected on phase with the
reference loop output frequency.
The detected signal output from the PLL IC (pin 2) is con-
verted into a DC voltage (lock voltage) at the loop filter and
then fed back to one of the VCO circuits (Q201, D201,
D202), (Q221, D221, D222), (Q251, D251–D254) and
(Q271, D271–D274).
The oscillated signal is amplified at the buffer amplifiers
(Q301, IC320) and then applied to the RF unit as a 1st LO A
signal after being passed through the bandpass filter (L303,
L351–L354, C304–C307, C351–C356, C358–C360).
3-3-3 2ND LO AND REFERENCE OSCILLATOR
CIRCUITS
The reference oscillator (X52, Q51) generates a 32.00056
MHz frequency for the 4 DDS circuits as a system clock and
for the LO output. The oscillated signal is doubled at the
doubler circuit (Q71, Q81) and the 64.0 MHz frequency is
picked up at the double tuned filter (L81, L82). The 64.0
MHz signal is applied to the RF unit as a 2nd LO signal.

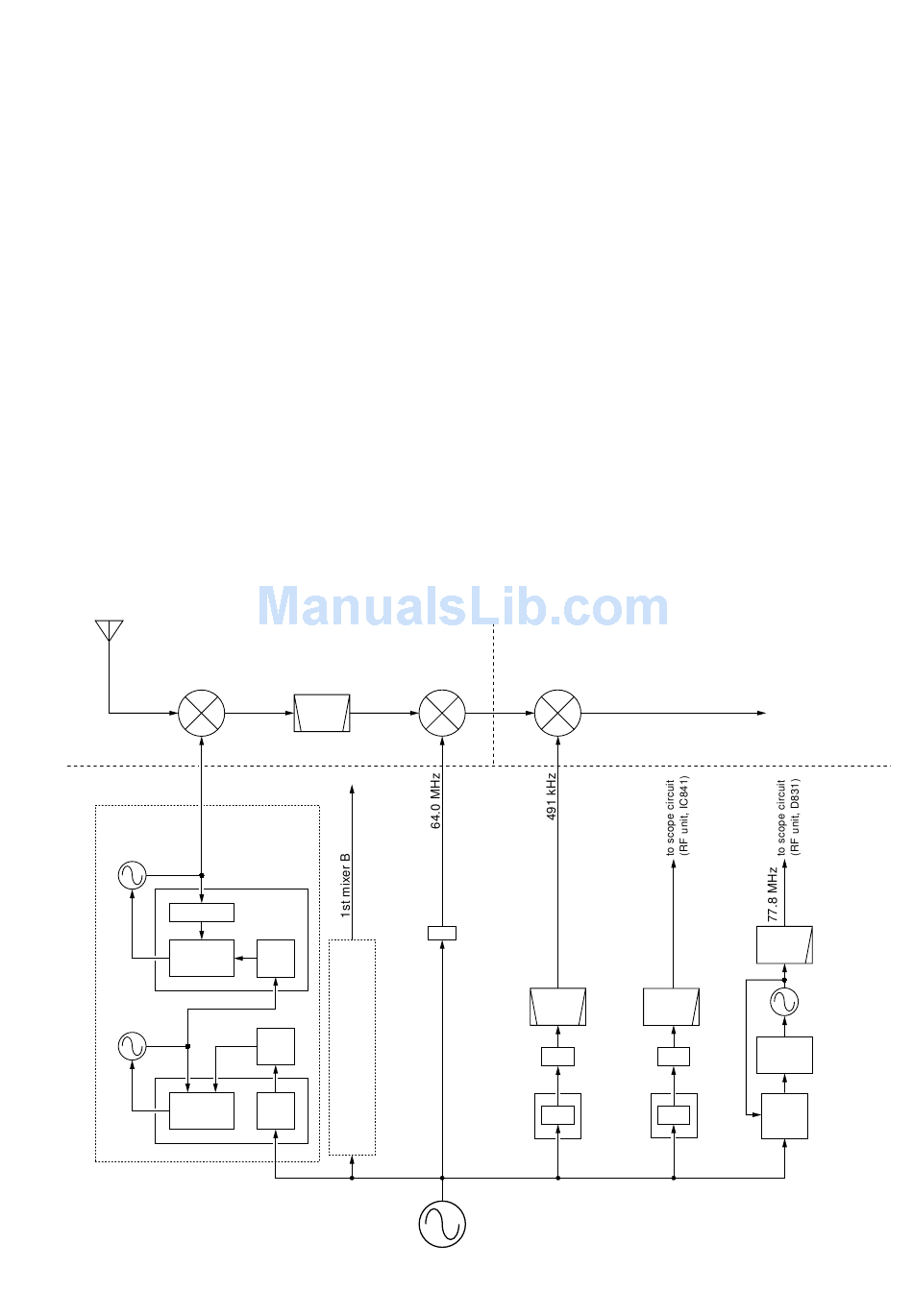

• PLL CIRCUIT
