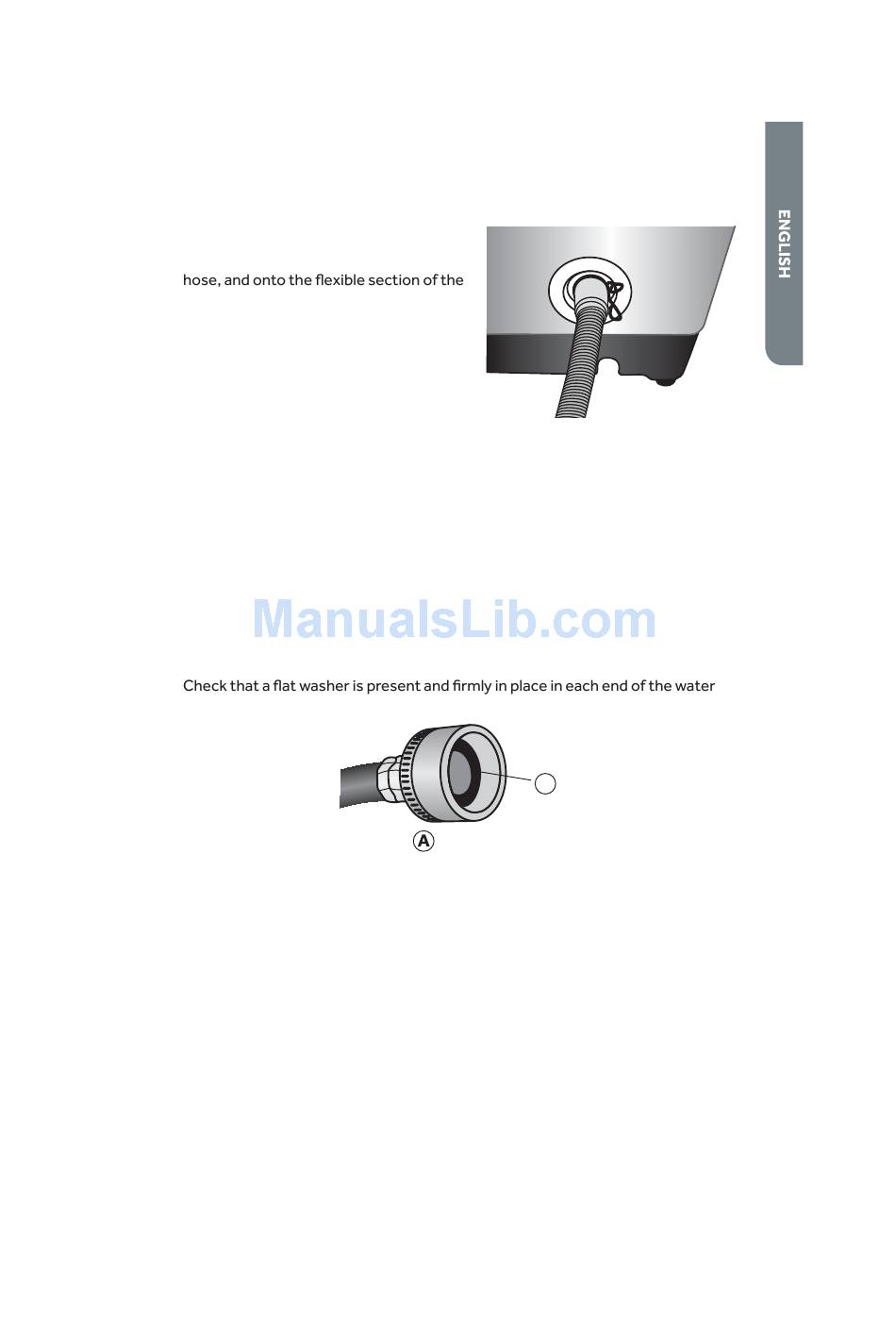

STEP 2 - CONNECT AND SECURE THE DRAIN HOSE

1. Enlarge the opening by squeezing the
ends of the drain hose clamp together.
Slide the clamp over the end of the drain
hose.
2. Fit the end of the drain hose over the
plastic drain port extending from the
washer.
3. Squeeze the ends of the clamp to enlarge
the opening and slide the clamp over the
connection of the drain hose and drain
port. Release the clamp to tighten.
4. Put the drain hose hook end in a drain pipe or laundry tub.
5. Secure the drain hose in place by fastening it to a water hose, the standpipe, or a
leg on the laundry tub. See "Drain System Requirements" for illustrations.

STEP 3 - CONNECT THE WATER HOSES

IMPORTANT: Only use new hoses when installing the washer.
NOTE: Periodically inspect hoses for cracks, cuts, leaks or wear. Replace with new
hoses every 5 years.
NOTE: Hot water needs to be set at a temperature of at least 120ºF - 140ºF. (49ºC-
60ºC) for the soap to dissolve and to avoid soap residue remaining on clothes.
1.
inlet hoses. Flat washers are pre-installed at the factory.
A
Washer
9
