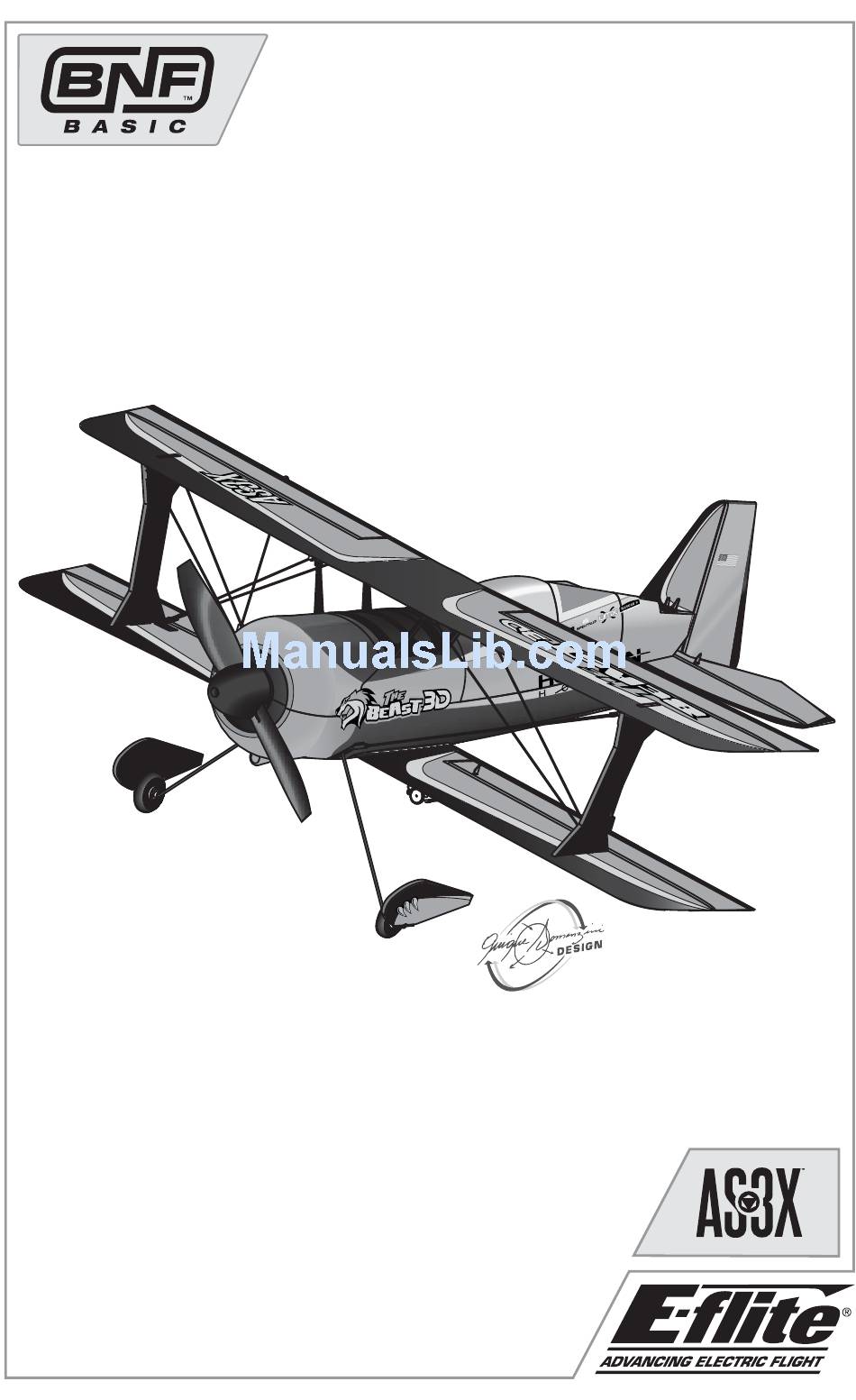

- Page 1 ® BEAST ™ Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Table Of Contents
® Designed by aerobatic world champion Quique Somenzini, the Ultra Micro extreme (UMX) Beast 3D BNF Basic is a thrilling small-scale recreation of one of the most awe-inspiring airplanes ever created. At its ™ heart is the revolutionary AS3X System built in to help provide you with a true 3D experience, the ability to fl... -
Page 4: Prefl Ight Checklist
Prefl ight Checklist 1. Charge fl ight battery. 6. Adjust fl ight controls and transmitter. 2. Install fl ight battery in the aircraft 7. Perform a radio system Range Check. (once it has been fully charged). 8. Find a safe and open area. 3. -
Page 5: Transmitter And Receiver Binding
Spektrum DSM2/DSMX transmitter can bind to the EFLU4864 receiver. Due to the aerobatic capabilities of the UMX Beast 3D, it is highly recommended that you use a transmitter with dual rates. Please visit www.bindnfl y.com for a complete list of compatible transmitters. -
Page 6: Arming The Esc
Arming the ESC Lower throttle and throttle Install fl ight battery and Keep plane immobile trim to lowest settings. connect it to the ESC. on its wheels away from wind for fi ve seconds. Power on the Transmitter Series of tones then wait 5 seconds. -
Page 7: Settings For Control Horns
Settings for Control Horns INTERMEDIATE 3D FLYING The following illustrations show linkage positions chosen for the most balanced aerobatic response. EXTREME 3D FLYING EXTREME Linkage connections on the control horns directly affect aircraft response. Aileron Elevator Rudder CAUTION: Extreme 3D fl ying is for advanced modelers. -
Page 8: Flying Tips And Repairs
Flying Tips and Repairs Flying Failure to lower the throttle stick and trim to the lowest While the Beast 3D may be fl own indoors in an open possible positions during a space such as a gymnasium, we recommend fl ying crash could result in damage your Beast 3D outside in no greater than moderate to the ESC in the receiver... -
Page 9: Additional Safety Precautions And Warnings
Additional Safety Precautions and Warnings As the user of this product, you are solely This model is controlled by a radio signal subject responsible for operating in a manner that does to interference from many sources outside your not endanger yourself and others or result in control. -
Page 10: Service Of Power Components
Service of Power Components Disassembly CAUTION: DO NOT handle propeller parts while the fl ight battery is connected. Personal injury could result. Propeller 1. Remove the battery hatch by gripping the front of the hatch, then pulling it up and away from the fuselage. -
Page 11: Troubleshooting Guide
Troubleshooting Guide AS3X Problem Possible Cause Solution Control surfaces are Control surfaces may not have been Center control surfaces mechanically by not at neutral position mechanically centered from factory adjusitng the U-bends on control linkages when transmitter Aircraft was moved after the fl ight battery Disconnect fl... -
Page 12: Troubleshooting Guide (Continued)
Troubleshooting Guide (Continued) Problem Possible Cause Solution Control surface does Control surface, control horn, linkage or Replace or repair damaged parts and adjust not move servo damage controls Wire damaged or connections loose Check wires and connections, connect or replace as needed Flight battery charge is low Fully recharge fl... -
Page 13: Warranty And Repair Policy
Warranty and Repair Policy What this Warranty Covers setup or use of the Product has been started, you must Horizon Hobby, Inc. (“Horizon”) warrants to the original contact your local distributor or Horizon directly. This will purchaser that the product purchased (the “Product”) will enable Horizon to better answer your questions and be free from defects in materials and workmanship at the ervice you in the event that you may need any assistance. -
Page 14: Warranty And Service Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2011093005 Product(s): UMX Beast 3D BNF Basic Item Number(s): EFLU4850 Equipment class: The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC:... -
Page 15: Parts Contact Information
Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Wing Set: UMX Tragfl ächenset: UMX Aile: UMX Beast 3D Set ala: UMX Beast 3D EFLU4859 Beast 3D Beast 3D Cabane: UMX Beast Tragfl ächenstreben: Cabane: UMX Beast Cabana: UMX Beast EFLU4064... - Page 16 Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Firewall: UMX Beast Brandschott UMX Support moteur: UMX Ordinata: UMX Beast EFLU4066 Beast Beast Prop Adaptor: Prop Adaptor: Adaptateur d’hélice: Adattatore elica: EFLU4067 UMX Beast UMX Beast UMX Beast UMX Beast Celectra 2S 7.4V DC Celectra 2S 7.4V DC...
-
Page 17: Optional Parts And Accessories
– Optional Parts and Accessories – – Optionale Bauteile und Zubehörteile – – Piéces optionnelles et accessoires – – Parti opzionali e accessori – Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice Charger Plug Adapter: Ladekabel Adapter Prise d’adaptation Adattatore per la EFLA700UM... - Page 18 Part # • Nummer Description Beschreibung Description Descrizione Numéro • Codice DX7s DSMX Spektrum DX7s Emetteur DX7s DSMX DX7s DSMX SPM7800 7-Channel Transmitter 7 Kanal Sender 7 voies Mode 2 Trasmettitore 7 canali Mode 2 Mode 2 DX7s DSMX Spektrum DX7s Emetteur DX7s DSMX DX7s DSMX SPM7800EU...
- Page 19 © 2011 Horizon Hobby, Inc. E-fl ite, AS3X, UMX, JR, Celectra, DSM2, DSMX and ModelMatch are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Beast ® and its design are either registered trademarks or trademarks of Kevin Kimball, ®...
